1129316 RIM316 Refrigerator Ice Maker For Kenmore

Replacement ice maker used for some Amana, Estate, Kenmore, KitchenAid, Maytag, Roper, and Whirlpool refrigerator models.

Directly Replaces: 1129316, W10190943, 1018, 1108106, 1108154, 1114209, 1118766, 1127599, 1129302, 1129303, 1129306, 1129316VP, 1129317, 1129318, 2155184, 2155185, 2155186, 2155187, 2155188, 2155304, 2295, 8090, 8239, 8440, 8550, 944804, AH317560, EA317560, ECK-MF83, ECK-MF831, ECK-MF86, ECK-MF87, ECK-MF90, ECKMF-83, ECKMF-90, ECKMF83, ECKMF831, ECKMF86, ECKMF87, ECKMF90, IMKIT, KIMS8, PS317560, RIM316, W10190958, WPW10190943, 2295, AP3062348, EA317560, PD00027540, PS317560.

Features:

• “Add-On” complete ice maker kit.
• Designed for plastic liner units made between 1984-1993, that have model numbers beginning with the 106 prefix.
• Includes flat style harness plug. Does not have a round style plug included.

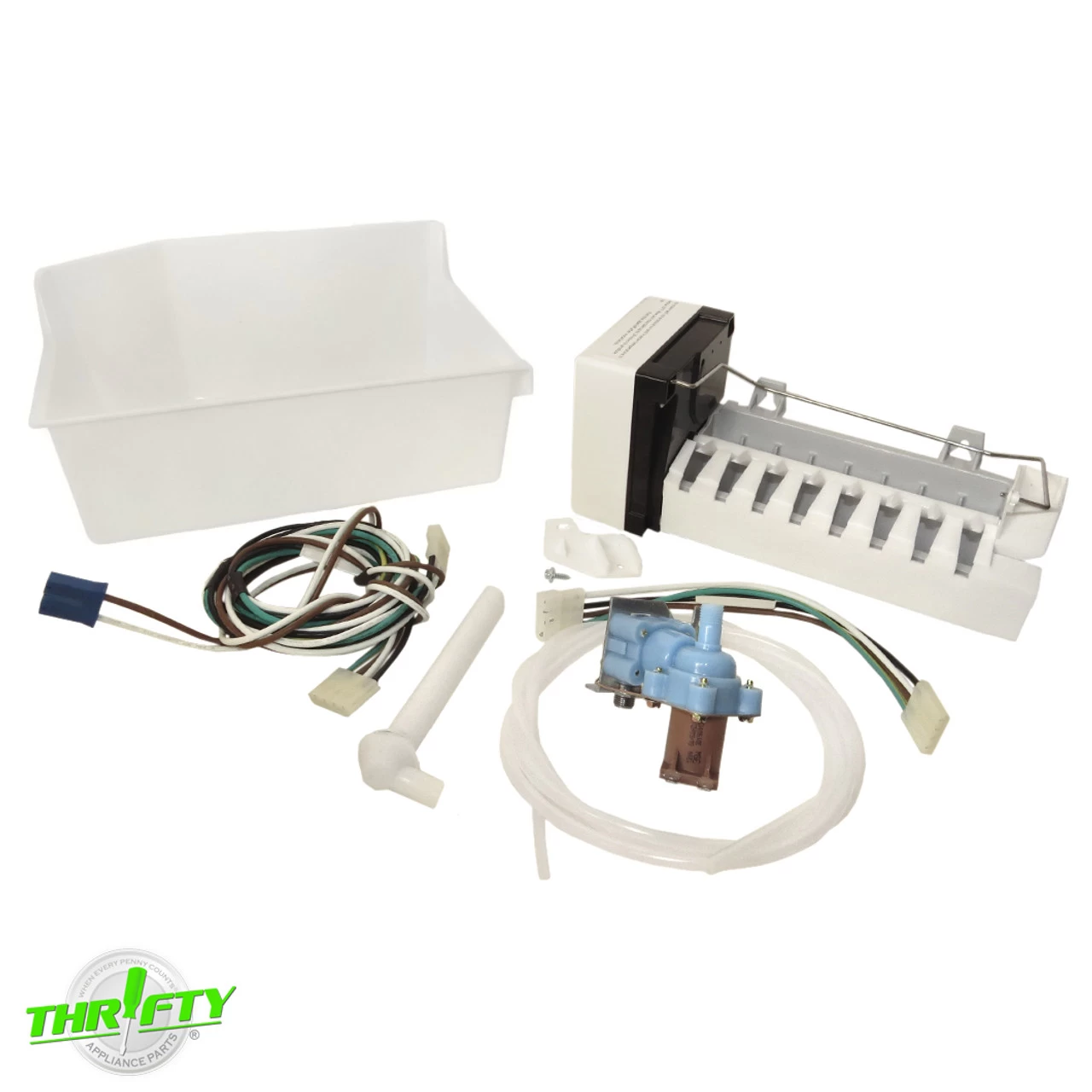

• Includes (1) 8-Cube Ice Maker with Bail Arm, (1) Ice Maker 4-Wire Harness & Plug, (1) Additional Long Wire Harness & Plug Assembly, (1) Fill Tube; (1) Ice Bin, (1) Water Valve with Water Line Tubing, Installation Hardware, Instructions.

Specifications:

• Color: White / Black / Gray.
• Material: Metal / Plastic.
• Finish: Glossy.
• Ice Maker Dimensions: 11-1/4″L x 4-5/8″W x 4-3/4″H.
• Additional Dimensions: Ice bin measures 12-1/8″L x 9″W x 5-1/2″H; 4-wire harness and plugs measure approx. 10-3/4″L; Additional harness assembly measures approx. 84″L; Water valve measures 3-3/4″L x 2-7/8″W x 3-1/8″H; Water line measures 80-1/2″L.
• Water Valve Electrical Specs: 120V, 50/60Hz, 35W.
• Ice Maker Electrical Specs: 115V, 185W, 1.6A, 60Hz.
• View Instructions.
