134196602 131476300 137292700 Dryer Drive Motor With Blower Wheel & Belt For Frigidaire / Kenmore

Replacement drive motor, blower wheel, and belt used for some Crosley, Electrolux, Frigidaire, Kenmore, and White Westinghouse dryer models.

Directly Replaces: 134196602, 134196600, 134196601, 4838828, AP6783327, EAP12584805, PD00049040, PS12584805, 131476300, 1314763, 145746, 145746-A, 473, 5303212513, AP2106979, AH417911, EA417911, EAP417911, PD00000288, PS417911, 137292700, 5303283287, 134163500, 134503900, WE03X29897, WE21M29, WE12M29, WE12X21574, WE120122, WE12M0022, WE12M22, WE12M33, 148271, 1615170, 1381519, 559C197P001, 559C197P003, 559C197P005, 559C197P004, 4PH 2273, 4PH2273, WW02F00028, 1615170, 1381519, AH3408299, AP4565702, AP4324040, EA3408299, EAP3408299, EAP1766009, PD00001050, PD00000115, PS3408299, PS1766009, 4975431, AP7012633, EAP16542496, PD00074201, PS16542496.

Features:

• Motor and belt work together to drive the rotation of the drum; Blower wheel spins on the motor shaft to blow air through the dryer drum and out through the exhaust.

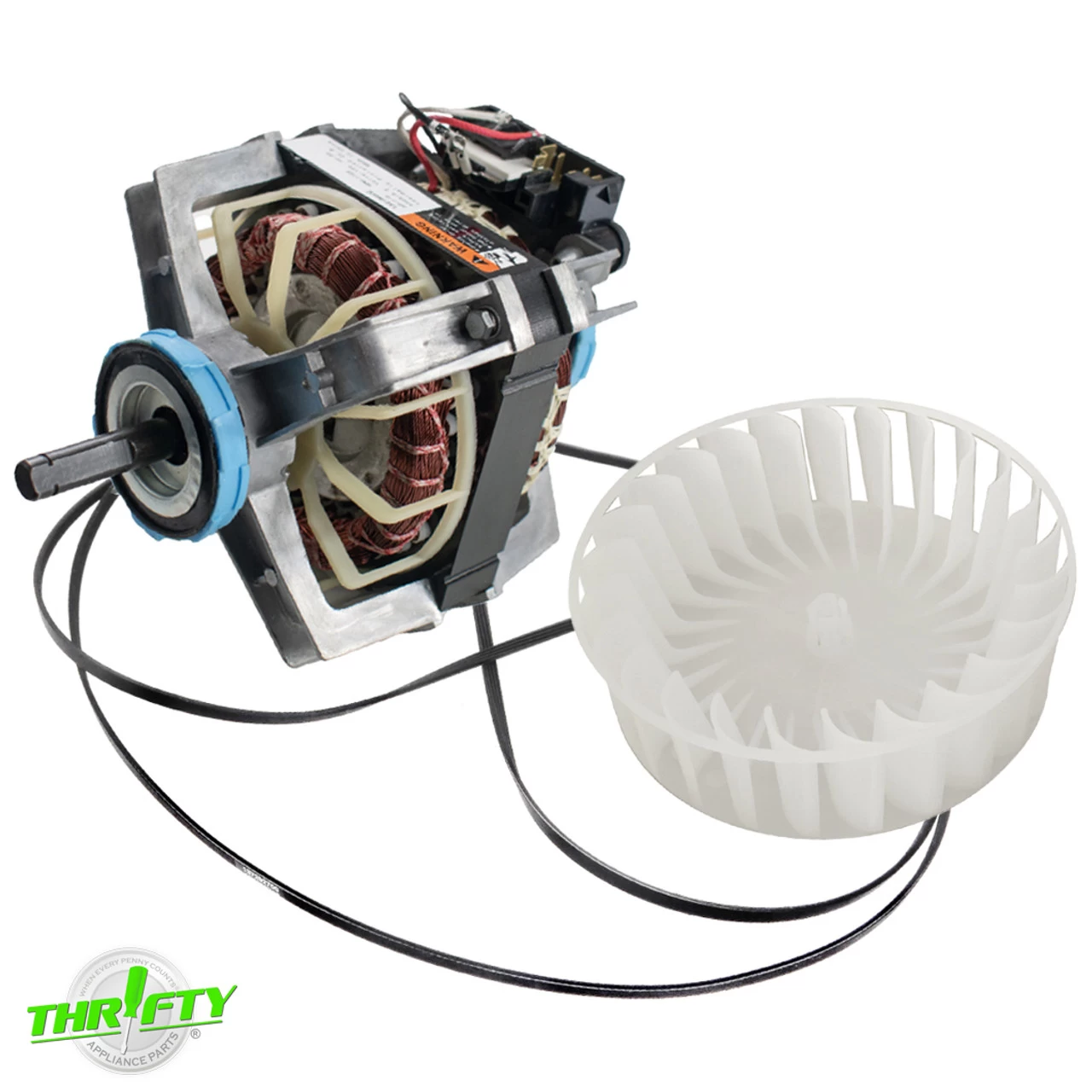

• Includes (1) Drive Motor Assembly, (1) Blower Wheel, (1) 4-Rib Belt.

APN134196602 Motor Specifications:

• Color: Gray / Black / Blue / White.
• Material: Metal / Plastic.
• Electrical Specs: 120V, 60Hz, 6.2A, CL.B, 1725 RPM, 1/3 HP.
• Dimensions: 5-7/8″L x 5-1/8″W x 9-3/4″H.

APNAPN131476300 Blower Wheel Specifications:

• Color: White.
• Material: Plastic.
• Finish: Semi-Gloss.
• Dimensions: 8-1/4″L x 8-1/4″W x 2-1/2″H.
• Other Dimensions: Shaft measures 1/2″ diameter.

APN137292700 Belt Specifications:

• Color: Black.
• Material: Rubber.
• Overall Dimensions: 89-1/2″L x 1/4″W x 1/8″H.
