134515300 131763202 131763302 Washer Boot Seal & Latch Kit For Frigidaire / Kenmore

Replacement door seal and locking switch / strike kit used for some Crosley, Frigidaire, and Kenmore washer models.

Directly Replaces: 131763202, 131763256, 131763255, 1312694, 131269400, 131763200, 131763245, 3626240, PA66-GF25, 08003223, 5301317632, K001317632, K1317630-K938, K1317632, WH10X27534 WH10X10003, WH10X10007, WH10X27194, LP3202, 4547432, 4547033, AH2367737, AH3418879, AP6327625, AP4455026, AP4694680, AP6285657, EA3418879, EAP2367737, PD00038657, PD00070219, PS12343346, PS2367737, PS3418879, PS12364048, 131763302 131763340, 134456602, 134456640, B00E0CW3HC, 1564512, AH2378364, AP4508273, EA2378364, EAP2378364, PD00000391, PS2378364, 134515300, 134365200, 134551400, 134740900, 134741400, 5304450475, 1156861, AH1148773, AP3869103, EA1148773, EAP1148773, PD00000224, P134551400, PS1148773.

Features:

• Boot seal prevents leaks by forming a seal between the wash tub and the door; Switch and strike work together to keep the door closed while the unit is in use.
• Used on front loading washers.
• Switch as 8 terminals.

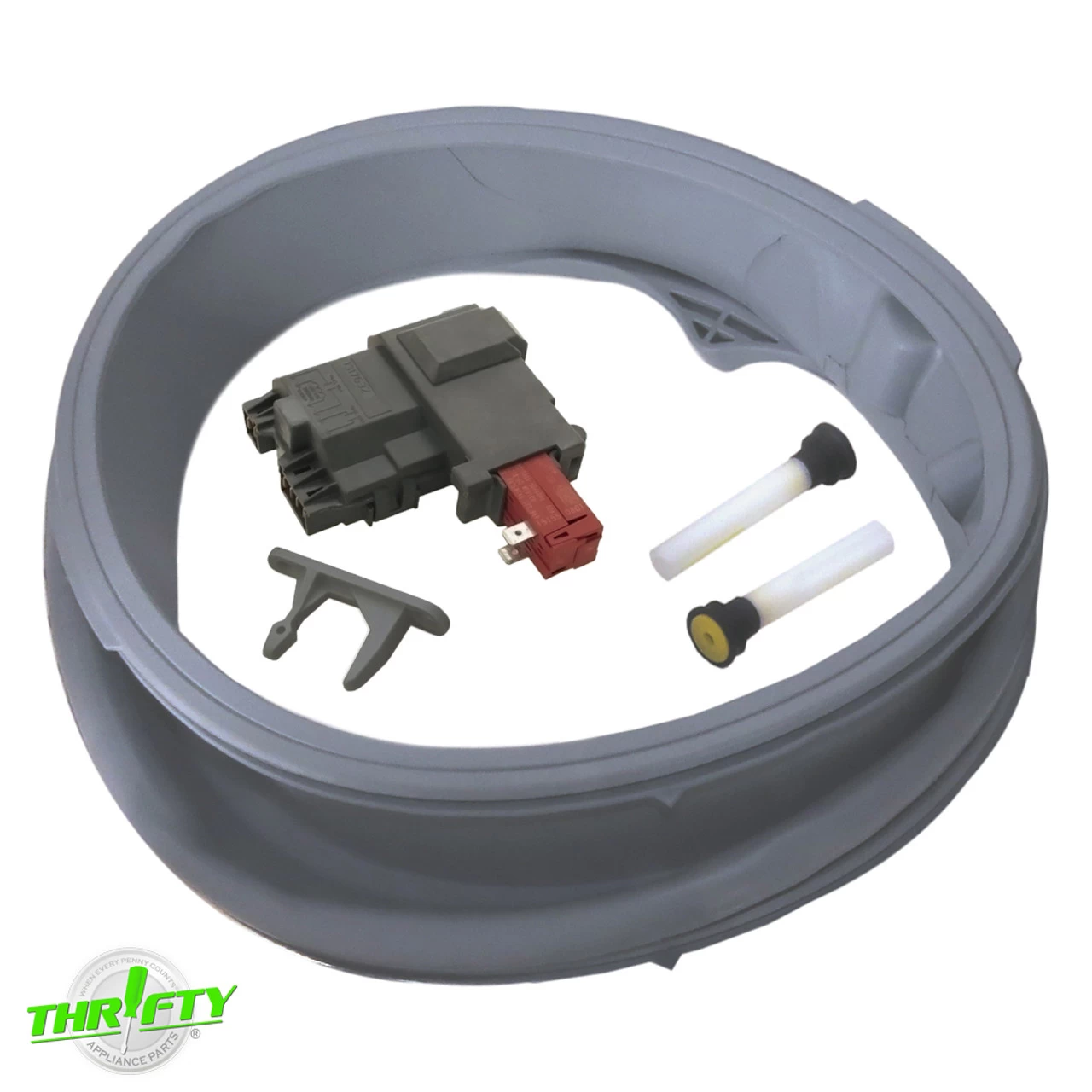

• Includes (1) Boot Seal, (2) Spacers, Instructions, (1) Front Loading Door Lock and Switch Assembly, (1) Door Strike.

APN131763202 Door Lock/Latch Specifications:

• Color: Gray / Red.
• Material: Plastic / Metal.
• Finish: Matte.
• Electrical Specs: 120VAC, 50/60Hz.
• Dimensions: 4-1/2″L x 3-7/8″W x 1-1/2″H.

APN131763302 Door Strike Specifications:

• Color: Gray.
• Material: Plastic.
• Finish: Matte.
• Dimensions: 1-1/4″L x 9/16″W x 2-9/16″H.
• Additional Dimensions: Approx. 2″ between mounting holes (center to center).

APN134515300 Boot Seal Specifications:

• Color: Gray.
• Material: Rubber.
• Finish: Matte.
• Dimensions: 18-1/2″L x 5″W x 18-1/2″H.
• Additional Dimensions: Spacers measure approx. 4 3/4″L.
• View Instructions.
