241798231 242252702 Refrigerator Ice Maker & Water Valve For Electrolux / Frigidaire

Replacement ice maker and water valve used for some Crosley, Electrolux, Frigidaire, Gibson, Kenmore, and Westinghouse refrigerator models.

Directly Replaces: 241798231, 241798224, 5304456672, 241798201, 5304456671, 241642501, 241642503A, 241642511, 241798209, 241798211, 241798220, 3206327, 3206329, 5303320545, 5304445222, 5304456669, 75304445222, 75304456669, 75304456671, 75304456672, 4591526, AP6332951, EAP12364147, PD00044512, PS12085911, PS12364147, 242252702, 240321801, 240505101, 240505102, 240508101, 240508102, 240531101, 241734301, 241734302, 7241734301, WV2702, 2692163, AP5671757, EAP7784018, PD00000153, PS7784018.

Features:

• 8 cube, heated mold ice maker and female 5 pin connector.
• New style water valve with quick connect fittings may may differ in appearance from original, but will replace older style screw on fittings.
• Water valve uses (4) outlets.

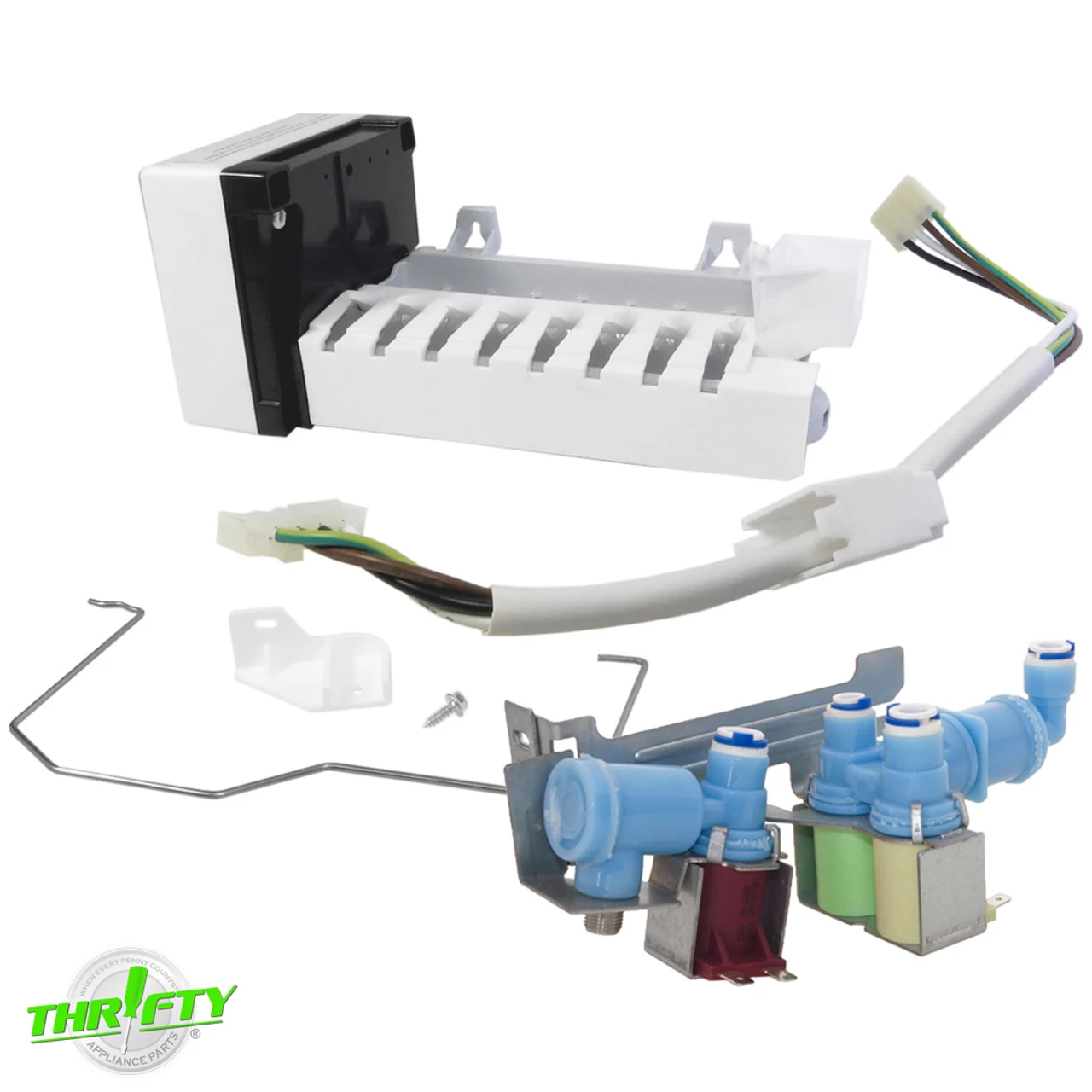

• Includes: (1) 8-Cube Ice Maker, (1) 4-Wire Harness, (1) Bail Arm, Installation Hardware, (1) 3-Solenoid Water Valve with Bracket, Water Valve Instructions.

APN241798231 Ice Maker Specifications:

• Color: White / Black / Gray.
• Material: Plastic / Metal.
• Finish: Glossy.
• Ice Maker Dimensions: 11-3/4″L x 4-5/8″W x 4-3/4″H.
• Additional Dimensions: Harness and plug measure approx. 18″L; Bail arm measures 9-3/8″L x 1/8″W x 4-1/8″H.

APN242252702 Water Valve Specifications:

• Color: Gray / Blue / Green / Yellow / Maroon.
• Material: Plastic / Metal.
• Electrical Specs: 120V (each), 50/60Hz (each), 20W (Maroon), 20W (Yellow), 35W (Green).
• Dimensions: 7-1/8″L x 3-3/4″W x 3-1/4″H.
• Additional Dimensions: (1) 1/4″ tube inlet; (3) 5/16″ tube outlets, (1) 1/4″ tube outlet.
• View Instructions.

*If you remove the blue retainer clips on the connectors during installation, they must be re-applied to prevent the water line from leaking.
