285809 Washer Cam Repair Kit For Kenmore

Replacement cam repair kit used for some Amana, Crosley, Estate, Inglis, Kenmore, Maytag and Whirlpool washer models.

Directly Replaces: 285809, 285809VP, 3951650, 3951682, 470910, AH334648, AP3094543, EA334648, EAP334648, PD00003004, PS334648.

Features:

• Repairs the agitator cam, which controls what direction the top section of a dual action agitator moves in.
• Used on direct drive washers with dual agitation.
• Short style cam included.
• It’s recommended to use a small amount of grease on the top of the thrust washer if no grease is present on the old thrust washer.

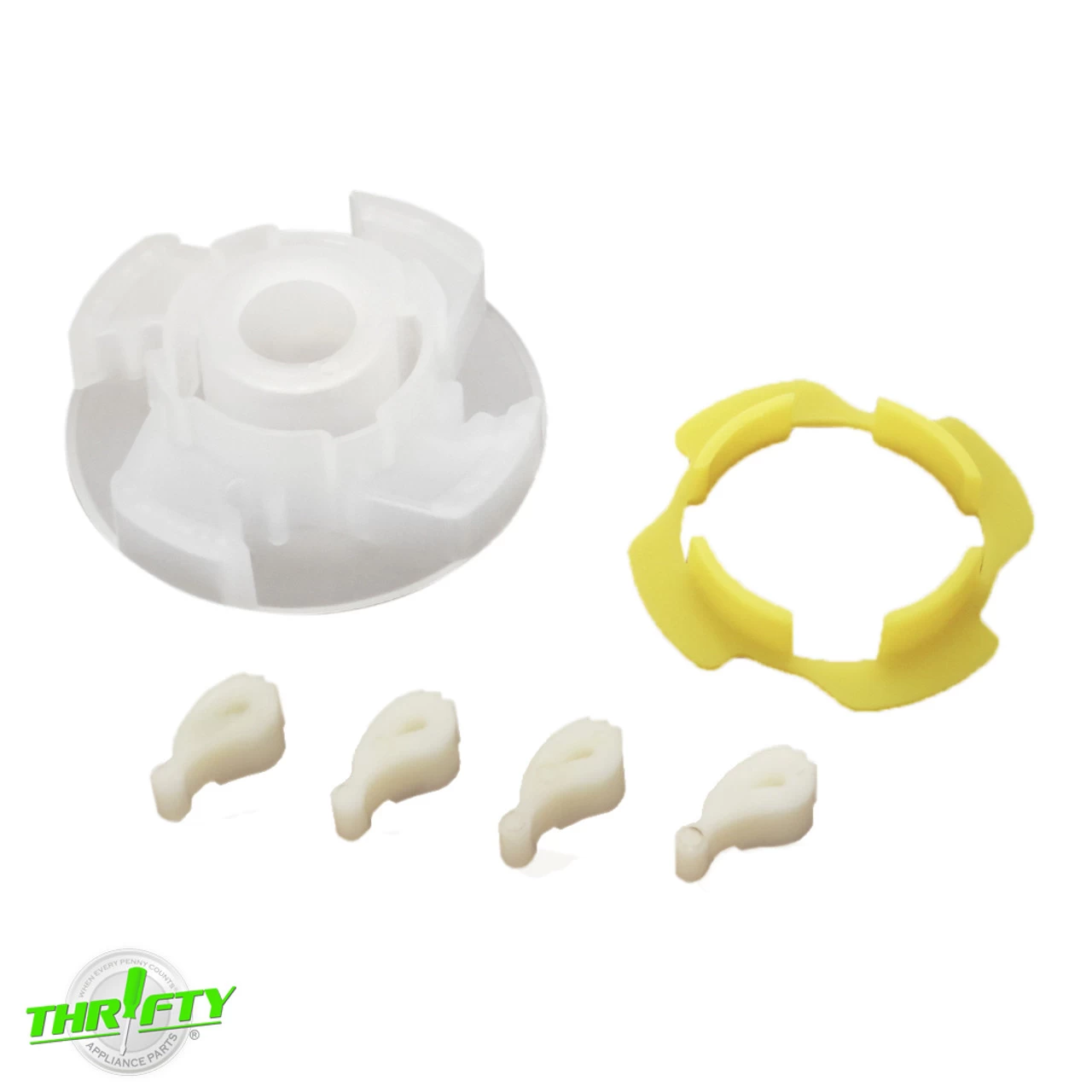

• Includes (1) Short Style Agitator Cam, (1) Cam Bearing, (4) Agitator Dogs, (1) Instruction Sheet.

Specifications:

• Material: Plastic.
• Cam Dimensions: 2-3/4″ Diameter x 1-1/4″H.
• Agitator Dog Dimensions: 7/8″L x 7/16″W x 3/8″H (each).
• Bearing Dimensions: 2-5/16″ outermost diameter x 3/8″H; 1-9/16″ inner diameter.
• View Instructions.
