316455400 316220722 Oven Board & Overlay For Frigidaire / Westinghouse

Original price was: $81.75.Current price is: $57.23.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

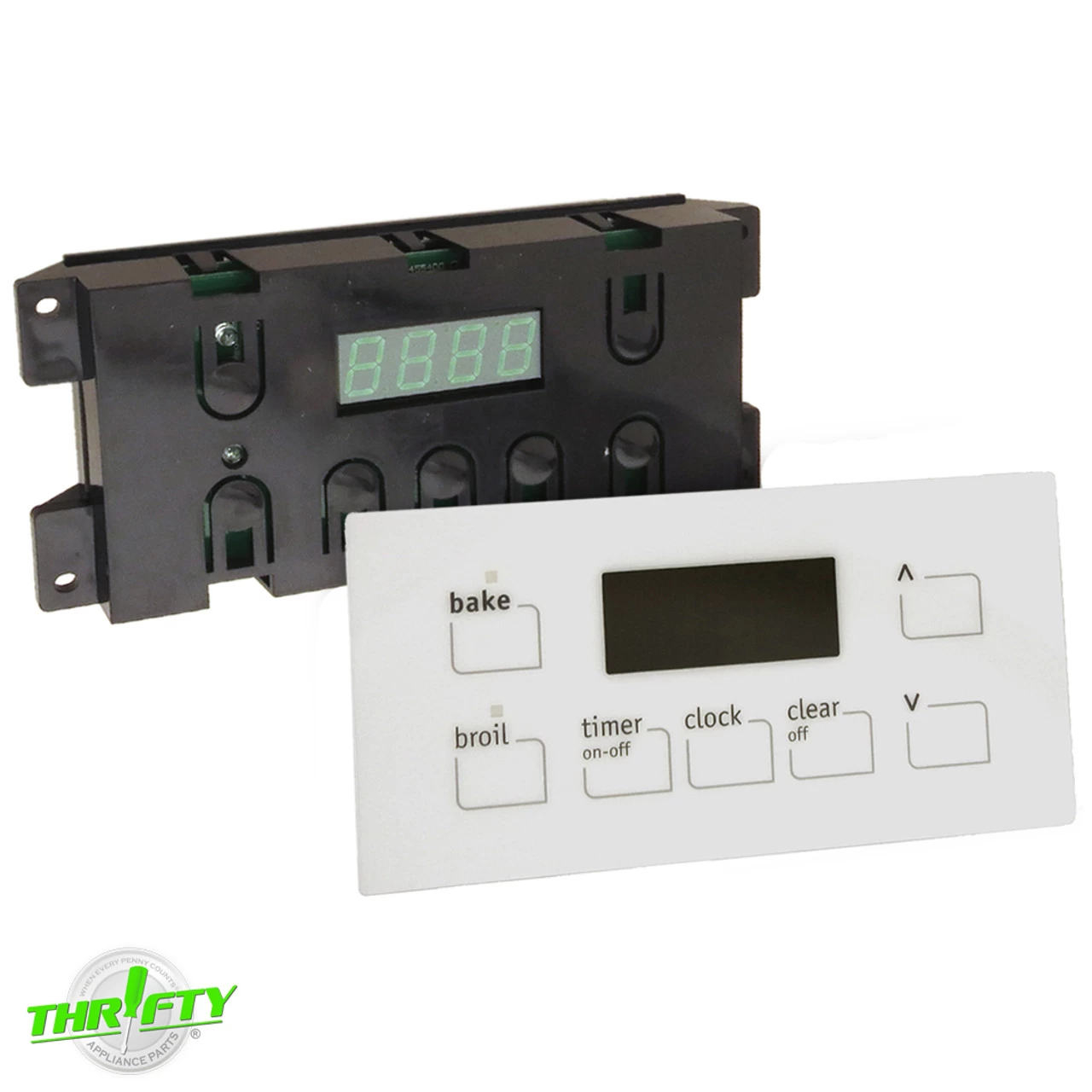

Replacement control board and overlay used for some Crosley, Frigidaire, Gibson, Kenmore, Tappan and White-Westinghouse oven models.

Directly Replaces: 316455400, 5304518660, 316222803, 316222801, 316222803R, 316222807, OC55400, 4958128, AH1528267, AP3956392, AP6892696, EA1528267, EAP12728848, PD00054050, PS12728848, PS1528267, 316220722, 316220711, 316220704, 318213812, 318214400, 318214407, 318324804, B00M25BLFE, 1614083, AP4527329, AH2581725, EA2581725, PS2581725.

Features:

User interface overlay and unit control board.
Includes (1) 7-Button Control Board Overlay, (1) 7-Button Control Board.

APN316220722 Overlay Specifications:

Color: White / Gray.
Material: Plastic.
Finish: Glossy.
Dimensions: 6-1/2″L x 1/16″W x 3-3/16″H.

APN316455400 Control Board Specifications:

Color: Black / Green.
Material: Plastic / Metal.
Finish: Glossy.
Dimensions: 7-3/8″L x 2″W x 3-3/8″H.

NOTE: Due to the sensitive nature of this item, it comes sealed in an anti-static bag. This bag safeguards the part from static build-up that can be damaging to it’s electronic components. Because of this, we are unable to accept returns for this part once the anti-static bag has been opened.

Compatible Models:

How do I find my model number?

Don’t see your model listed? Submit this form to get help finding the right part.
