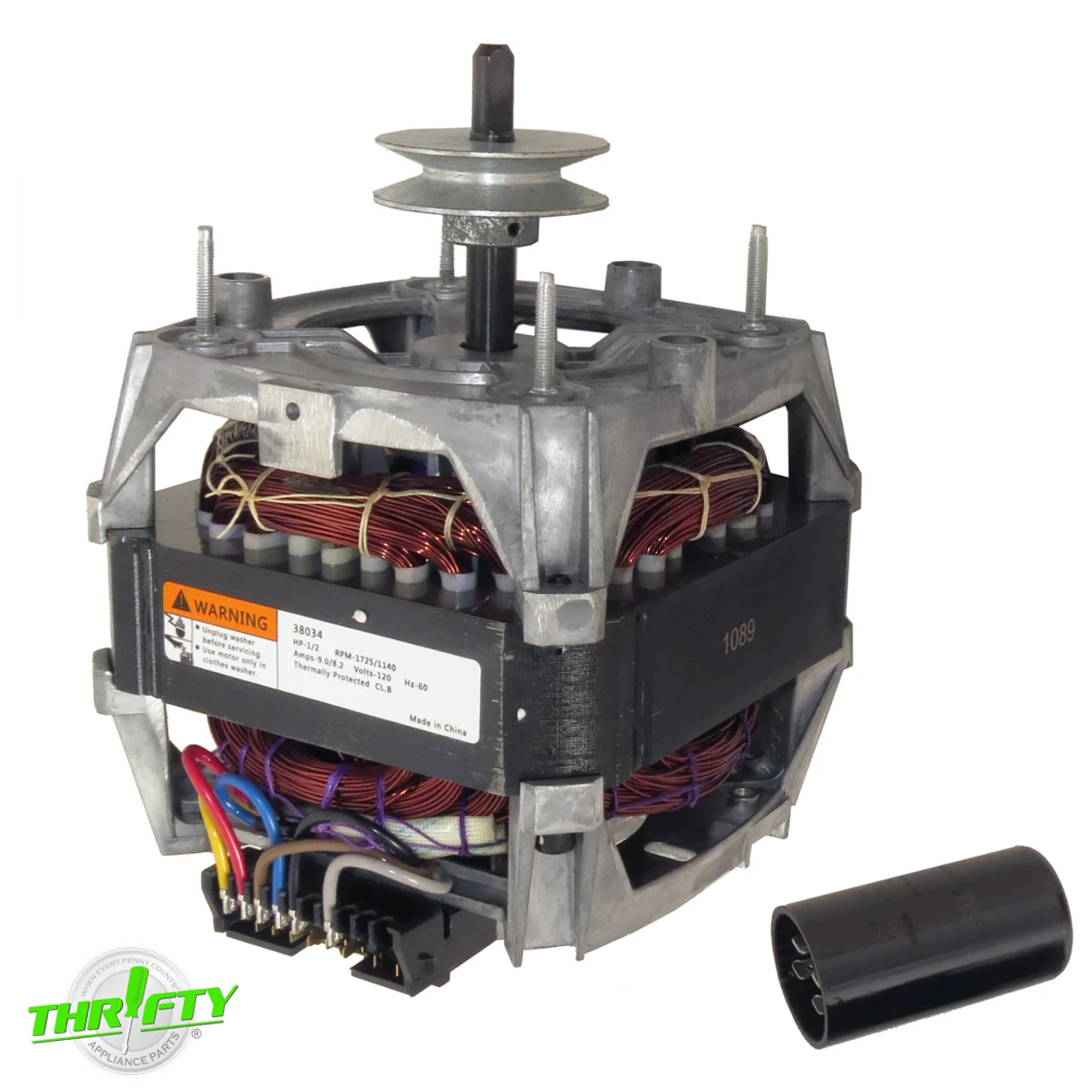

38034P 28808 Washer Drive Motor For Speed Queen / Kenmore

Replacement washer drive motor and belt used for some Amana, Crosley, Kenmore, and Speed Queen washer models.

Directly Replaces: 38034P, 35145, 35145P, 37623, 38034, SM8034, 1796753, AP2407223, EAP12192010, PD00044660, PS12192010, WP28808, 28808, LB142, R0606539, P50-050, R6065-39,B00DM8JJXG, B001DHPPW2, B008DJKKJ6, 3460, AP6007499, AP2404788, EAP11706097, PD00041960, PS11740616, PS11706097.

Features:

• Rotates the drum and agitator.
• 2-Speed Motor.
• Belt used in washers with belt-driven pumps; the motor is connected to the water pump via the pump belt.
• “V” shaped pump belt with dry back cover.
• Includes (1) Drive Motor, (1) Capacitor, (1) 4L330 Belt.

APN38034 Specifications:

• Color: Gray / Black / Multi-Colored Wiring.
• Material: Metal / Plastic.
• Motor Electrical Specs: 120V, 60Hz, 9.0/8.2A, HP- 1/2, 1725/1140 RPM, CL.B.
• Capacitor Electrical Specs: 110VAC, 50/60Hz.
• Motor Dimensions: 6-1/8″L x 6-1/8″W x 9-1/4″H.
• Additional Dimensions: Capacitor measures 2-3/4″L x 1-7/16W x 1-7/16″H.

APN28808 Belt Specifications:

• Color: Black.
• Material: Rubber.
• Dimensions: 33″L x 1/2″W x 5/16″H.
