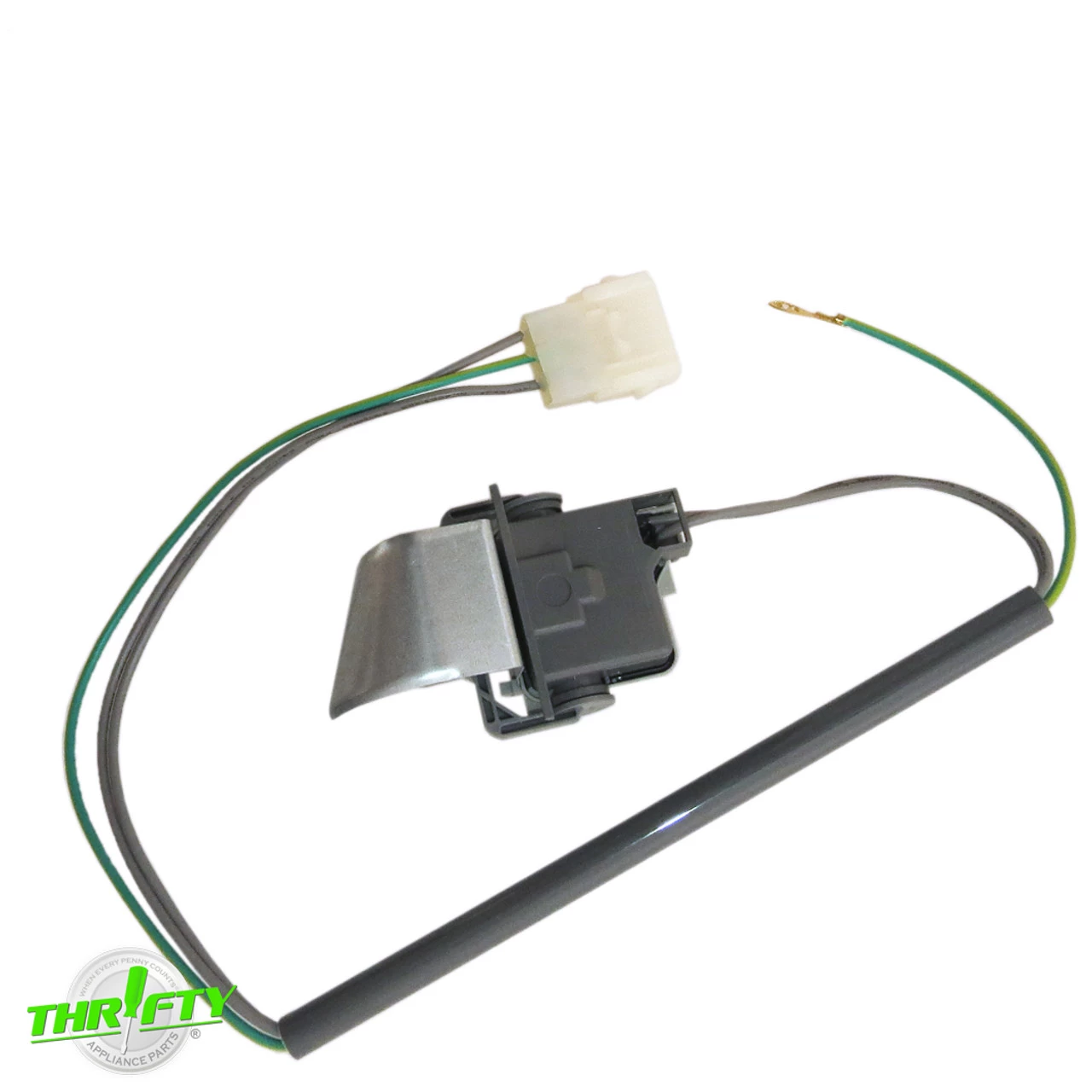

3949238 Washer Lid Switch For Kenmore

Replacement lid switch used for some Kenmore and Whirlpool washer models.

Directly Replaces: WP3949238, 3949238, WP3949238VP, 10800-61, ES9238, 547222, AP6008880, EAP11742021, PD00002488, PS11742021.

Features:

• Secures the lid during the wash cycle on top loading washer models.
• Used on some direct drive top load washers.
• Uses 3 Flat Terminals.
• Included plastic wire lead sleeve can be trimmed to appropriate length.
• Harness uses flat style plug with flat connections.
• Includes (1) Lid Switch with Metal Shield and 3-Wire Harness Assembly.

Specifications:

• Color: Gray.
• Material: Plastic / Metal.
• Electrical Specs: 125-250V, 50-60 Hz, 1/2 HP.
• Dimensions: 3-3/8″L x 2-1/4″W x 1-5/8″H.
• Additional Dimensions: Harness and Plug measure 23 1/2″L.
