4317943 W10408179 Refrigerator Ice Maker & Valve For Whirlpool / KitchenAid

Replacement ice maker and water inlet valve kit used for Crosley, Estate, Kenmore, KitchenAid, Roper, and Whirlpool refrigerator models.

Directly Replaces: 4317943, 4317943R, 4317943VP, 4210317, 4211173, 480616, 480617, 482014, 482015, 482016, 482017, 482018, 482019, 482020, 482394, 482433, 482990, 625601, 625603, 625610, 625611, 625622, 625625, 625653, 625656, 625660, 626002, 626201, 626237, 626366, 626461, 626489, 626608, 626636, 626640, 626609, 626626, 626670, 626687, 627572, 68972-4, 797991, 8114, 833701, 978552, 978553, 978556, 99989730, 46000978556, 46004211173, ER4317943, J21791, J22241, M626687, RIM500, RIM943, TJ90RIM943, W10632400, W10122496, W10190952, W10281545, B008DJX79Q, B008DJWLFC, B008DJZ0MI, B008DJW0CQ, B00DM8JA80, B008DJKF9Q, B008DJWKYE, B008DJXCB4, B008DK3ULA, B008DK78PO, B008DJXFWK, B008DJWJN6, B008DJVOSW, B008DJWI7I, B008DJZATG, B008DJWLQG, B008DJWHT2, B008DJVP8Q, B008DJWLAM, B018A35XMS, B008DJVXGA, B008DJWIZU, B00NMNLHQ8, B0085SV2E2, B008DK2LE2, B00DUIJ4R4, B00HJXYSYA, B008DJYYC0, B005HFB75K, B00M63GZXK, B008DK7976, B008DJWK1M, B008DJXGLK, B008DK4IYS, B008DJVPVI, B008DJX5J8, B008DJVEBY, B008DJXAA2, B008DJXLBU, B008DJXEI0, B008DJIZOS, B008DJVESW, B008DJI7NC, B008DJWJBS, B008DJVPHW, B008DJWZOO, B008DJVO1E, B008DJXHFA, B008DJX7R8, B008DJXOMQ, B008DK5838, B008DJVODC, B008DK78VS, 1857, AH358591, AP2984633, EA358591, EAP358591, PD00002471, PS358591, W10408179, W10408179VP, 2186486, 2188622, 2188708, 2188746, 2205762, 2255457, 2304757, 2304833, 2315534, 4389177, WV8179, 1938614, AH3497634, AP5263471, EA3497634, EAP3497634, PD00002943, PS3497634.

Features:

• Creates ice cubes to be stored in the ice bin.
• Replaces most ice makers made by Whirlpool, Kitchen Aid, Kenmore for models starting with 106. However, it does not fit models that have the ice container in the door and electronic ice level sensor.
• INCLUDES bail arm.
• Some models may require re-using the original wire harness for proper installation.
• Water valve with easy, push-in style tube inlet and outlets.

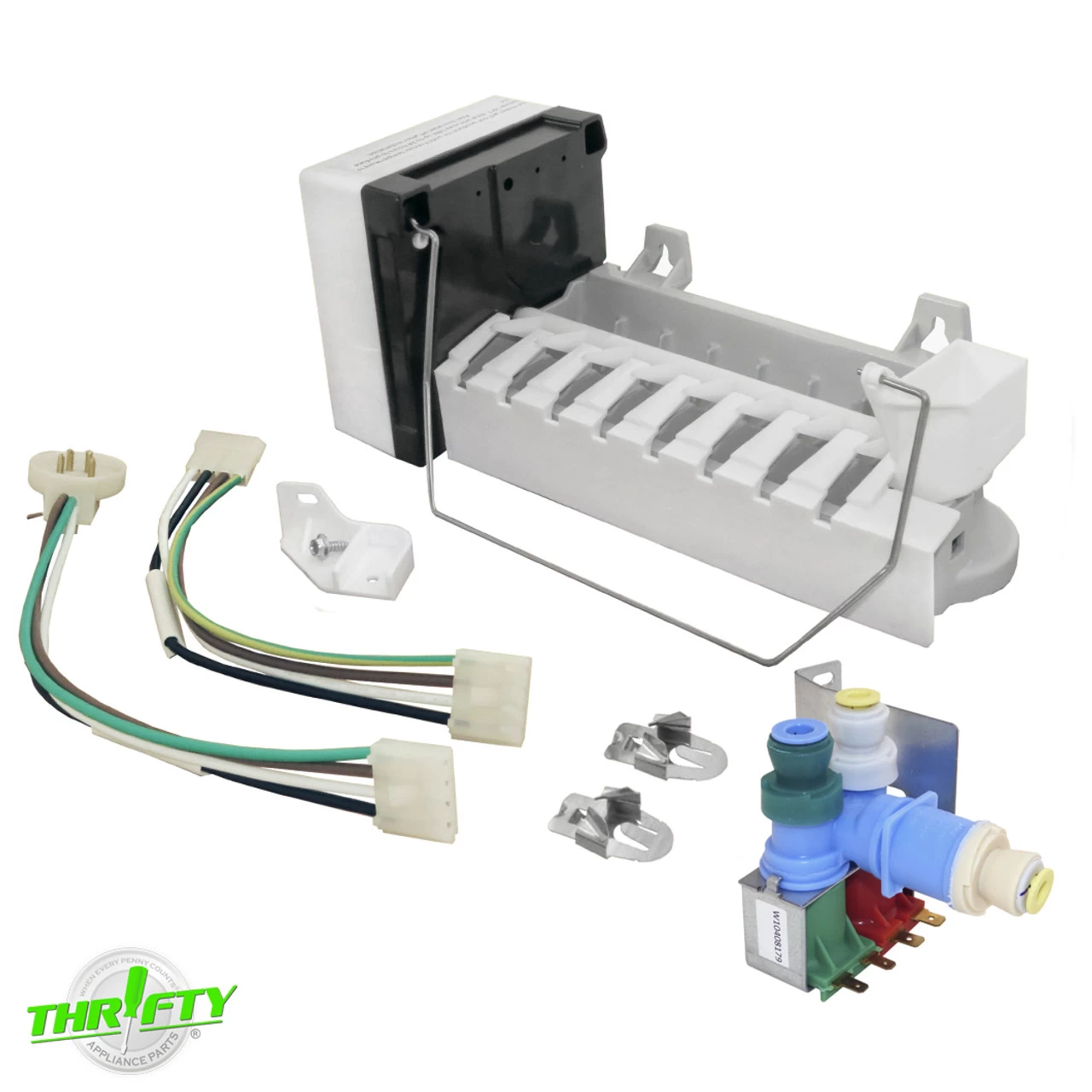

• Includes (1) 8-Cube Ice Maker Assembly with Bail Arm, (1) Round Style Plug Wire Harness, (1) Linear Style Plug Wire Harness, Installation Hardware, Instructions, (1) APNW10408179 2-Solenoid Water Valve with Bracket.

Ice Maker Specifications:

• Color: White / Black / Gray.
• Material: Plastic / Metal.
• Finish: Glossy.
• Electrical Specs: 115V, 60Hz, 1.6W.
• Dimensions: 11-1/4″L x 4-5/8″W x 4-3/4″H.
• Additional Dimensions: Wire harness with round style plug measures 12″L. Wire harness with linear plug measures 10 7/8″L.
• View Instructions.

Water Valve Specifications:

• Color: Blue / Green / White / Red / Gray.
• Material: Plastic / Metal.
• Electrical Specs: 120V (ea), 50/60Hz (ea), 20W (W2), 35W (W1).
• Dimensions: 5″L x 3-3/4″W x 3-1/4″H.
• Additional Dimensions: (1) 1/4″ inlet, (1) 5/16″ outlet, (1) 1/4″ outlet; 3/16″ terminals (Green), 1/4″ terminals (Red).
