4391996 3392519 W10328463 Dryer Ignitor & Fuse & Coil For Whirlpool / Maytag / Kenmore

Replacement ignitor, fuse, and valve coil used for some Admiral, Crosley, Kenmore, Maytag, and Whirlpool dryer models.

Directly Replaces: 4391996, 14211282, 3-4970, 304970, 41-311, 41-590, 4391996VP, DE351, DE363, DE354, K35-166, K35-455, WE4X750, WE04X0750, 5303937186, 08001685, 08010845, 08015456, 3281151, 5303281151, 8001685, F000134211, F134211-000, F134211000, F139743-000, F139743000, G139743-000, Q000622141, Q622141, WQ622141, 279311, 239233, 239300, 239302, 26000279311, 279185, 279311VP, 338899, 338900, 3389895, 340607, 3415, 343128, 41-311, 6-85211, 660991, 685211, 686590, 687399, 691039, 8113, 99912719, K35-166, 3018, 276846, 1036069, 3415, AH334180, AH373025, AH268196, AH900236, AP3094138, AP3109449, AP2042796, AP3674313, EA373025, EA268196, EA900236, EA334180, EAP334180, EAP900236, EAP268196, EAP373025, PD00002514, PD00001123, PD00000539, PD00002344, PS334180, PS268196, PS373025, PS900236, WPW10328463, W10273784, W10295524, W10311021, W10328463, DE8463, 1937870, AP6019658, EAP11752967, PD00004000, PS11752967.

Features:

• The ignitor produces heat in gas units while the dryer is in operation; The safety fuse that blows in order to cut off power if the dryer overheats; Valve coil opens and closes the valve to control the flow of gas.
• Flat-style glow bar ignitor that replaces older style round ignitors.
• Same ignitor as 279311, but doesn’t include any brackets.
• 196°F single blow (non-resettable) limiter fuse.
• Coil has both primary, 3-terminal boost/hold, coil and secondary, 2-terminal, coil molded together.

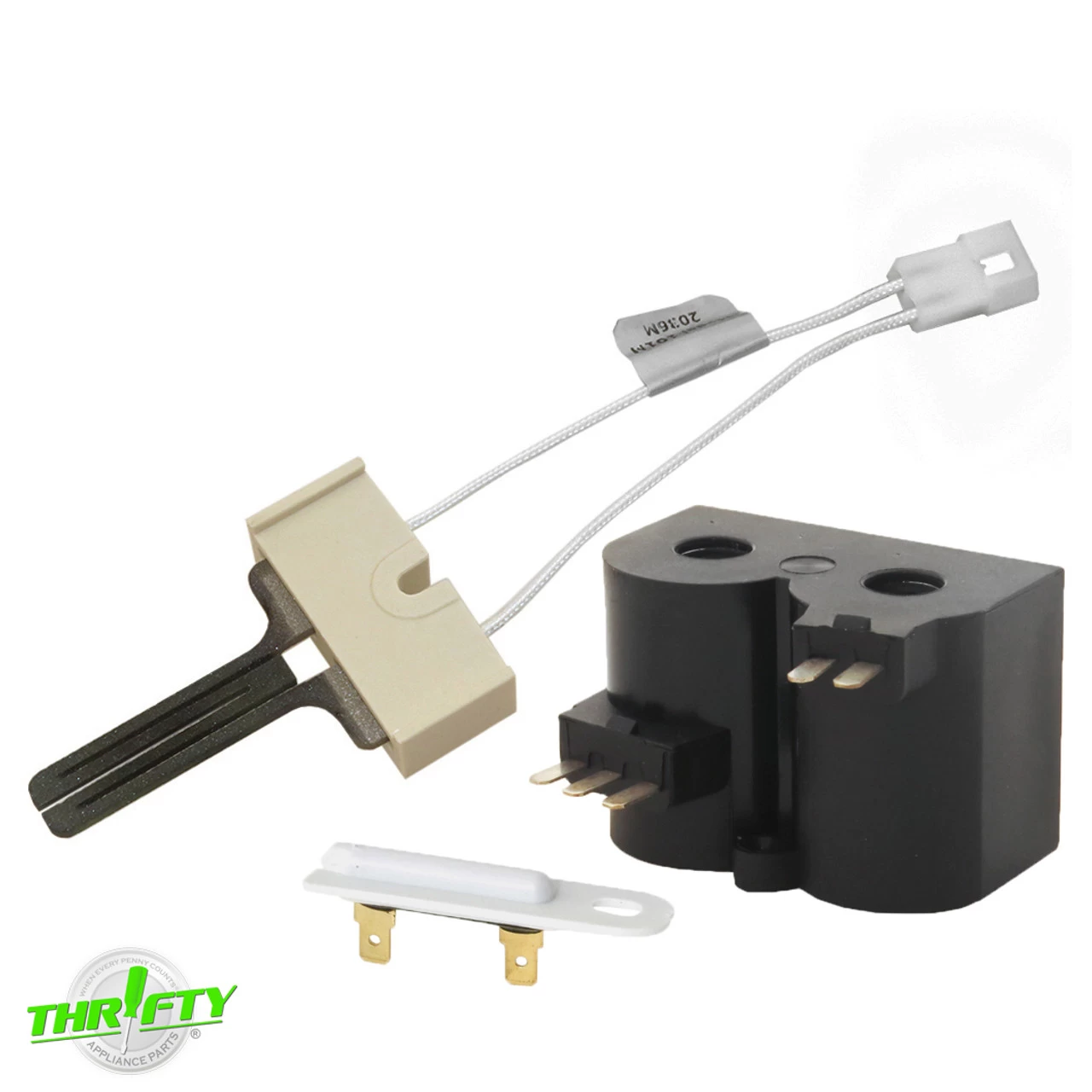

• Includes (1) Ignitor with 2-wire Lead and Plug, (1) Blower Housing Thermal Fuse, (1) molded valve coil set.

APN4391996 Ignitor Specifications:

• Color: White / Off-White / Black.
• Material: Porcelain / Metal / Plastic.
• Electrical Specs: 3.4 – 3.6 Amps.
• Ignitor Dimensions: 3-3/16″L x 2″W x 5/8″H.
• Additional Dimensions: Lead and plug measure approx. 5-1/8″L.

APN3392519 Fuse Specifications:

• Color: White / Black / Brass.
• Material: Metal / Plastic.
• Overall Dimensions: 3/4″L x 9/16″W x 2″H.
• Additional Dimensions: 3/16″ spade terminals.

APNW10328463 Valve Coil Specifications:

• Color: Black / White.
• Material: Plastic / Metal.
• Dimensions: 1-13/16″L x 1-1/2″W x 1-1/4″H.
