5301EL1001J Dryer Complete Heater Assembly For Kenmore

Original price was: $78.75.Current price is: $55.13.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

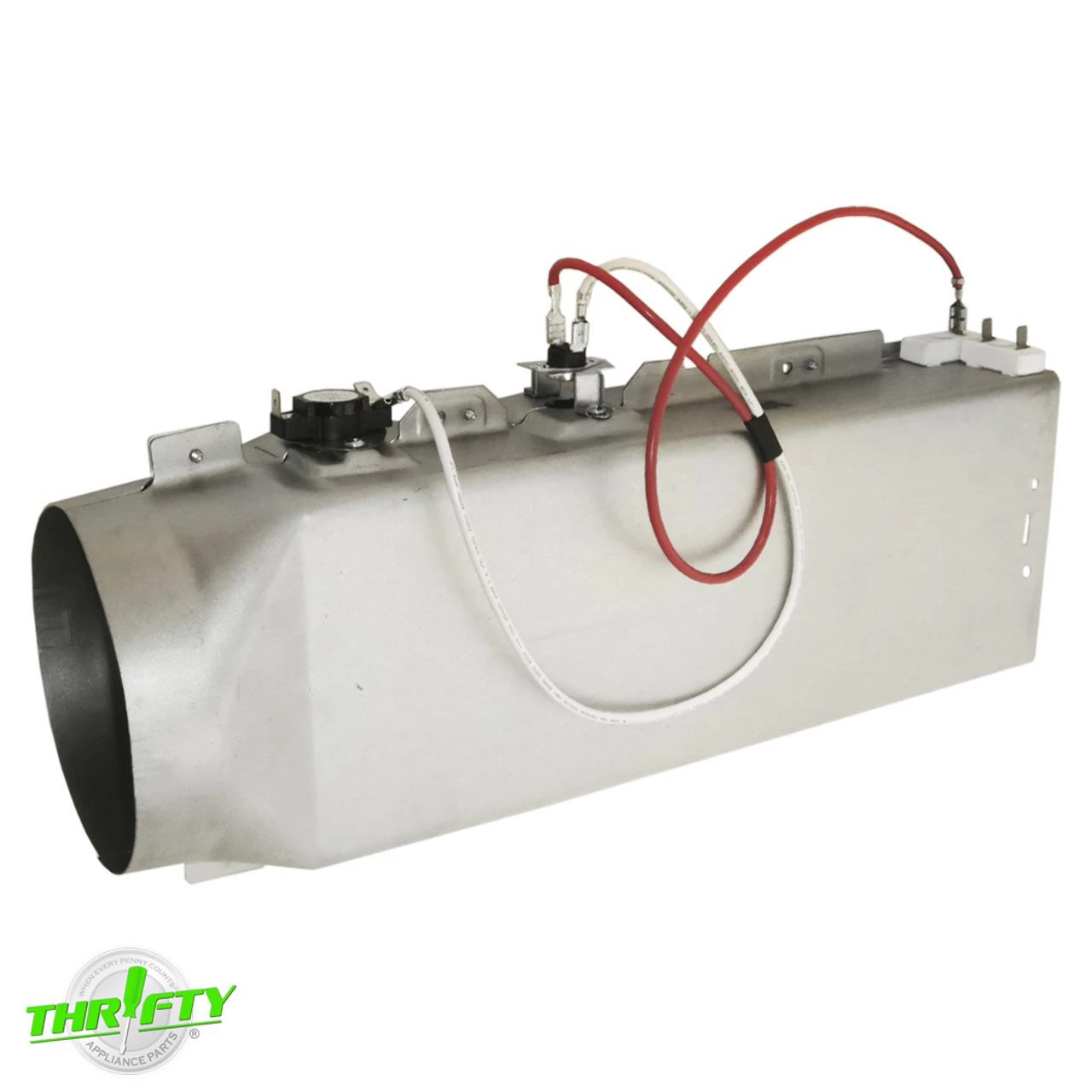

Replacement complete heater assembly with housing, thermostat, and fuse used for some Kenmore and LG dryer models.

Directly Replaces: 5301EL1001J, 5301EL1001H, 5301EL1001E, 5301EL1001G, 5301EL1001U, 5301EL1001W, 1377645, AP5072170, AH3527790, EA3527790, PS3527790.

Features:

Produces heat while the dryer is in operation.
Fully assembled in a metal housing, with replacement 6931EL3001F (3-terminal) hi-limit thermostat and replacement 6931EL3003D thermal fuse.
Includes (1) Heater Assembly with L125-31C Hi-Limit Thermostat, Fuse, & Wire Jumpers.

Specifications:

Material: Metal / Ceramic.
Electrical Specs: 240V, 5400W.
Overall Dimensions: 16-3/16″L x 7-1/2″W x 5″H.
Additional Dimensions: 5″ round opening on one end and 5-3/8″ x 3-3/4″ rectangle opening on the opposite end.

Compatible Models:

How do I find my model number?

Don’t see your model listed? Submit this form to get help finding the right part.
