5304457724 Dryer Repair Kit For Frigidaire / Westinghouse

Replacement rear bearing kit used on some Crosley, Frigidaire, Gibson, Kenmore, and White-Westinghouse dryer models.

Directly Replaces: 5303281153, 3281153, 85-852, DE724, Q000142850, Q142850, WQ142850, B005B9DP4I, 1851, AH459829, AP2142648, EA459829, EAP459829, PD00000097, PS459829, 131777700, 131168200, 131825900, 131724301, 131205400, 5303281019, 5303281020, 131863007, 131434600, 131580400, 131826900, 131863000, 131863004, 1191132, AH1156706, AP3886900, EA1156706, EAP1156706, PD00000101, PS1156706, 5303937182, 134036400, WE09X10013, WE9X10013, 1055093, 947963, AH832644, AH652857, AP3579413, AP3669570, EA832644, EA652857, EAP832644, EAP652857, PD00000137, PD00032732, PS832644, PS652857, 5303937183, 134134700, WE09X10014, WE9X10014, 1012549, 947964, AH832645, AP3419768, AP3220737, EA832645, EAP832645, EAP755828, PD00000100, PD00026047, PS832645, PS755828, 134503600, AP3865318, 1156784, 134163400, 148270, 148270-000, 5303283471, AH1148434, F148270-000, F1482740-000, PS1148434, LB3600, 134163400AU, B005459K7A, 1156784, AP3865318, EA1148434, EAP1148434, PD00000114, PS1148434.

Features:

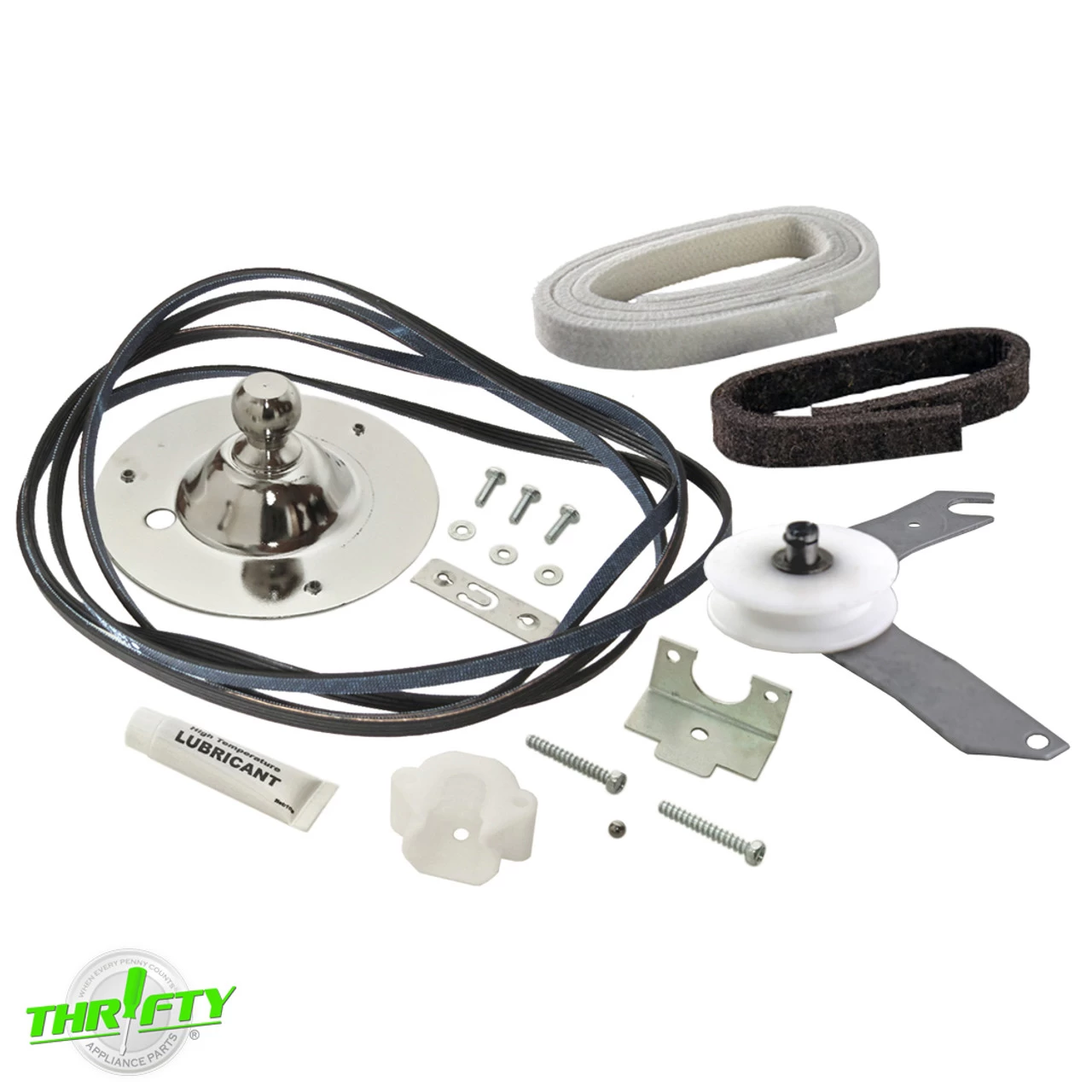

• Includes 131777700 ball shaft replacement, (3) 131168200 ball shaft screw replacements, (3) washers, (1) 131825900 Teflon shaft bearing replacement, (1) 131724301 shaft bearing bracket replacement, (2) 131205400 shaft bracket screw replacements, (1) 5303281019 ball bearing replacement, (1) 5303281020 ball bearing clip replacement, (1) high-temperature lubricant, (1) 4-Rib Belt, (1) Upper Felt Seal, (1) Lower Felt Seal, (2) Tubes of High Temperature Adhesive, (1) Idler Arm, Pulley, and Shaft Assembly.

APN5303281153 Rear Bearing Kit Specifications:

• Material: Metal / Teflon.
• Ball Shaft Dimensions: 5-1/8″L x 2-1/4″W x 5-1/8″H.
• Additional Dimensions: Bearing measures 1-15/16″L x 1″W x 1 3/8″H with mounting holes 1-1/2″ apart (center to center).

APN131863007 Idler Pulley Specifications:

• Color: White / Gray.
• Material: Plastic / Metal.
• Dimensions: 5-1/4″L x 1-1/2″W x 5-3/8″H.
• Pulley Dimensions: 2-1/4″ diameter.

APN5303937182 Upper Felt Specifications:

• Color: Gray.
• Material: Felt.
• Dimensions: 16-7/8″L x 7/8″W x 3/8″H.

APN5303937183 Lower Felt Specifications:

• Color: White.
• Material: Felt.
• Dimensions: 47-1/8″L x 7/8″W x 3/8″H.

APN134503600 Belt Specifications:

• Color: Black.
• Material: Rubber.
• Overall Dimensions: 87-1/2″L x 1/4″W x 1/8″H.
