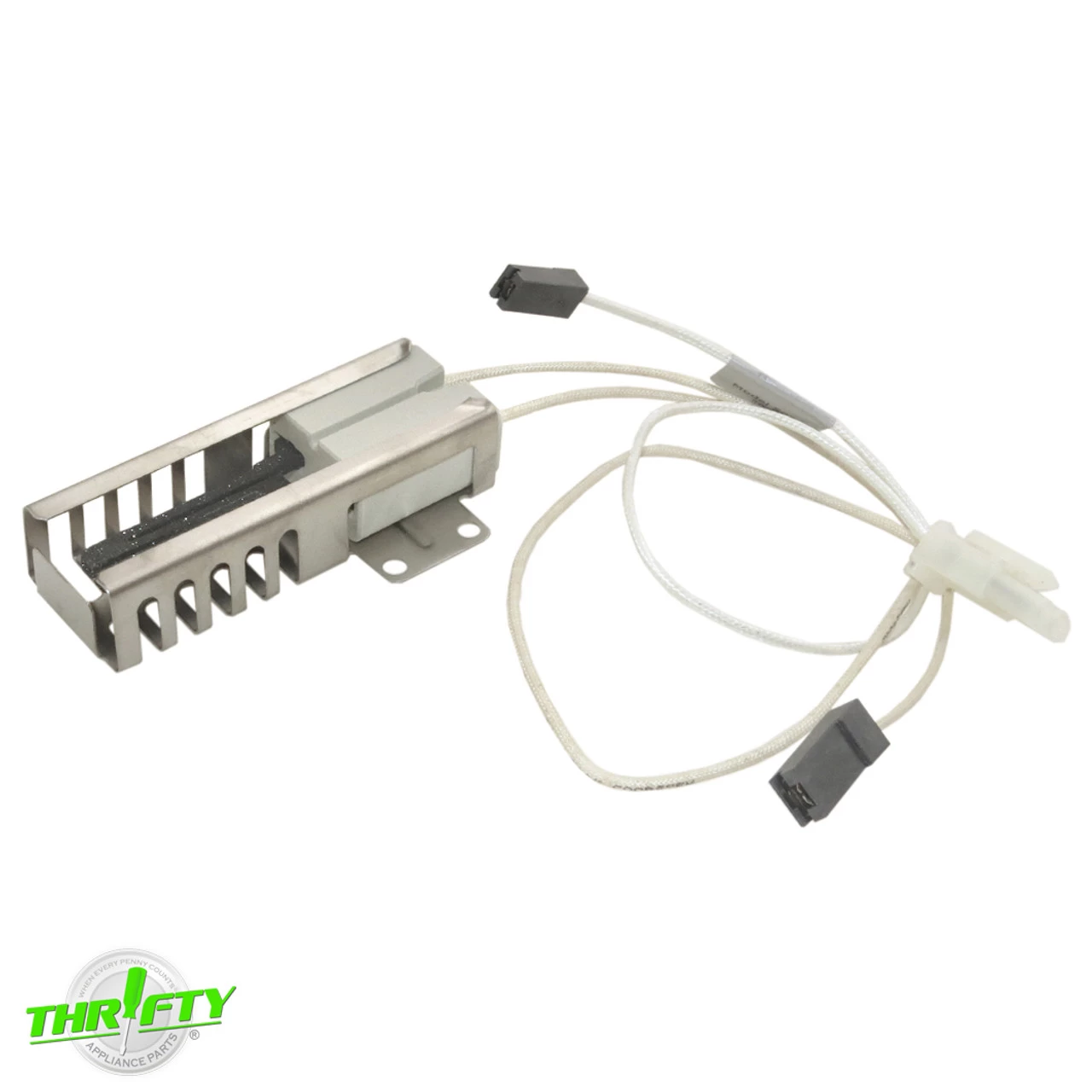

5304509706 Oven Ignitor For Kenmore

Replacement ignitor used for some Crosley, Electrolux, Frigidaire, Gibson, Kenmore, Tappan, and White-Westinghouse oven models.

Directly Replaces: 5304509706, 316489402, 316489408, 316119301, 41-218, 4545981, AP6230715, EAP12071409, PD00035904, PS12071409.

Features:

• Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
• Bake/Boil igniter for some single burner ranges.
• Has wire leads with pin connector and two male spade breaks.
• Includes (1) Igniter with Bracket and Lead/Plug Assembly.

Specifications:

• Material: Metal / Ceramic.
• Electrical Specs: 3.4 – 3.6A.
• Dimensions: 3-3/4″L x 1-3/4″W x 13/16″H (Cage / Bracket); Block measures 1.5″L.
• Additional Dimensions: Overall lead and plug measure approx. 16-1/2″L.
