5304529782 5304523155 134719300 134793500 Dryer Motor Repair Kit For Electrolux / Frigidaire

Replacement drum drive motor, rollers, idler pulley, and belt used for some Electrolux, Frigidaire, and Kenmore dryer models.

Directly Replaces: 5304529782, 134693302, 137115900, 134693300, 134693301, 5304510568, 7137115900, 4976319, AP7034396, EAP16620747, PD00074329, PS16620747, 5304523155, 5304523152, 5304523151, 5304523153, 5304523154, 7134715900, 134715900, 4961000, AP6979841, EAP12746506, PD00066857, PS12746506, 134719300, 137315300, 7134719300, LB5300, 1482960, AP4368788, EAP2349294, PD00000843, PS2349294, 134793511, 134793500, 134793512, 7134793500, 4960127, 1482987, AH2349311, AP6996178, AP4368855, EA2349311, EAP16227173, PD00065010, PS16227173, PS2349311.

Features:

• Work together to drive the rotation of the drum.
• Motor uses a 5-Groove Pulley, but will also replace some 4-Groove Pulleys.
• Roller set includes all pieces needed to replace updated manufacturer design.

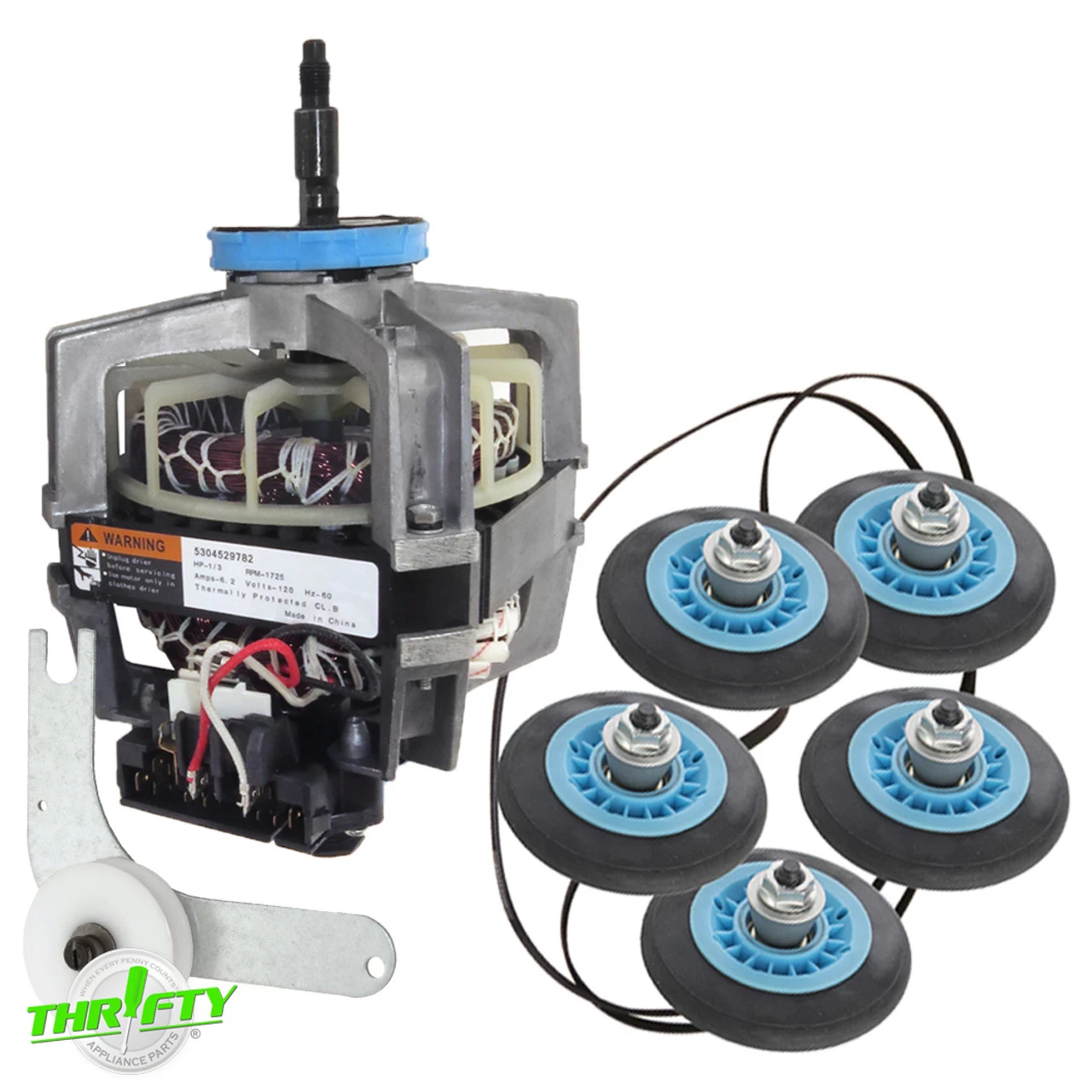

• Includes (1) Drive Motor Assembly, (5) Drum Rollers, (5) Shafts, (5) Nuts, (5) Spacers (1) 5-Rib Belt, (1) Idler Pulley.

NOTE: This kit includes parts to replace the whole roller wheel assembly. Some compatible units use a shaft that will not fit the new roller, in those cases the entire kit must be installed.

APN5304529782 Motor Specifications:

• Color: Gray / Black / Blue.
• Material: Metal / Plastic.
• Electrical Specs: 120V, 60Hz, 6.2 Amp, 1725RPM, CL.B.
• Dimensions: 6″L x 5-1/2″W x 9-7/8″H.

APN5304523155 Roller Specifications:

• Color: Black / Blue / Gray.
• Material: Plastic / Rubber / Metal.
• Dimensions: Approx. 3-1/8″ Diameter x 1-5/8″W.

APN137315300 Belt Specifications:

• Color: Black.
• Material: Rubber.
• Overall Dimensions: 90″L x 5/16″W x 1/8″H.

APN134793500 Idler Pulley Specifications:

• Color: White / Gray.
• Material: Plastic / Metal.
• Overall Dimensions: 5-1/4″L x 1-1/2 “W x 5″H.
• Pulley Dimensions: 2-1/4″ diameter.
