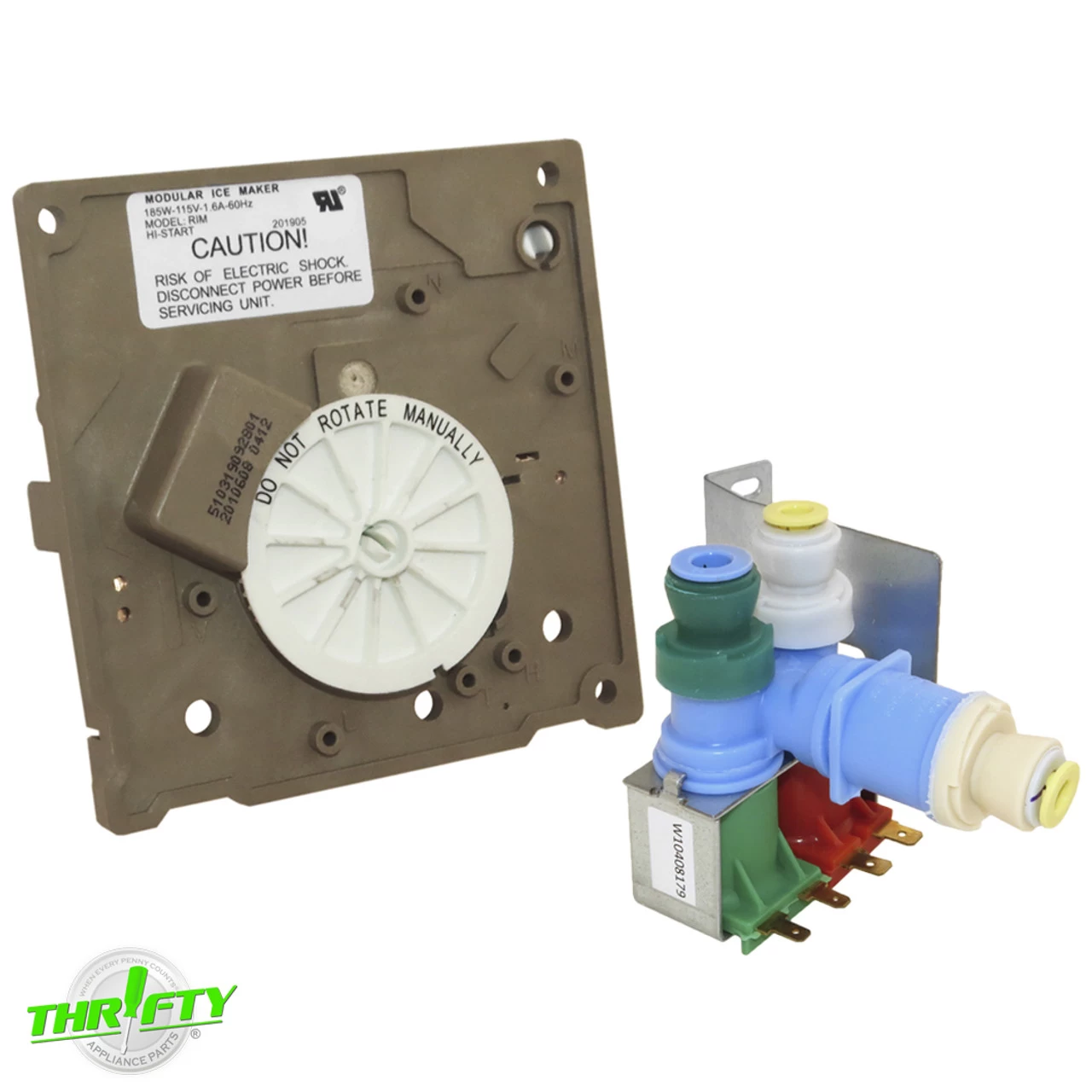

628366 W10408179 Refrigerator Icemaker Module & Water Valve For Whirlpool / KitchenAid

Original price was: $67.75.Current price is: $47.43.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

Replacement ice maker module and water inlet valve used for some Amana, Crosley, Estate, Inglis, Kenmore, KitchenAid, Maytag, Roper, and Whirlpool refrigerator models.

Directly Replaces: W10190935, 14210064, 483042, 483101, 483105, 626676, 626680, 626684, 627797, 627801, 627811, 627816, 628134, 628135, 628247, 628258, 628302, 628305, 628332, 628342, 628357, 628358, 628366, 628398, 628399, 8240, R0167202, R0167203, RO167203, W10122536, B00Q6XMNGE, B00Q6XN3VI, B00Q6XNFPM, B00M71TF2Y, B00Q6XNRZA, B005ARC9BG, B0050KK19U, B0050KK046, B0050KK0OG, B0050KK1J0, B00Q6XN7LO, B00KGAP11C, B0050KK1KY, B0050KK14A, B0050KK1PY, B00Q6XN8AO, B00M71T3QW, B0050KK0FA, B00Q6XN5ZW, B00M71TB32, B0050KK0T6, B0050KK0LY, B0156NE8ZS, B00Q6XNY6C, B00M71SMIW, B0050KK37K, B0050KK0XC, B00M71SIYK, B00Q6XMPQ2, B0050KJZYW, B00Q6XNW64, B0050KK3QG, B00Q6XNA4S, B0050KK262, B00M71RTK4, B00J8HVKLE, B00Q6XN5PW, B0050KK2XA, B00Q6XO23G, B00Q6XNDFE, B00Q6XNM3W, B00M71TFCY, B00M71SX0E, B00M71SZWU, B00M71SWH8, B00Q6XNU0C, B0050KK3HU, B0050KK0AA, B0050KK226, B0050KK10Y, B0050KK3LG, B0050KK3DE, B00Q6XMY9U, B0050KK3U2, B002ZNFIKC, B00Q6XO05G, B0050KK1FE, B0050KK2R6, 1469018, AH2341896, AP4359694, EAP2341896, PD00002593, PS2341896, W10408179, W10408179VP, 2186486, 2188622, 2188708, 2188746, 2205762, 2255457, 2304757, 2304833, 2315534, 4389177, WV8179, 1938614, AH3497634, AP5263471, EA3497634, EAP3497634, PD00002943, PS3497634.

Features:

The module controls the operation of the ice maker; The water valve controls the flow of water to the unit.
Water valve with easy, push-in style tube inlet and outlets, designed to replace “in-grille” water filter valves.
Includes (1) Ice Maker Motor Head Module, (1) 2-Solenoid Water Valve with Bracket.

APN628366 Ice Maker Module Specifications:

Color: Brown / White.
Material: Plastic / Metal.
Finish: Matte.
Electrical Specs: Module 115V, 60Hz, 185W, 1.6A.; Synchronous Motor 120VAC, 60Hz, 1.5W, 1RPM, CCW.
Dimensions: 4-1/4″L x 2-1/8″W x 4-3/8″H.

APNW10408179 Water Valve Specifications:

Color: Blue / Green / White / Red / Gray.
Material: Plastic / Metal.
Electrical Specs: 120V (ea), 50/60Hz (ea), 20W (W2), 35W (W1).
Dimensions: 5″L x 3-3/4″W x 3-1/4″H.
Additional Dimensions: (1) 1/4″ inlet, (1) 5/16″ outlet, (1) 1/4″ outlet; 3/16″ terminals (Green), 1/4″ terminals (Red).

Compatible Models:

How do I find my model number?

Don’t see your model listed? Submit this form to get help finding the right part.
