6931EL3003D 6323EL2001B 6931EL3002M Dryer Thermistor / Thermostat / Fuse For LG

Replacement blower thermistor, thermostat, and thermal fuse used for some Kenmore and LG dryer models.

Directly Replaces: 6323EL2001B, 6323EL2001H, TH2001B, 1268206, AH3529026, AP4441539, EA3529026, PD00001821, EAP3529026, PS3529026, 6931EL3002M, 6931EL3002A, 6931EL3002K, SL3002M, 2701354, AP5782317, EAP8747887, PD00023476, PS8747887, 6931EL3003D, 6931EL3003E, L3003D, 1268366, AH3530485, AP4440975, EA3530485, EAP3530485, PD00001818, PS3530485.

Features:

• Monitors the temperature of the air inside the dryer drum while in use. Turns the heat on or off to create the right temperature for drying.
• Thermostat and fuse mount on blower housing.
• Fuse with non-resettable thermal limiter.

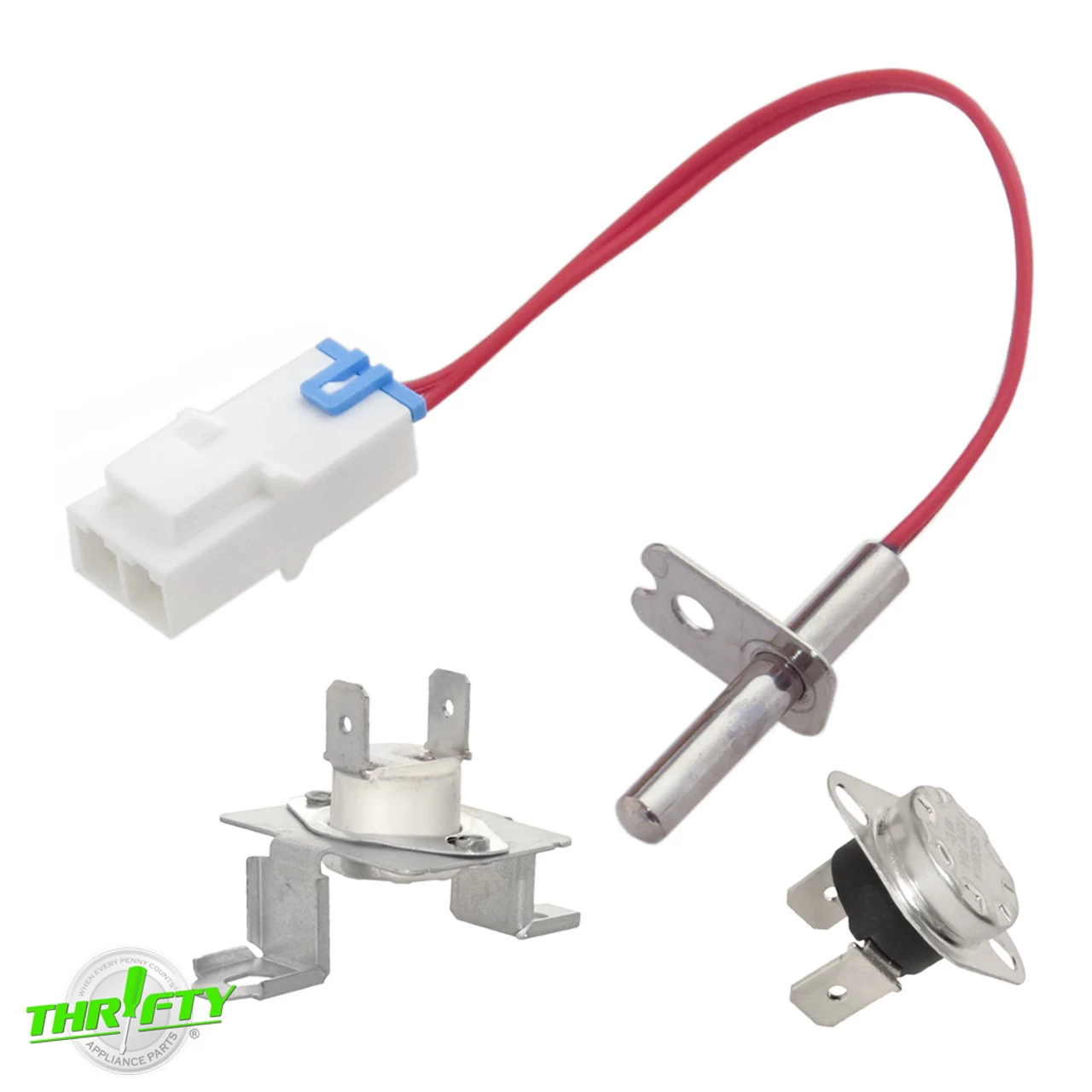

• Includes (1) Blower Thermostat, (1) Thermistor with 2-Wire Harness, (1) Thermal Fuse.

APN6323EL2001B Thermistor Specifications:

• Color: White / Red / Gray.
• Material: Metal / Plastic.
• Electrical Specs: 10K Ohms @ 77° F.
• Overall Dimensions: 7-7/8″L x 1/2″W x3/4″H.
• Additional Dimensions: Harness / plug measures 6 1/2″L.

APN6931EL3002M Thermostat Specifications:

• Color: Gray / Black.
• Material: Metal / Plastic.
• Finish: Satin.
• Electrical Specs: 120V, 12A, 185°F.
• Dimensions: 3/4″L x 3/4″W x 1-3/16″H.
• Additional Dimensions: Mounting holes approx. 1″ apart.

APN6931EL3003D Thermal Fuse Specifications:

• Color: Gray / White.
• Material: Porcelain / Metal.
• Dimensions: 1-1/4″L x 1-1/8″W x 2-1/4″H.
