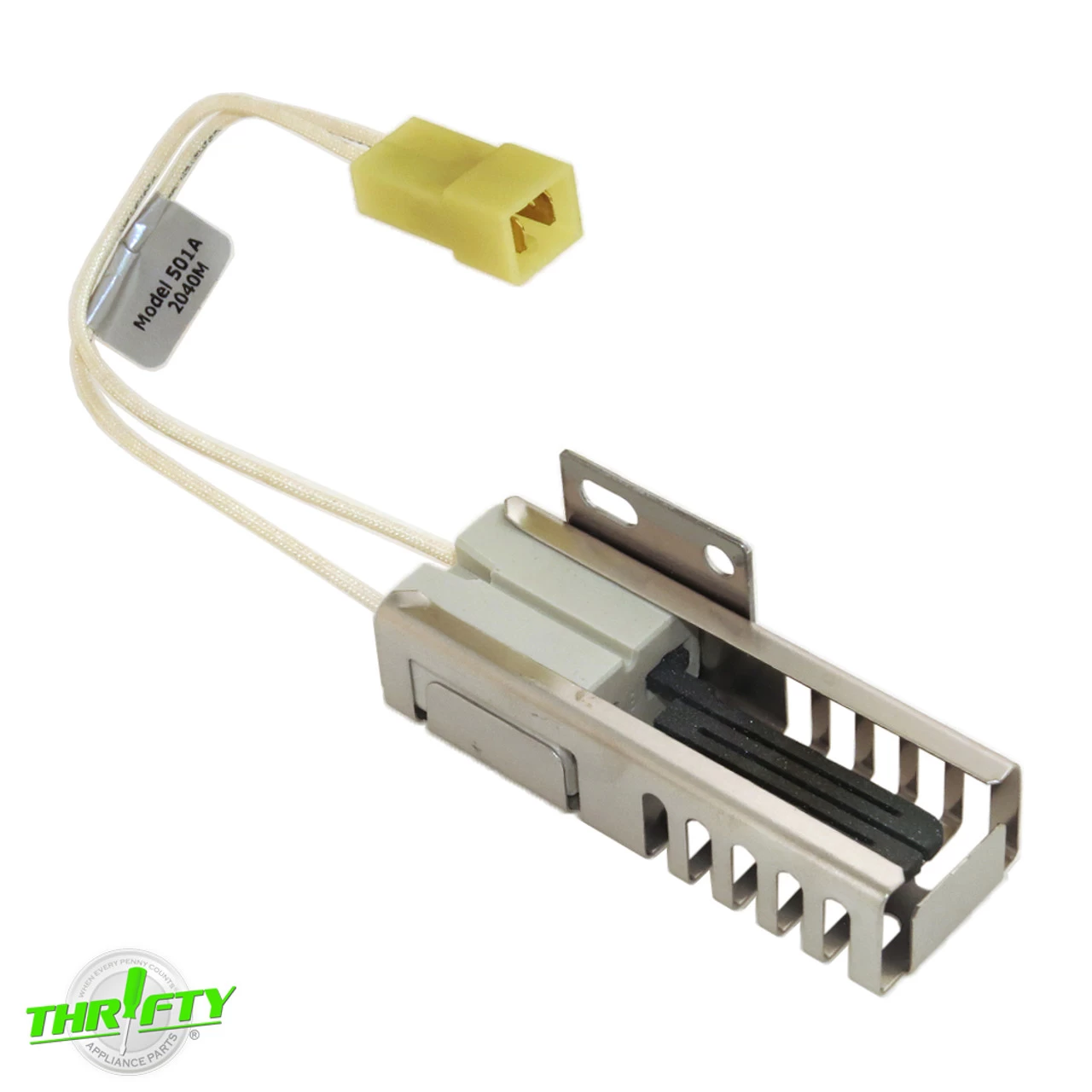

7432P136-60 Oven Ignitor For Maytag / Amana / Whirlpool

Original price was: $36.75.Current price is: $25.73.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

Replacement ignitor used for some Admiral, Amana, Jenn-Air, KitchenAid, Maytag, and Whirlpool oven models.

Directly Replaces: WP7432P136-60, WP7432P136-60VP, 7432P136-60, 7432P131-60, 31991701, 32009801, 74008064, 1544454, AP6011349, EAP11744545, PD00002524, PS11744545.

Features:

Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
Bake / Broil Ignitor.
Has 7.75″ leads with male spade.
Includes (1) Igniter with 90 Degree Bracket and Lead/Plug.

Specifications:

Material: Metal / Ceramic / Plastic.
Electrical Specs: 3.4 – 3.6A.
Dimensions: 3-3/4″L x 1-3/8″W x 1-5/16″H (Cage / Bracket); Block measures 1-1/2″L.
Additional Dimensions: Harness and plug extend 7-7/8″L from ignitor.

Compatible Models:

How do I find my model number?

Don’t see your model listed? Submit this form to get help finding the right part.
