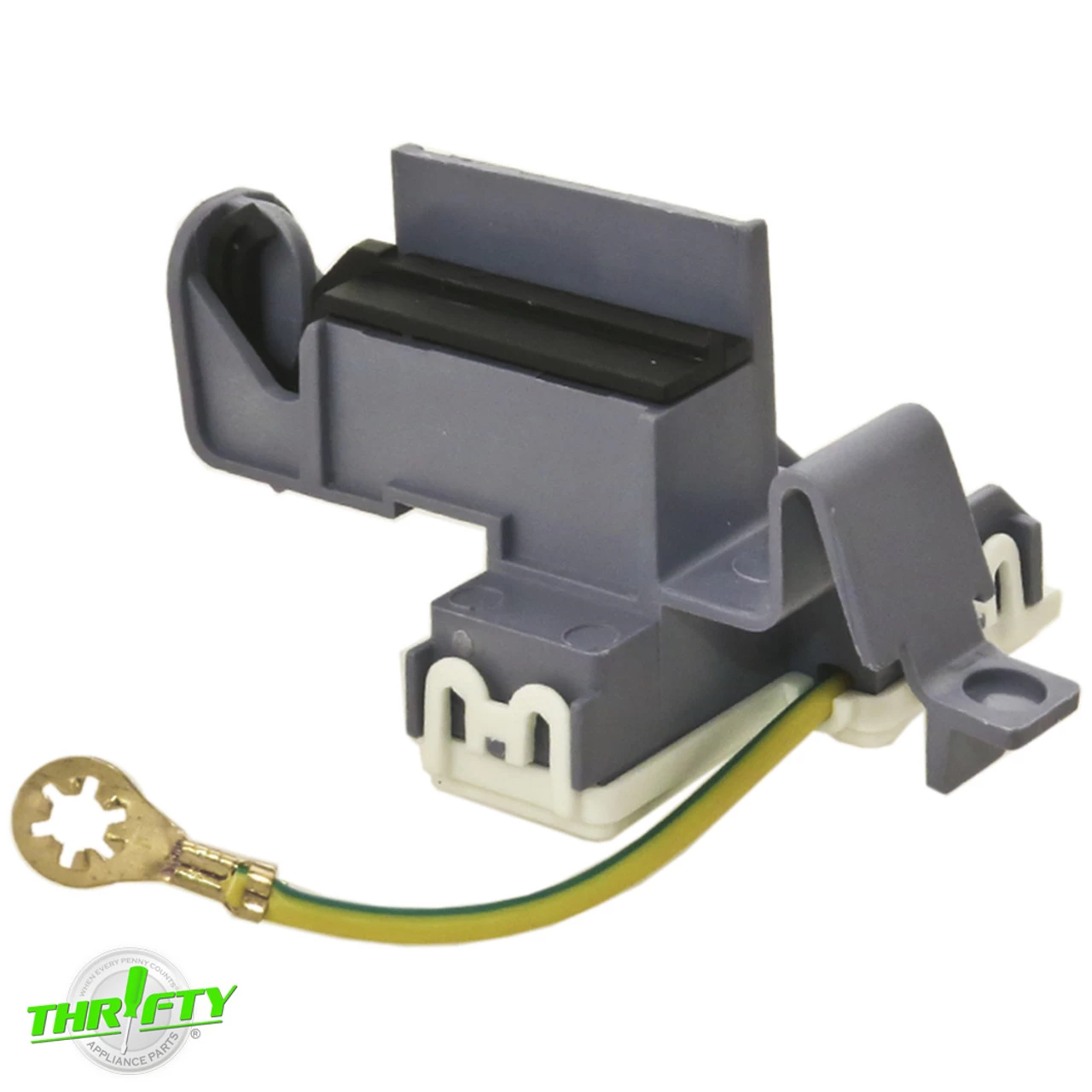

8318084 Washer Lid Switch For Whirlpool / Maytag / Roper

Replacement lid switch assembly used for some Admiral, Amana, Crosley, Estate, Inglis, Kenmore, KitchenAid, Magic Chef, Maytag, Roper, and Whirlpool washer models.

Directly Replaces: WP8318084, 8318084, WP8318084VP, ES8084, TJ90ES8084, 11480-61, 1018522, AH886960, AP3180933, AP6012742, EA886960, EAP11745957, PD00002474, PS11745957, PS886960.

Features:

• Secures the lid during the wash cycle on top loading washer models.
• Used on some direct drive top load washers.
• Has 3 flat terminals that the harness plugs onto.
• Located under the control panel on the top rear left corner of the unit.
• Includes (1) Lid Switch Assembly with Grounding Wire.

 Specifications:

• Color: Gray / White.
• Material: Plastic Housing.
• Electrical Specs: 125-250V, 60 / 50-60 Hz, 1/2 HP.
• Dimensions: 3″L x 2″W x 1-15/16″H.
