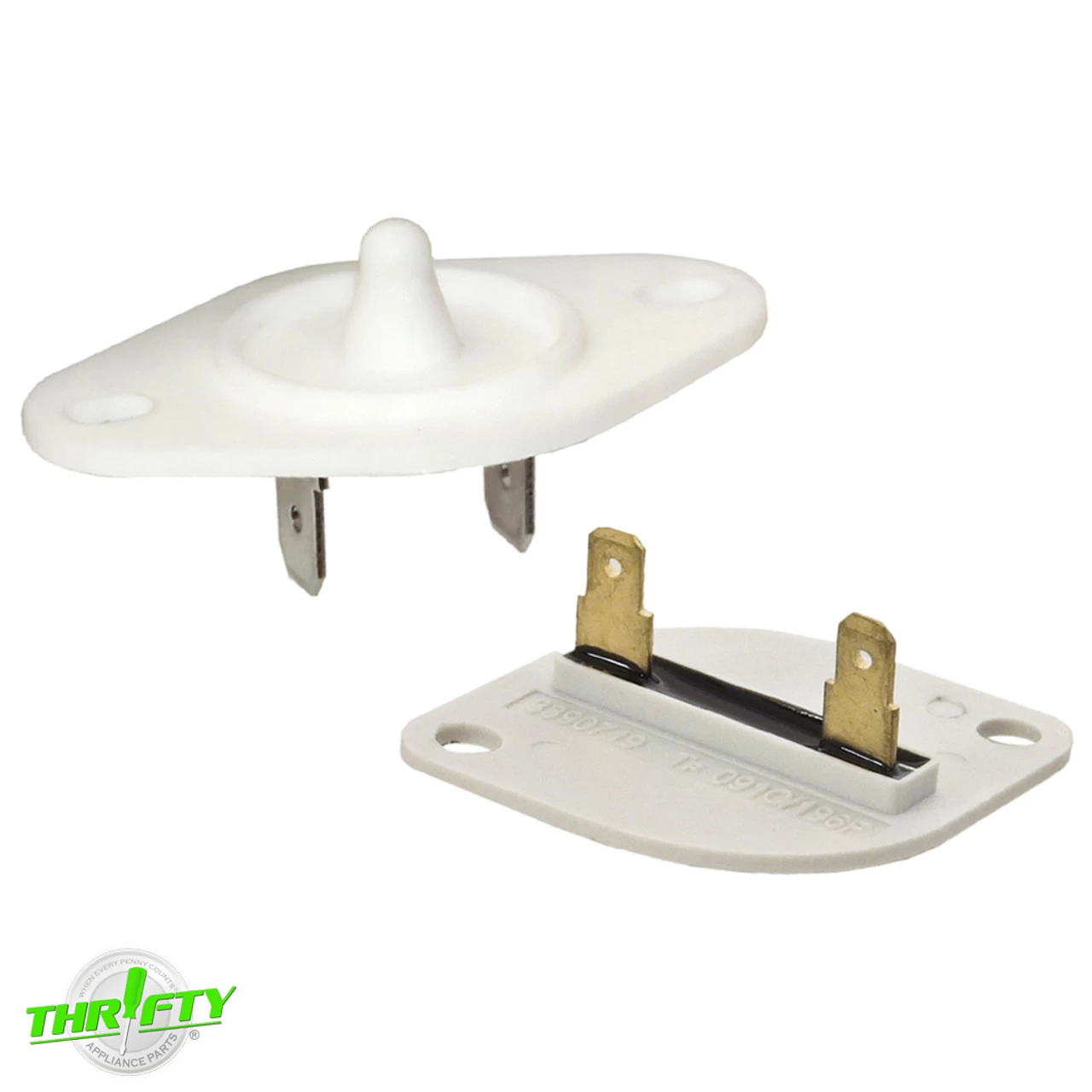

Replacement thermal fuse and thermistor control used for some Kenmore, KitchenAid, Maytag, and Whirlpool dryer models.
Directly Replaces: WP8577274, WP8577274VP, 8577274, 3976615, 3390292, 3406294, 772546, ER8577274, ER8577274, TH7274, 1181075, AH993287, AP6013514, AP3919451, EA993287, EAP11746740, PD00002401, PS993287, PS11746740, WP3390719, 3390719, WP3390719VP, 279650, 660877, 688841, 690198, 690798, 3389639, 3389640, 15-198, 80004, ET402, G4AP0401, 2923, AP6008309, EA344958, EAP11741444, PD00002330, PS11741444.
Features:
- Thermistor located on the blower housing next to the thermal fuse.
- Thermal fuse located on the exhaust duct.
- Includes (1) Thermistor, (1) Single Use Thermal Fuse.
APN3390719Â Thermal Fuse Specifications:
- Color: White /Black / Brass.
- Material: Metal / Plastic.
- Electrical Specs: 190°F single blow (non-resettable) limiter.
- Overall Dimensions: 2″L x 1-1/2″W x 7/8″H.
APN8577274Â Thermistor Specifications:
- Color: White.
- Material: Metal / Plastic.
- Finish: Matte.
- Electrical Specs: 10K Ohms @ 70° F.
- Dimensions: 2″L x 1-3/8″W x 1″H.
Testing tip: Thermistors do not have continuity, they show resistance. Therefore, to test it you need a multimeter that measures ohms. With the power disconnected from the dryer, connect the multimeter to the thermistor. Then use a hair dryer to blow hot air over the thermistor. As the thermistor becomes hotter, its resistance should decrease. If the resistance doesn’t change when the temperature changes, then thermistor should be replaced.
