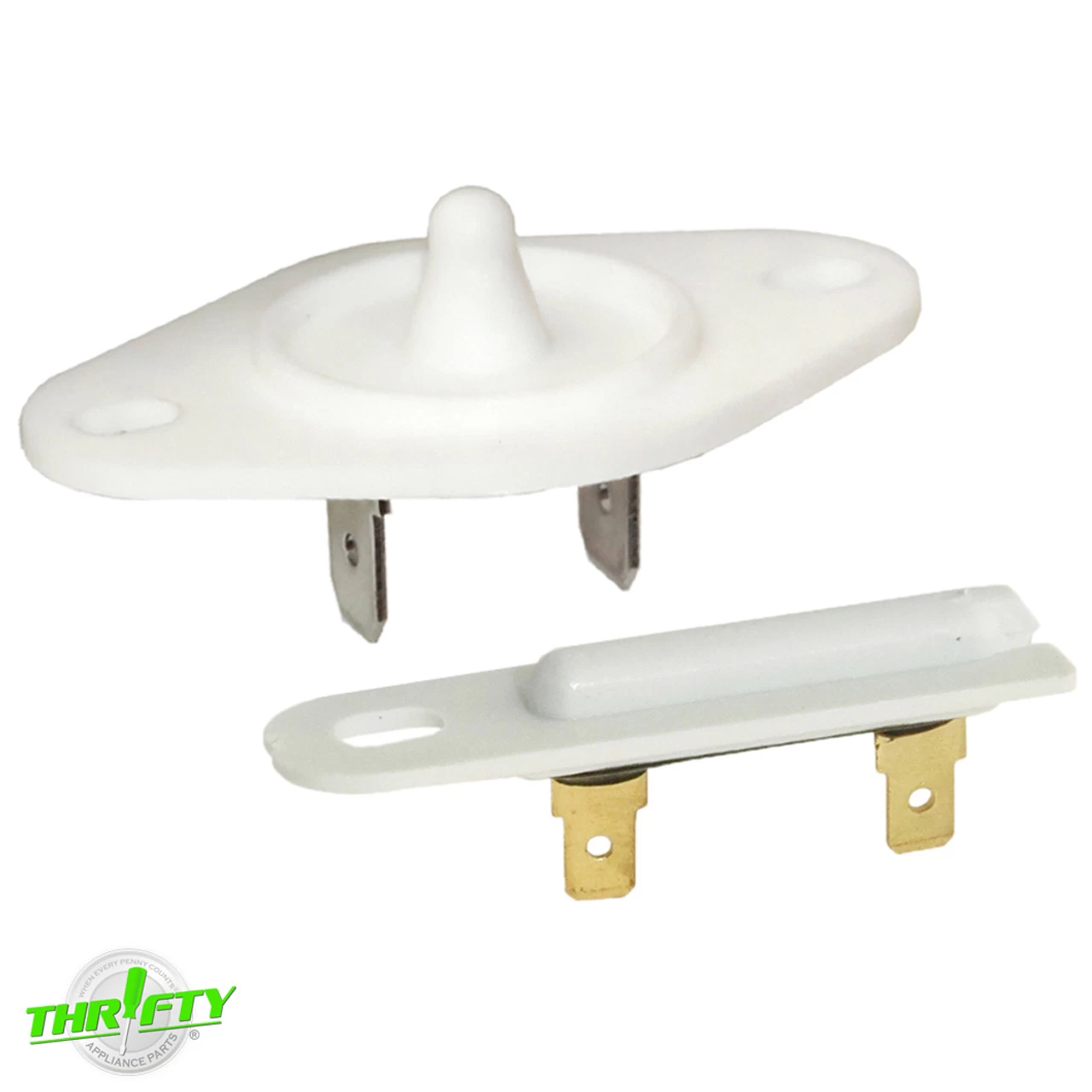

8577274 3392519 Dryer Thermistor & Fuse Kit For Whirlpool / Maytag

Replacement thermistor control and thermal fuse used for some Kenmore, Maytag, and Whirlpool dryer models.

Directly Replaces: WP8577274, WP8577274VP, 8577274, 3976615, 3390292, 3406294, 772546, ER8577274, ER8577274, TH7274, 1181075, AH993287, AP6013514, AP3919451, EA993287, EAP11746740, PD00002401, PS993287, PS11746740.

Features:

• Kit includes (1) Thermistor, (1) Thermal Fuse.
• Testing tip: Thermistors do not have continuity, they show resistance. Therefore, to test it you need a multimeter that measures ohms. With the power disconnected from the dryer, connect the multimeter to the thermistor. Then use a hair dryer to blow hot air over the thermistor. As the thermistor becomes hotter, its resistance should decrease. If the resistance doesn’t change when the temperature changes, then thermistor should be replaced.

APN8577274 Thermistor Control Specifications:

• Color: White.
• Material: Metal / Plastic.
• Finish: Matte.
• Electrical Specs:
• 10K Ohms @ 70° F.
• Dimensions: 2″L x 1-3/8″W x 1″H.

APN3392519 Thermal Fuse Specifications:

• Color: White / Black / Brass.
• Material: Metal / Plastic.
• Electrical Specs: 196°F single blow (non-resettable) limiter.
• Overall Dimensions: 3/4″L x 9/16″W x 2″H.
• Additional Dimensions: 3/16″ spade terminals.
