D7824706Q Refrigerator Ice Maker & Valve For Maytag / Amana / Whirlpool

Replacement ice maker and water valve kit used on some  Admiral, Amana, Crosley, Jenn-Air, Kenmore, KitchenAid, Maytag, and Whirlpool refrigerator models.

Directly Replaces: 1110702A, D7824706Q, 0056504, 0056599, 0056605, 0056606, 0311155, 0312578, 0312738, 0312739, 0312740, 10549201, 10563707, 10563708, 61005508, 61005508A, 67001263, 68111-1, 68972-1, 68972-4, 8170937, 915772, 95091-1, 95098-1, 95109-1, D7767601, D7824701, D7824702, D7824703, D7824704, D7824705, D7824705Q, D7824706, D7824706QVP, R0154025, R0156628, R0156629, R0156669, R0161059, R0161061, R0167201, R0183135, R0194462, R0194462A, R0194666, R0950064, W10122519, W10190978, Y0056504, Y0056599, Y0056606, Y0312578, Y0312738, Y0312740, Y689724, YR0161061, RIM501, RIM900, WR30X10039, WIM, ERWIM, WR30X10039, WR30X0298, WR30X298, RIM900, ERWIM, TJ90RIM900, 915772, 948376, AH2121513, AH759623, AP3964878, AP4135008, AP3205120, EA759623, EAP2121513, PD00002516, PS759623, PS2121513, WP67005154, 67005154, 67003818, 8208153, 8208275, WP67005154VP, WV5154, 12544114, K-75985, 1071263, AP6010439, EAP11743618, PD00003171, PS11743618.

Features:

• Creates ice cubes to be stored in the ice bin.
• Included ice maker kit harness uses a flat style plug. However, some units may need to re-use the harness from the original ice maker for proper installation.
• Water inlet valve uses a 1/4″ inlet and 5/16″ outlet.
• Push connect style water valve.

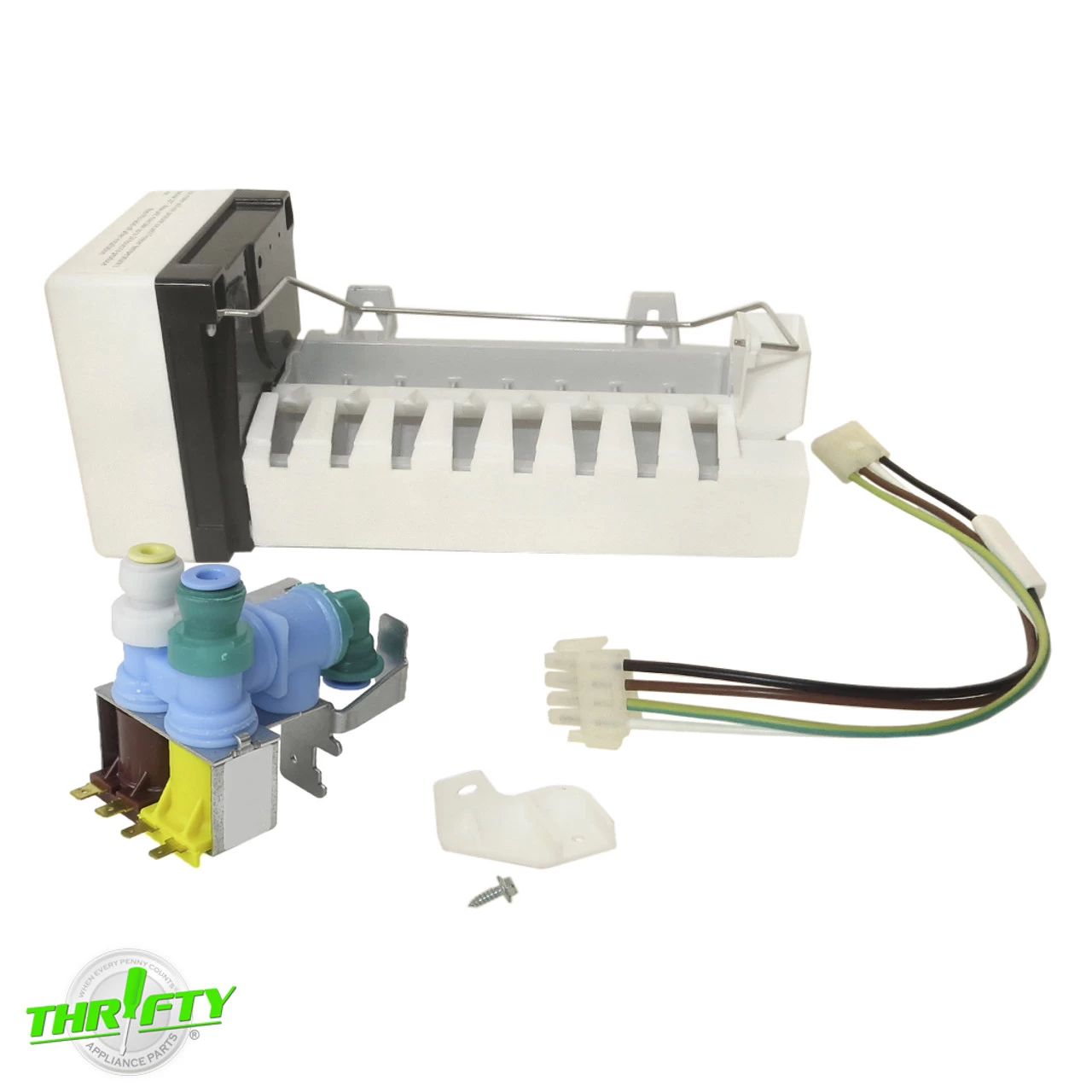

• Includes (1) 8-Cube Ice Maker Assembly with Bail Arm, (1) 4-Wire Harnesses, (1) Water Valve & Bracket Assembly. Installation Hardware, Instructions, (1) Water Valve & Bracket Assembly.

APN1110702A Ice Maker Kit Specifications:

• Color: White / Black / Gray.
• Material: Plastic / Metal.
• Overall Dimensions: 11-1/4″L x 4-5/8″W x 4-3/4″H.
• Additional Dimensions: Wire harness measures 14-1/4″L.
• View Instructions.

APN67005154 Water Valve Specifications:

• Color: Blue / Green / Yellow/ Brown.
• Material: Plastic / Metal.
• Electrical Specs: 110/120V, 50/60Hz, W1:20 watts / W2:35 watts.
• Dimensions: 4-1/2″L x 3-3/16″W x 3-7/8″H.
