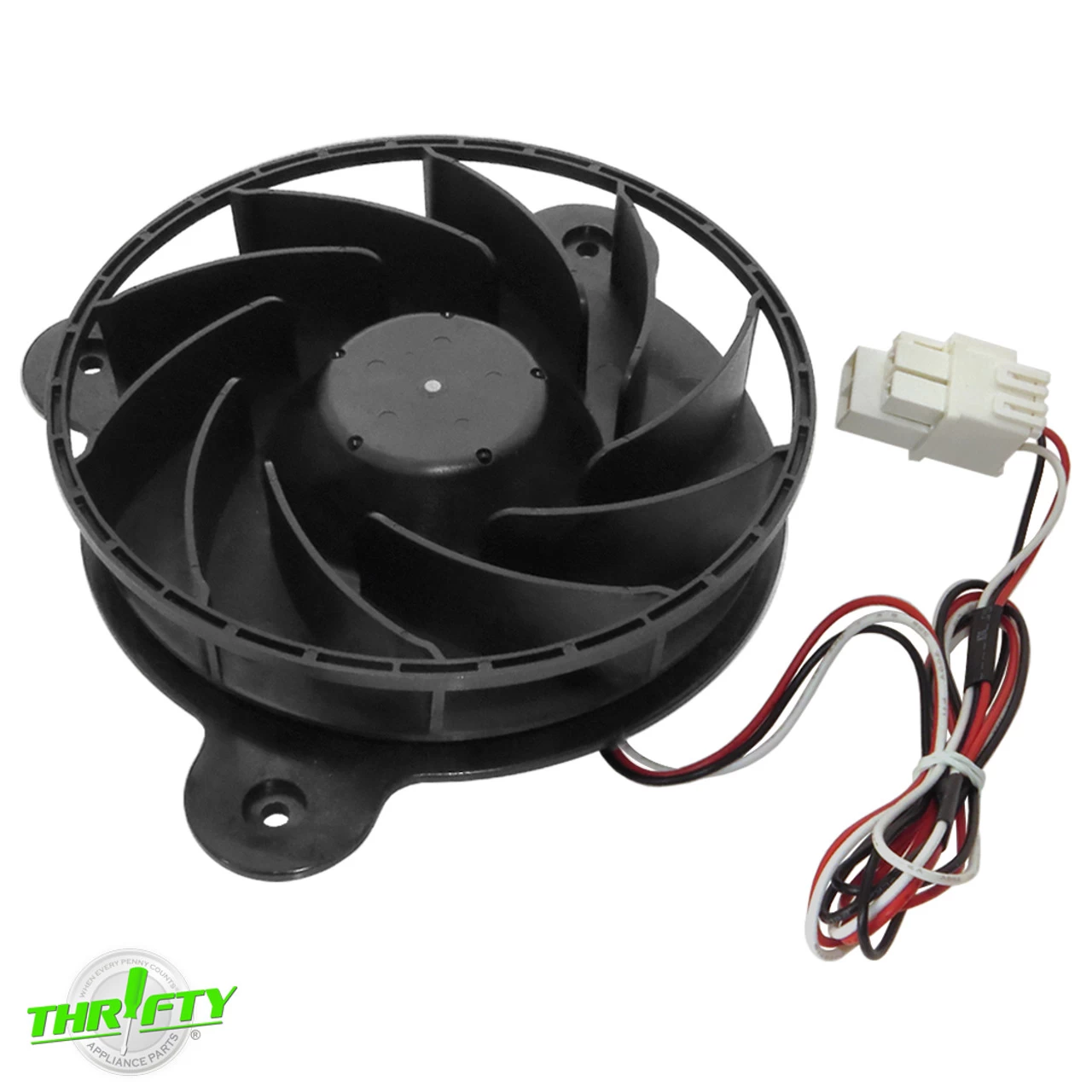

DA31-00334C Refrigerator Evaporator Fan Motor For Samsung

Original price was: $39.75.Current price is: $27.83.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

Replacement evaporator fan motor used for some Samsung refrigerator models.

Directly Replaces: DA31-00334C, DA31-00287B, DA96-00968A, DA31-00305A, 4976115, AP6803162, EAP12590897, PD00075168, PS12590897.

Features:

Pulls air through the evaporator coils to remove heat from the circulating air within the unit.
Typically used on bottom mount units.
Includes (1) Evap Fan & Motor Assembly with 3-Wire Harness.

Specifications:

Color: Black with Black/Red/White Harness.
Material: Plastic / Metal.
Electrical Specs: 12VDC, 0.26A.
Overall Dimensions: 4-7/8″L x 1-5/16″W x 4-5/8″H.
Additional Dimensions: Harness extends 26″ from fan assembly. Fan Blade is 4-3/4″ diameter.

Compatible Models:
