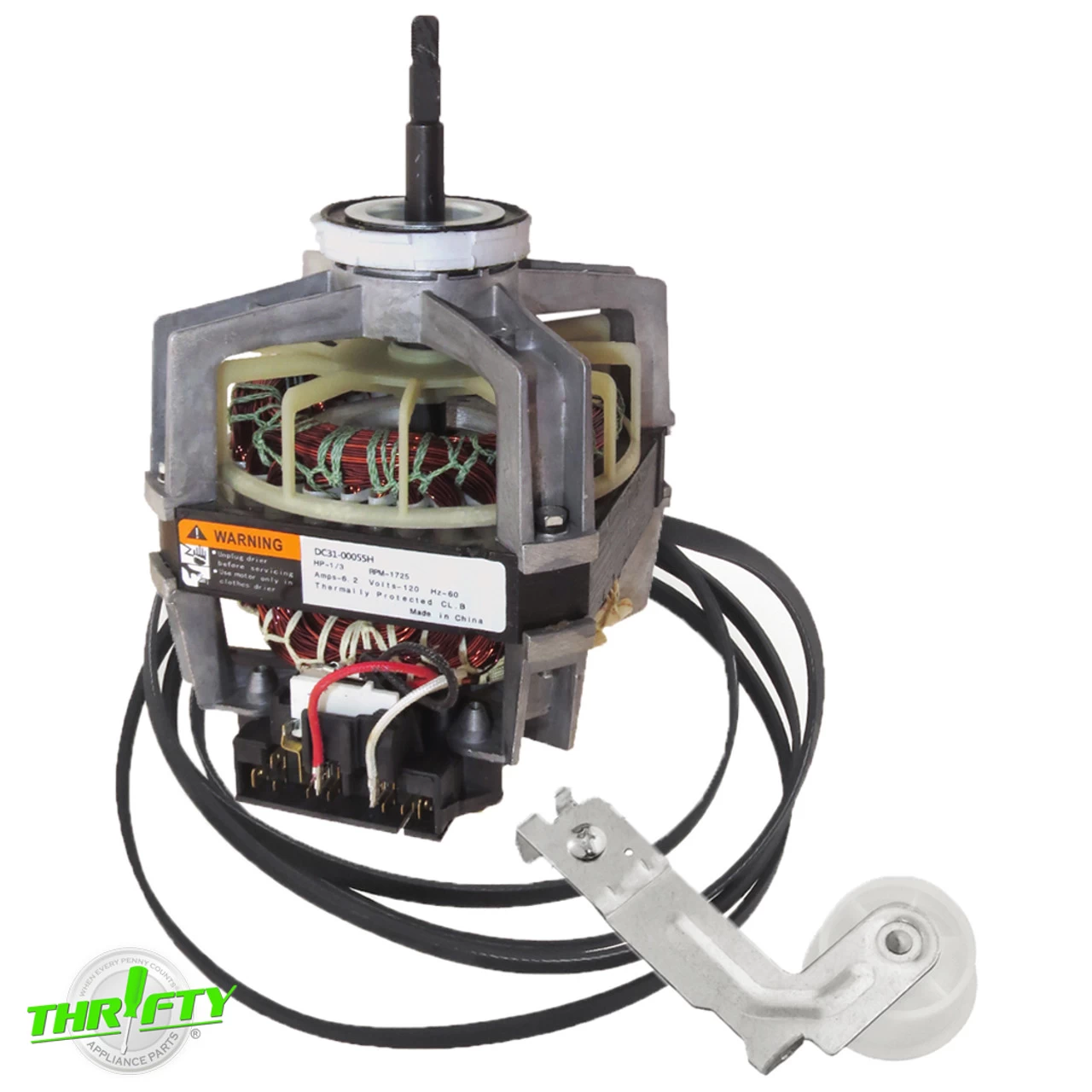

DC31-00055H DC93-00634A 6602-001655 Dryer Motor / Pulley / Belt For Samsung / Kenmore

Replacement motor, idler pulley, spring, and drive belt used for some Kenmore and Samsung dryer models.

Directly Replaces: DC31-00055G, DC31-00055H, DFS270ZSEL1, LP055H, 2813208, AP5332630, AP5331095, EAP4204648, PD00027132, PS4204648, PS4204647, DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, B06XKB5FS, DE634A, 4455850, AP6038887, EAP11771601, PD00032419, PS11771601, 6602-001655, 6602-001314, LB1655, 5PH2337, 1935594, AP4373659, EAP2407938, PD00002012, PS2407938, DC61-01215B, DC61-01215A, 2069087, AP4211487, EAP4206154, PD00027514, PS4206154.

Features:

• Work together to drive the rotation of the drum.
• Motor with threaded shaft on one end, belt pulley on the other end.
• Pulley with new heavy duty style with ball bearing.
• 5-Rib, 4 Groove Belt.
• Includes (1) Drive Motor Assembly, (1) Idler Arm and Pulley Assembly, (1) Installation Screw, (1) 5-Rib Belt, (1) Idler Spring.

APNDC31-00055H Motor Specifications:

• Color: Gray / White / Black / Copper.
• Material: Metal / Plastic.
• Electrical Specs: 120V, 60Hz, 6.2A, 1/3HP, 1725RPM, CL.B.
• Overall Dimensions: 10-1/8″L x 5-7/8″W x 5-3/8″H.

APNDC93-00634A Idler Arm and Pulley Specifications:

• Color: White / Gray.
• Material: Plastic / Metal
• Overall Dimensions: 6″L x 1-9/16″W x 3-7/8″H.
• Pulley Dimensions: 2-7/16″ diameter (including lip); 2-1/16″ diameter (excluding lip).

APN6602-001655 Belt Specifications:

• Color: Black.
• Material: Rubber.
• Overall Dimensions: 92″L x 5/16″W x 1/8″H.

APNDC61-01215B Tension Spring Specifications:

• Material: Metal.
• Dimensions: 2-5/8″L x 5/8″W x 1″H.
