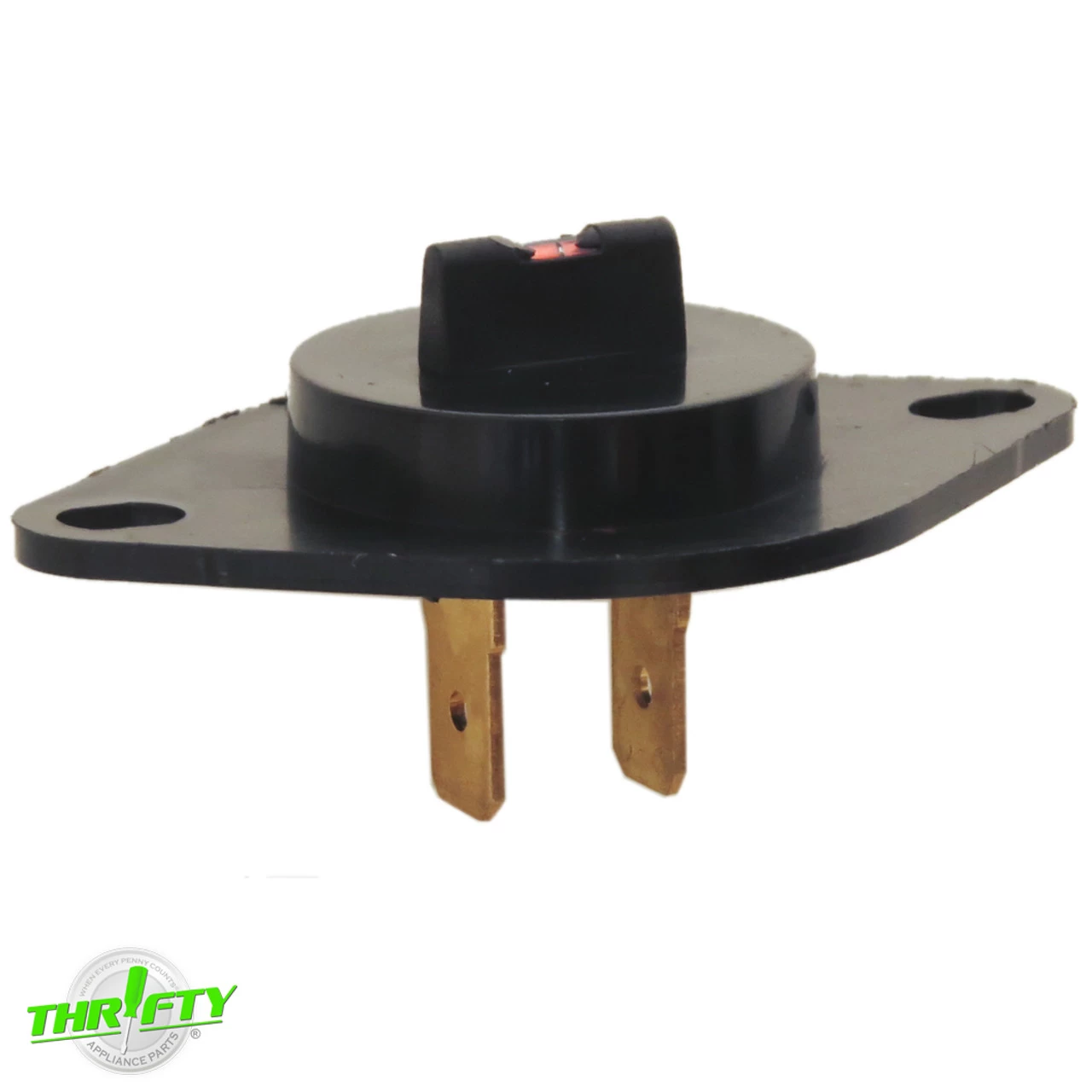

DC32-00007A Dryer Thermistor For Samsung / Maytag

Replacement thermistor used for some Kenmore, Maytag, and Samsung dryer models.

Directly Replaces: DC32-00007A, 35001191, DE0007A, N3S1-K41, N3SI-K41, 1185513, 2068429, AH2038482, AP4201716, AP4045224, AP6008688, EA2038482, EAP2461163, PD00001996, PS2461163, PS4204984, PS2038482, PS11741828.

Features:

• Heat sensor that monitors the air temperature inside the drum.
• 10K Ohms @ 77° F.
• Includes (1) Thermistor.

Specifications:

• Color: Black.
• Material: Metal / Plastic.
• Overall Dimensions: 2″L x 1″W x 1-7/8″H.
• Additional Dimensions: 5/8″ between mounting holes (center to center).

Testing tip: Thermistors do not have continuity, they show resistance. Therefore, to test it you need a multimeter that measures ohms. With the power disconnected from the dryer, connect the multimeter to the thermistor. Then use a hair dryer to blow hot air over the thermistor. As the thermistor becomes hotter, its resistance should decrease. If the resistance doesn’t change when the temperature changes, then thermistor should be replaced.
