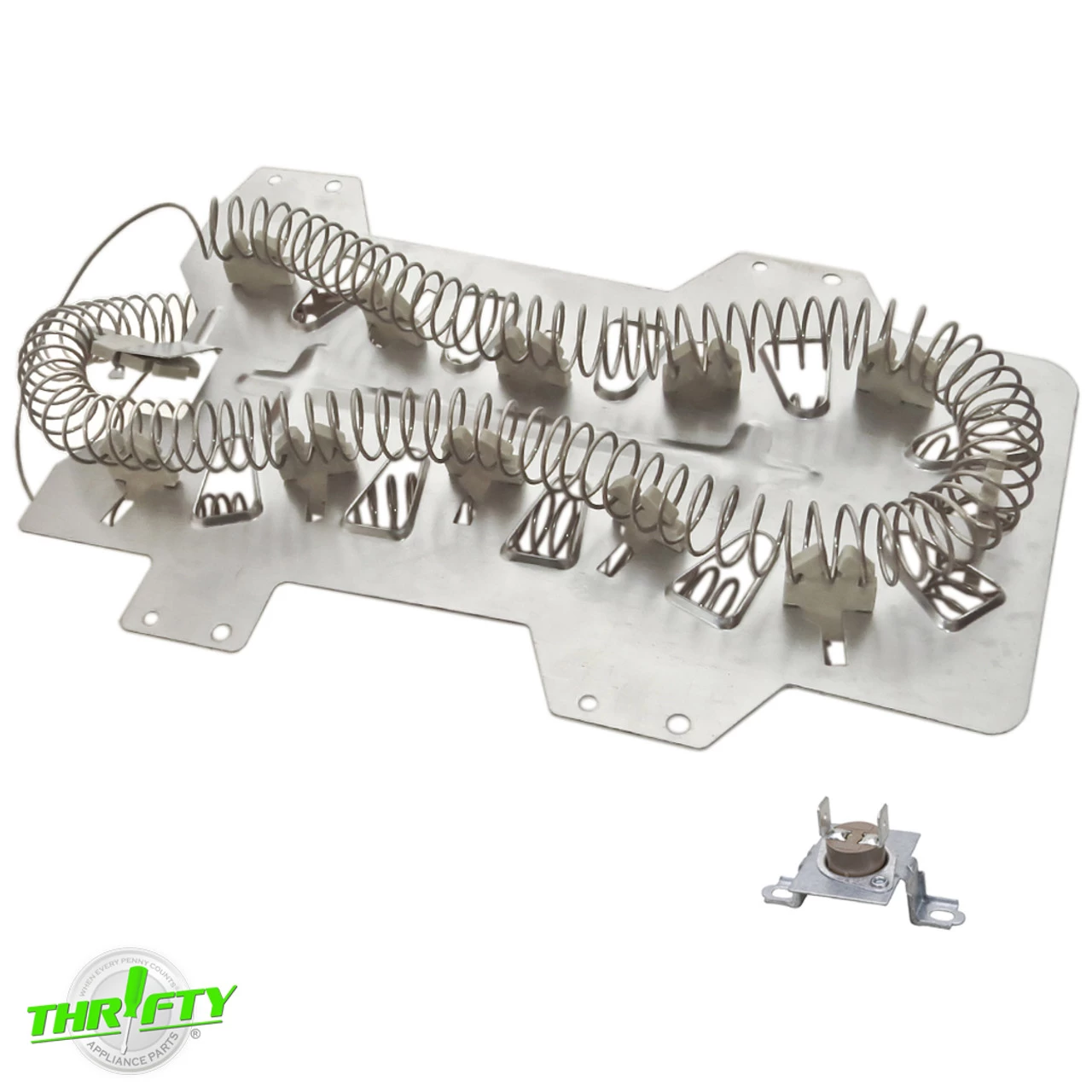

DC47-00019A DC96-00887A Dryer Heater & Therm. For Samsung / Maytag / Amana

Replacement heating element and thermostat used for some Amana, Kenmore, Maytag, and Samsung dryer models.

Directly Replaces: DC47-00019A, 35001247, WP35001247, WP35001247VP, TJDC47-00019A, 2068550, 1185561, AP6008695, AP4201899, PS11741835, PS4205218, PS2038533, EAP2038533, PD00001991, EAP11741835, PD00002996, WP35001193 35001193, DC96-00887A, 1185515, AH2038484, AP6008689, EA2038484, EAP11741829, PD00003365, PS2038484, PS11741829.

Features:

• Must re-use the housing from the old heating element.
• Insulators and restring already attached for easy installation.
• Fuse is located on the heating element or housing.
• Includes (1) Heating Element, (1) Non-resettable Thermal Fuse.

APNDC47-00019A Heater Specifications:

• Material: Metal / Ceramic.
• Electrical Specs: 240V, 5300W.
• Overall Dimensions: 17″L x 6-1/2″W x 2-1/2″H.

APNDC96-00887A Thermal Fuse Specifications:

• Color: Gray / White.
• Material: Porcelain / Metal.
• Electrical Specs: 250V, 25A, 320°F.
• Dimensions: 2-1/4″L x 1-1/4″W x 1-1/4″H.
