DC93-00154A Dryer Complete Heater Assembly For Samsung

Original price was: $98.75.Current price is: $69.13.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

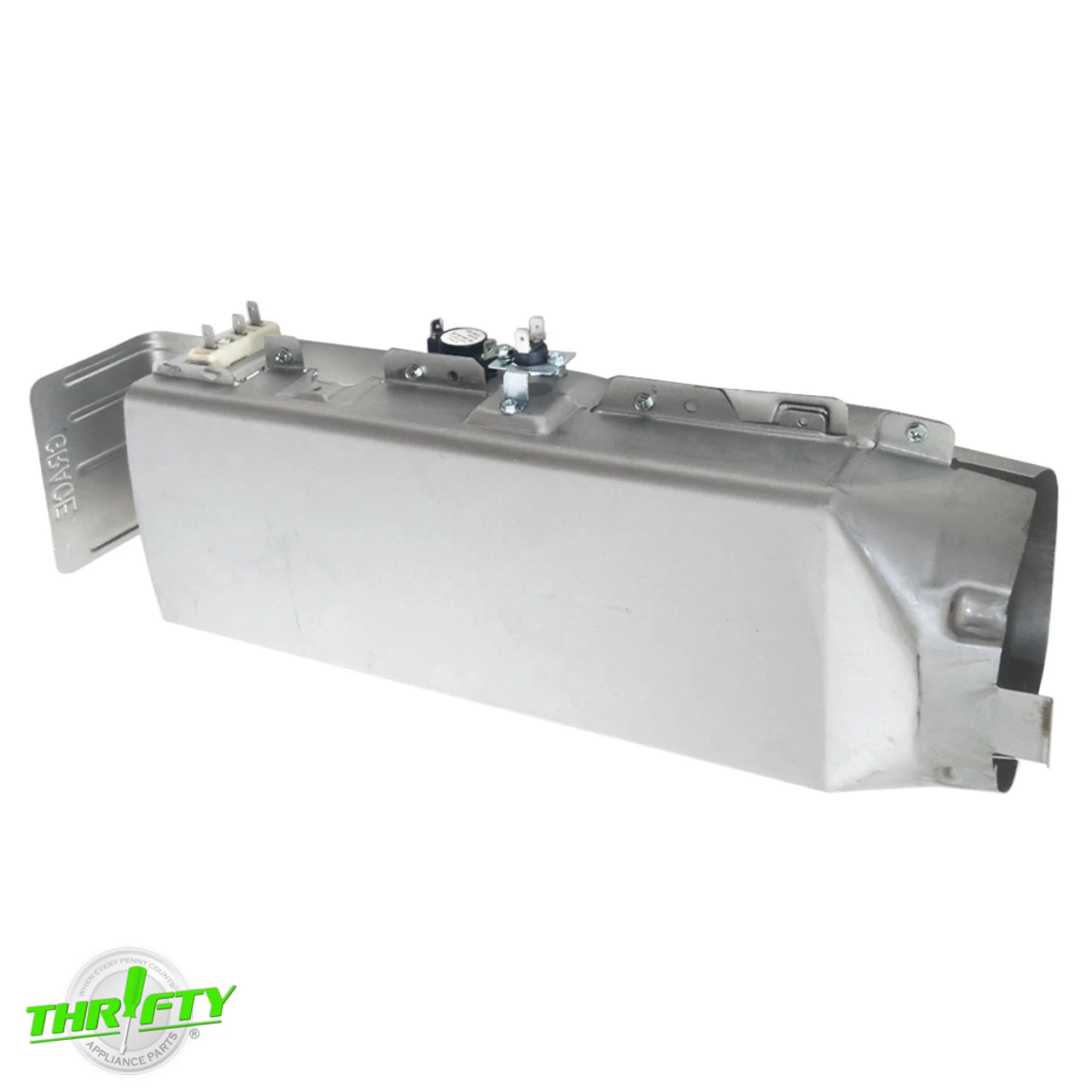

Replacement complete heater assembly with housing, thermostat, and fuse used for some Samsung dryer models.

Directly Replaces: DC93-00154A, 3282568, AP5582094, PS4216214, EAP4216214, PD00002235.

Features:

Produces heat while the dryer is in operation.
8-Coil Heating Element.
Fully assembled in a metal housing with hi-limit thermostat and thermal fuse.
Includes (1) 3-Terminal Heater Assembly with L260-50F Hi-Limit Thermostat and Thermal Fuse.

This is a 3-wire/terminal heater. If your dryer has 2 wires that connect to the heating element, you may need part number APNDC97-14486A.

Specifications:

Color: Gray / Black.
Material: Metal / Plastic / Ceramic.
Electrical Specs: 240V, 3700W.
Dimensions: 19-1/2″L x 5-1/8″W x 7-3/4″H.
Additional Dimensions: Approx. 5″ diameter duct opening; Opposite end opening measures approx. 5-1/2″L x 3-3/4″W.

Compatible Models:

How do I find my model number?

Don’t see your model listed? Submit this form to get help finding the right part.
