DC97-14486A DC32-00007A DC47-00016A Dryer Heater / Thermistor / Fuse For Samsung

Replacement heater, thermal fuse, and thermistor used for some Kenmore, Maytag, and Samsung dryer models.

Directly Replaces: DC97-14486A, DC97-14486D, DC97-08891A, DE486A, 1795935, AP4342351, EAP2432265, PD00002003, PS243226, DC32-00007A, 35001191, DE0007A, N3S1-K41, N3SI-K41, 1185513, 2068429, AH2038482, AP4201716, AP4045224, AP6008688, EA2038482, EAP2461163, PD00001996, PS2461163, PS4204984, PS2038482, PS11741828, WP35001087 35001087, DC47-00016A, L0016A, 2068545, 1122480, AP4201894, AP6008681, EAP4205213, EAP11741821, PD00005341, PD00003747, PS4205213, PS11741821.

Features:

• Produces and monitors heat while the dryer is in operation.

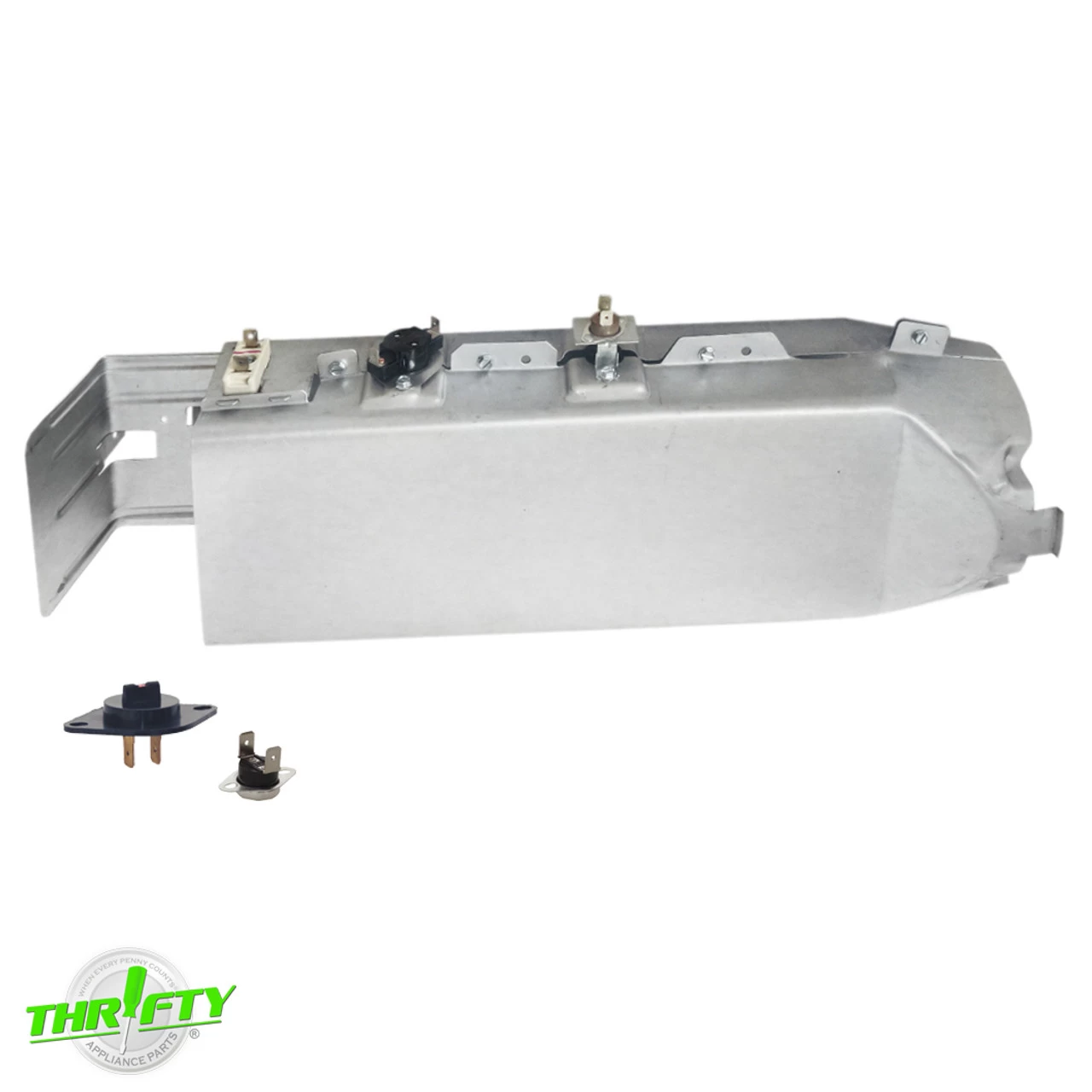

• Kit includes (1) Thermistor, (1) Thermal Fuse, (1) Heater Assembly.

APNDC97-14486A Heater Specifications:

• Material: Metal / Ceramic.
• Electrical Specs: 240V, 5300W.
• Overall Dimensions: 20-1/4″L x 7″W x 5-1/4″H.

APNDC47-00016A Thermal Fuse Specifications:

• Color: Black.
• Material: Plastic / Metal.
• Electrical Specs: 125/250V, 25A, 85°C – 35°C, 185°F.
• Dimensions: 11/16″L x 13/16″W x 1-1/4″H.
• Additional Dimensions: 1″ between mounting holes (center to center).

APNDC32-00007A Thermistor Specifications:

• Color: Black.
• Material: Metal / Plastic.
• Electrical Specs: 10K Ohms @ 77° F.
• Overall Dimensions: 2″L x 1″W x 1-7/8″H.
• Additional Dimensions: 5/8″ between mounting holes (center to center).

Testing tip: Thermistors do not have continuity, they show resistance. Therefore, to test it you need a multimeter that measures ohms. With the power disconnected from the dryer, connect the multimeter to the thermistor. Then use a hair dryer to blow hot air over the thermistor. As the thermistor becomes hotter, its resistance should decrease. If the resistance doesn’t change when the temperature changes, then thermistor should be replaced.
