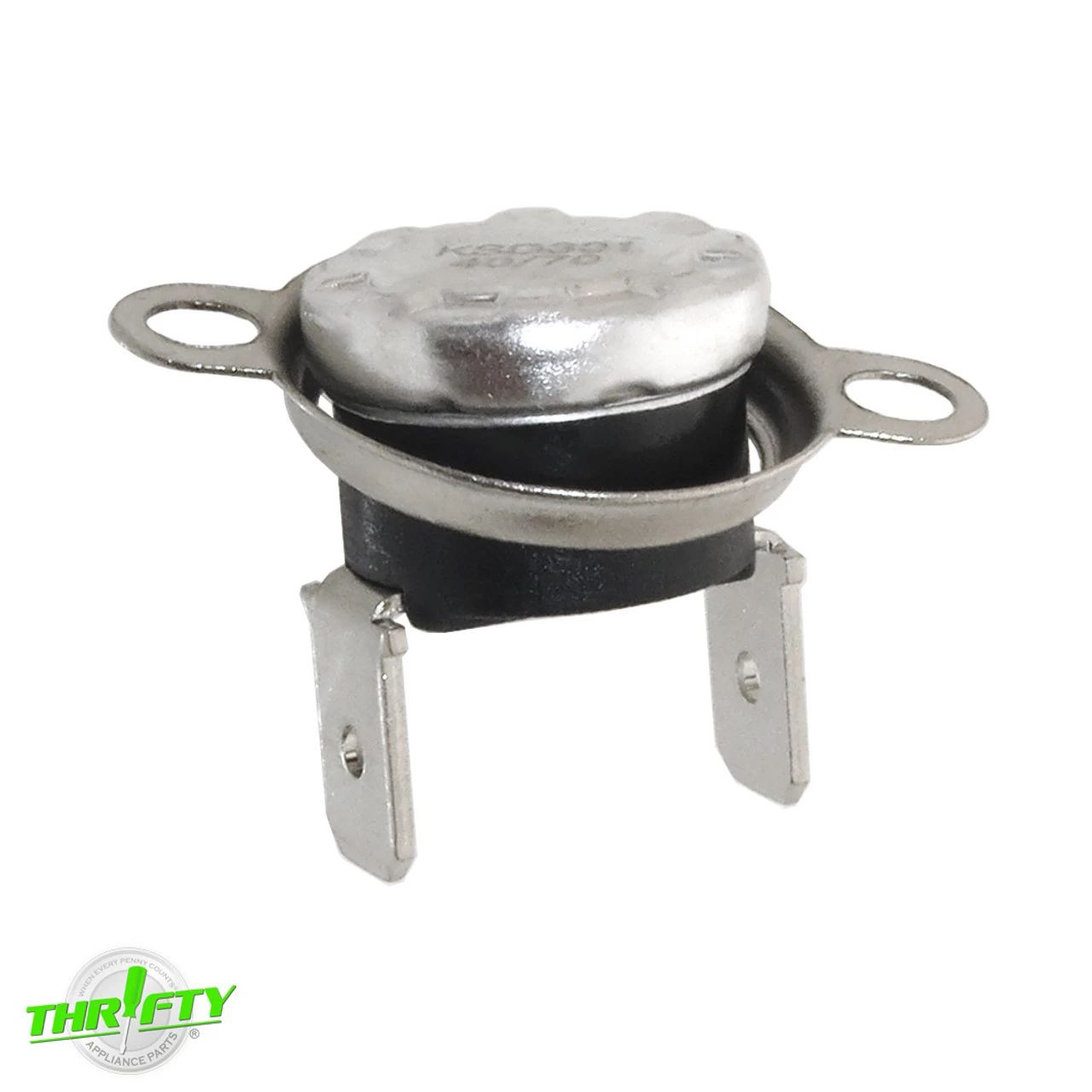

DE47-20034A WB27X709 Microwave Thermal Switch For Kenmore

Replacement thermal switch used for some Amana, GE, Hotpoint, Jenn-Air, Kenmore, Maytag, and Samsung over-the-range microwave models.

Directly Replaces: DE47-20034A, DE47-20117A, WB27X709, WB27X0709, KSD-40LC 70, 2079750, 255580, AH240278, AP2025678, AP4219754, EA240278, EAP240278, EAP4226431, PD00025212, PD00036724, PS240278, PS4226431.

Features:

• Vent thermal switch.
• Normally open at room temperature and closes when it gets hot, to automatically run the vent fan.
• Includes (1) High Limit Thermostat.

Specifications:

• Color: Black / Gray.
• Material: Plastic / Metal.
• Finish: Satin.
• Dimensions: 1-3/16″L x 3/4″W x 13/16″H.
• Additional Dimensions: Mounting holes measure 15/16″ apart (center to center).
