W10006355 W10404050 W10240513 Washer Shift Actuator & Latch For Whirlpool / Maytag / Amana

Replacement shift actuator, lid latch, and strike kit used for some Whirlpool, Admiral, Amana, Crosley, Inglis, Kenmore, Maytag and Roper washer models.

Directly Replaces: WPW10404050, W10404050, W10404050VP, W10744659, W10238287, 1938607, AH3497627, AP5263307, EAP3497627, PD00003596, PS3497627, WPW10240513, W10240513, WPW10240513VP, 1873013, AH2579805, AP4514459, AP6017583, EA2579805, EAP11750882, PD00004624, PS2579805, PS11750882.

Features:

• Lid latch indicates to the washer when the lid is closed, allowing it to begin the next cycle; Strike secures the lid during the wash cycle on top loading washer models.; Actuator shifts the transmission from agitate to spin.
• Used on top loading units.
• Latch with 4 Wire Plug Connection.
• Shift actuator with reverse plug.

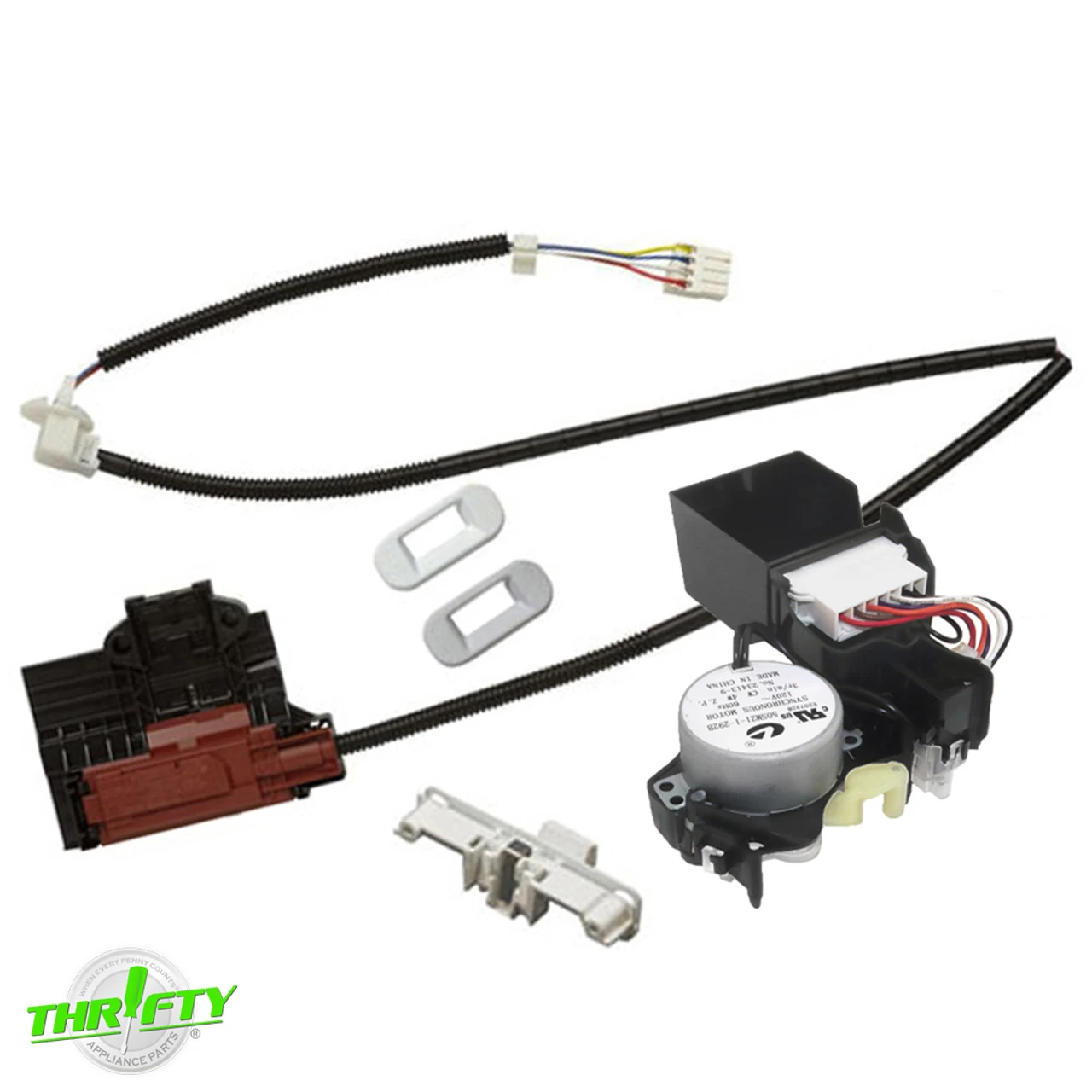

• Includes (1) Mode Shift Actuator with Adapter Plug and Housing, (1) Magnetic Lid Strike, (1) Lid Latch, (1) White Bezel, (1) Gray Bezel, Instructions.

APNW10006355 Shift Actuator Specifications:

• Color: White / Black / Gray with Multi-colored harness.
• Material: Plastic / Metal.
• Finish: Glossy.
• Electrical Specs: Synchronous motor, 120V, 60Hz, 4W, 3 rotations/min, CW rotation.
• Dimensions: 5″L x 4-3/4″W x 2-3/4″H.

*Note – This part has been redesigned by the manufacturer and now comes with an adapter wire harness. Additionally, the part now comes in a black housing instead of the original red housing.

APNW10404050 Lid Latch Specifications:

• Color: Gray / White / Black.
• Material: Plastic / Metal.
• Electrical Specs: 120V, 10Amp, 1/3 HP lock circuit..
• Switch Dimensions: 4-13/16″L x 4″W x 1″H.
• Additional Dimensions: Harness and plug measure approximately 43″L; Bezels measure 2-1/4″L x 1″W x 5/8″H, with approx. 1-13/16″ between bezel mounting holes (center to center).
• View Instructions.

APNW10240513 Strike Specifications:

• Color: White.
• Material: Plastic with Metal Spring Clip.
• Finish: Matte.
• Dimensions: 2-3/4″L x 13/16″W x 1-3/8″H.
