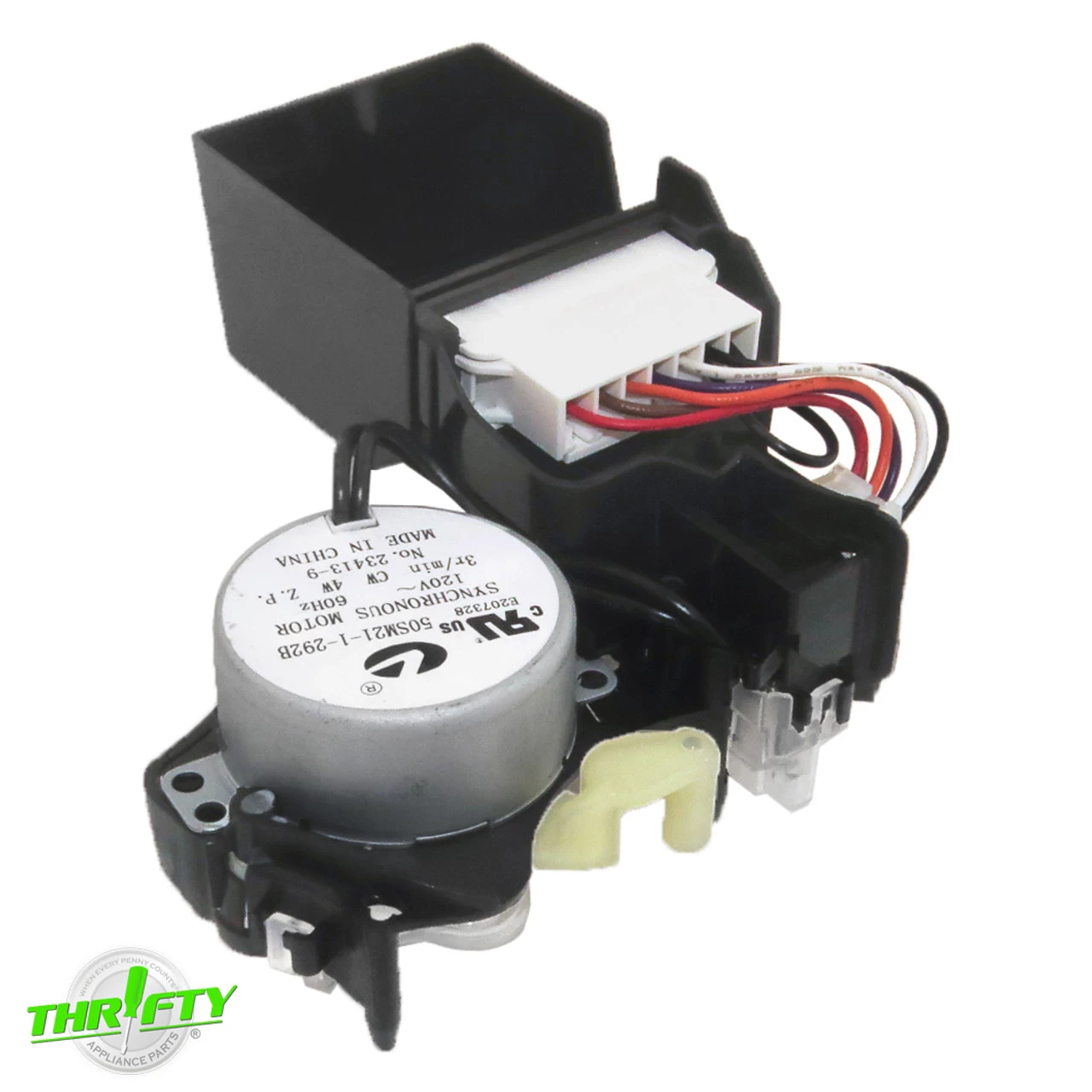

W10006355 Washer Shift Actuator For Whirlpool / Maytag

Original price was: $28.75.Current price is: $20.13.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

Replacement shift actuator used for some Admiral, Amana, Crosley, Inglis, Kenmore, Maytag, Roper, and Whirlpool washer models.

Directly Replaces: WPW10006355, W10006355, WPW10006355VP, W11198451, W11047472, 1719787, AP6014711, EAP11747977, PD00003701, PS11747977, 49TYZ-110, 49TYZ-E120A, KT-155052, KIT-155052.1_rev012, emz-Nr.: EG-330033, KT-157423.

Features:

Responsible for shifting the transmission from agitate to spin.
Typically used on top-loading washers.
Includes (1) Mode Shift Actuator with Adapter Plug and Housing.

*Note – This part has been redesigned by the manufacturer and now comes with an adapter wire harness. Additionally, the part now comes in a black housing instead of the original red housing.

Specifications:

Color: White / Black / Gray with Multi-colored harness.
Material: Plastic / Metal.
Finish: Glossy.
Electrical Specs: Synchronous motor, 120V, 60Hz, 4W, 3 rotations/min, CW rotation.
Dimensions: 5″L x 4-3/4″W x 2-3/4″H.

Compatible Models:
