W10404050 Washer Lid Latch For Whirlpool / Maytag / Amana

Original price was: $18.75.Current price is: $13.13.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

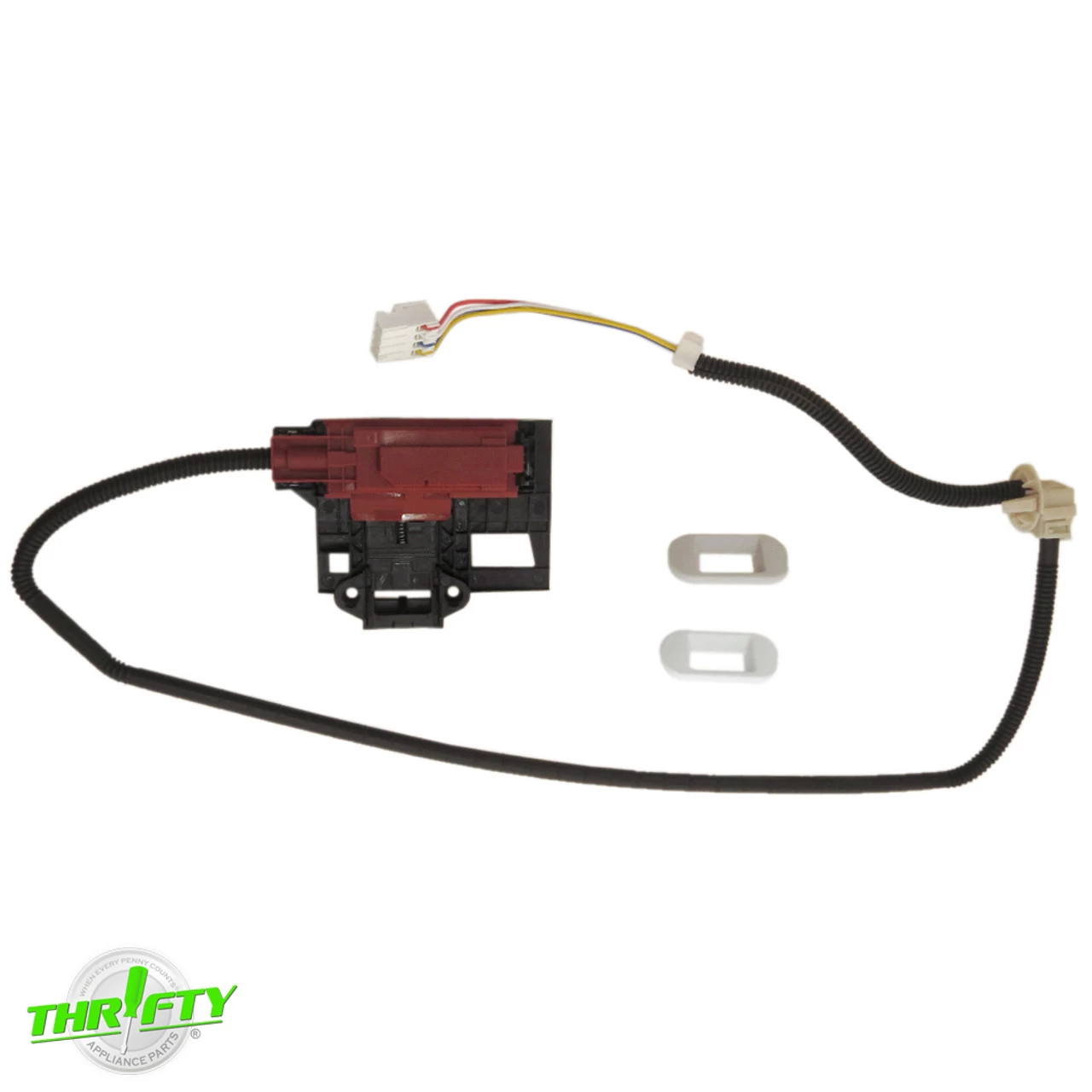

Replacement lid latch used for some Admiral, Amana, Crosley, Inglis, Kenmore, Maytag, Roper, and Whirlpool washer models.

Directly Replaces: WPW10404050, W10404050, W10404050VP, W10744659, W10238287, 1938607, AH3497627, AP5263307, EAP3497627, PD00003596, PS3497627.

Features:

Indicates to the washer when the lid is closed, allowing it to begin the next cycle.
Used on top loading units.
4 Wire Plug Connection.
Includes (1) Lid Latch, (1) White Bezel, (1) Gray Bezel, Instructions.

Specifications:

Color: Gray / White / Black.
Material: Plastic / Metal.
Electrical Specs: 120V, 10Amp, 1/3 HP lock circuit..
Switch Dimensions: 4-13/16″L x 4″W x 1″H.
Additional Dimensions: Harness and plug measure approximately 43″L; Bezels measure 2-1/4″L x 1″W x 5/8″H, with approx. 1-13/16″ between bezel mounting holes (center to center).
View Instructions.

Compatible Models:

How do I find my model number?

Don’t see your model listed? Submit this form to get help finding the right part.
