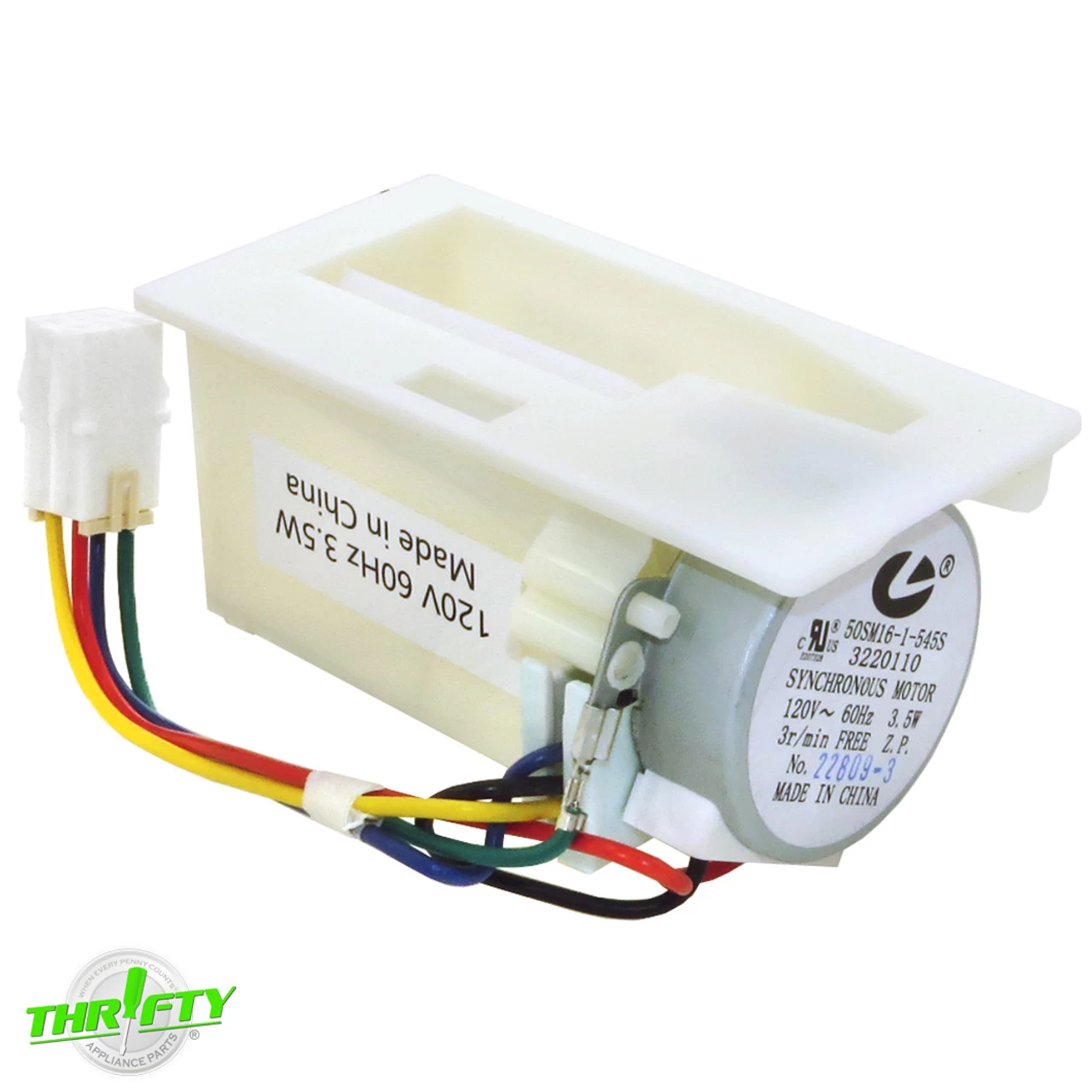

W10594329 Refrigerator Air Control Damper For Kenmore

Replacement air damper and motor control used for some Bosch, Dacor, Ikea, Jenn-Air, Kenmore, KitchenAid, Maytag, Thermador, and Whirlpool refrigerator models.

Directly Replaces: WPW10594329, W10207517, W10594329, 00798467, 798467, EG-350139.1, 3281328, 3280195, AP6023299, AP5806530, EAP11756641, EAP9492885, PD00048230, PD00037888, PS11756641, PS9492885.

Features:

• Controls a small door that opens/closes to allow cold air to flow from the freezer to the refrigerator section.
• Commonly used on some french door refrigerators.
• Includes (1) Air Damper & Synchronous Motor Assembly with Wire Harness.

Specifications:

• Color: Off-White / Gray / Multi Colored Harness.
• Material: Plastic / Metal / Styrofoam.
• Electronic Specs: 120V, 60Hz, 3.5W, 3r/min.
• Dimensions: 4-5/8″L x 2-1/4″W x 2-1/2″H.
• Additional Dimensions: Harness & plug measure 5-7/8″L.
