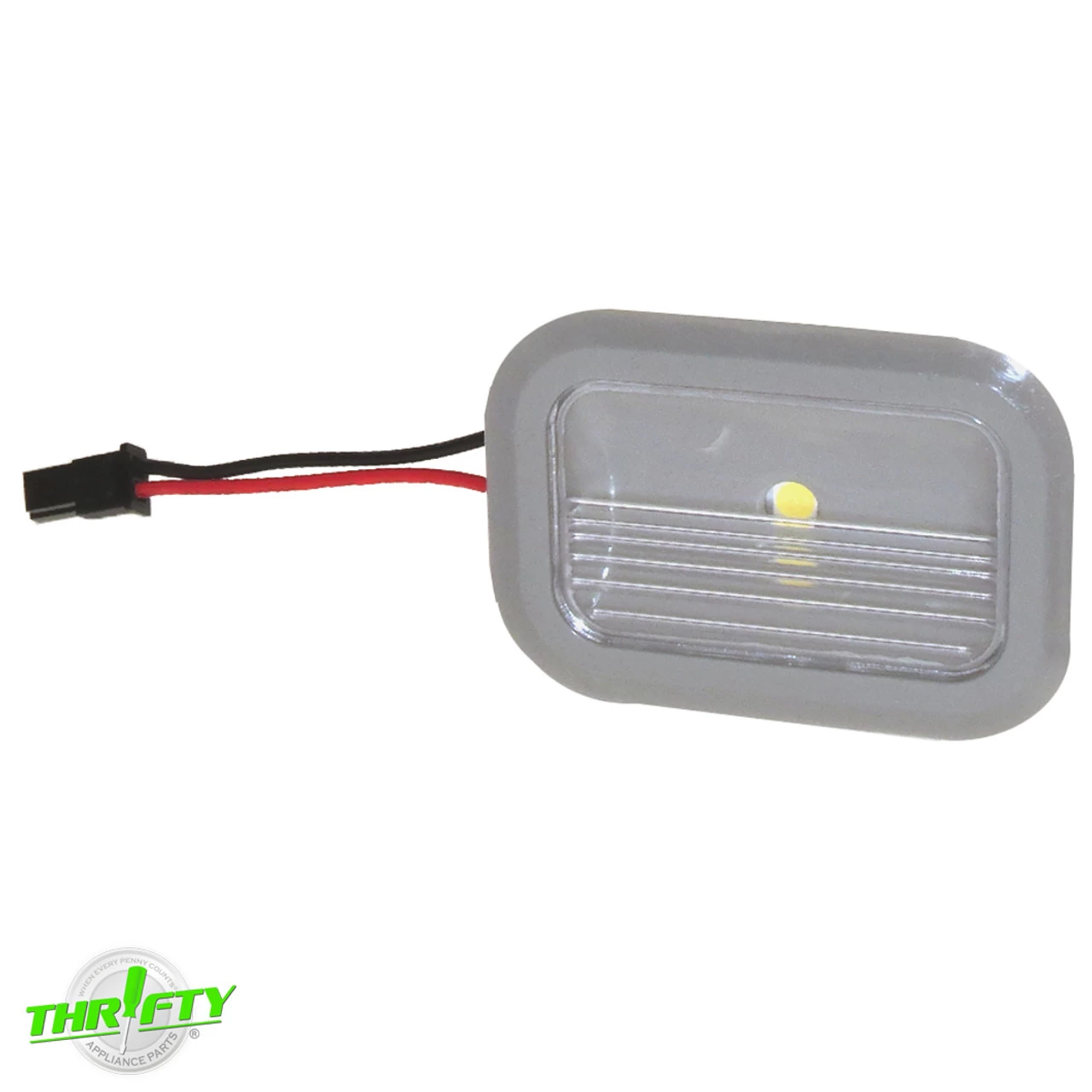

W10695460 W11174006 Refrigerator LED Light Module For KitchenAid / Whirlpool

Replacement LED light module used for some KitchenAid and Whirlpool refrigerator models.

Directly Replaces: W10695460, W11174006, W10559034, W10637315, W11174006, 4281442, 4843603, AP5959354, AP6285083, PD00041085, EAP11699720, EAP12348265, PS12348265, PS11699720.

Features:

• Works with other modules to light up the fridge or freezer cabinet.
• Typically used on french door units.
• LED light module with gray bezel.
• Small female pin connectors.
• Does not include additional connectors.
• Includes (1) LED Light Module with Harness.

Specifications:

• Color: Gray / Translucent.
• Material: Plastic / Metal.
• Finish: Glossy.
• Dimensions: 2-9/16″L x 1-13/16″W x 1/2″H.
• Additional Dimensions: Harness extends approx. 2-3/4″ from module.

*Some refrigerator LED lights operate in a series and tend to go out at the same time. Please be aware that it may take replacing multiple or even all LEDs within the series to completely resolve the lighting problem.

NOTE: Due to the sensitive nature of this item, it comes sealed in an anti-static bag. This bag safeguards the part from static build-up that can be damaging to it’s electronic components. Because of this, we are unable to accept returns for this part once the anti-static bag has been opened.
