W10712395 W10195416V Dishwasher Upper & Lower Wheel Set For KitchenAid / Whirlpool

Replacement upper & Lower rack wheel set used for some Kenmore, KitchenAid, and Whirlpool dishwasher models.

Directly Replaces: W10195416V, W10195416, W10195416VP, W10195418, ERW10195416, AP4567523, AP5983730, EAP11722152, PD00024134, PS11722152, W10712395, W10350375, W10250159, W10712395VP, 3516330, AP5957560, EAP10065979, PD00007293, PS10065979.

Features:

• Adjuster wheels adjust the height of the upper dish rack and allow it to roll out on the dishrack rails; Lower wheels clip directly onto dish rack for easy rolling in/out of the dishwasher.
• ‘New Style’ upper adjuster set is designed to replace older style assemblies.

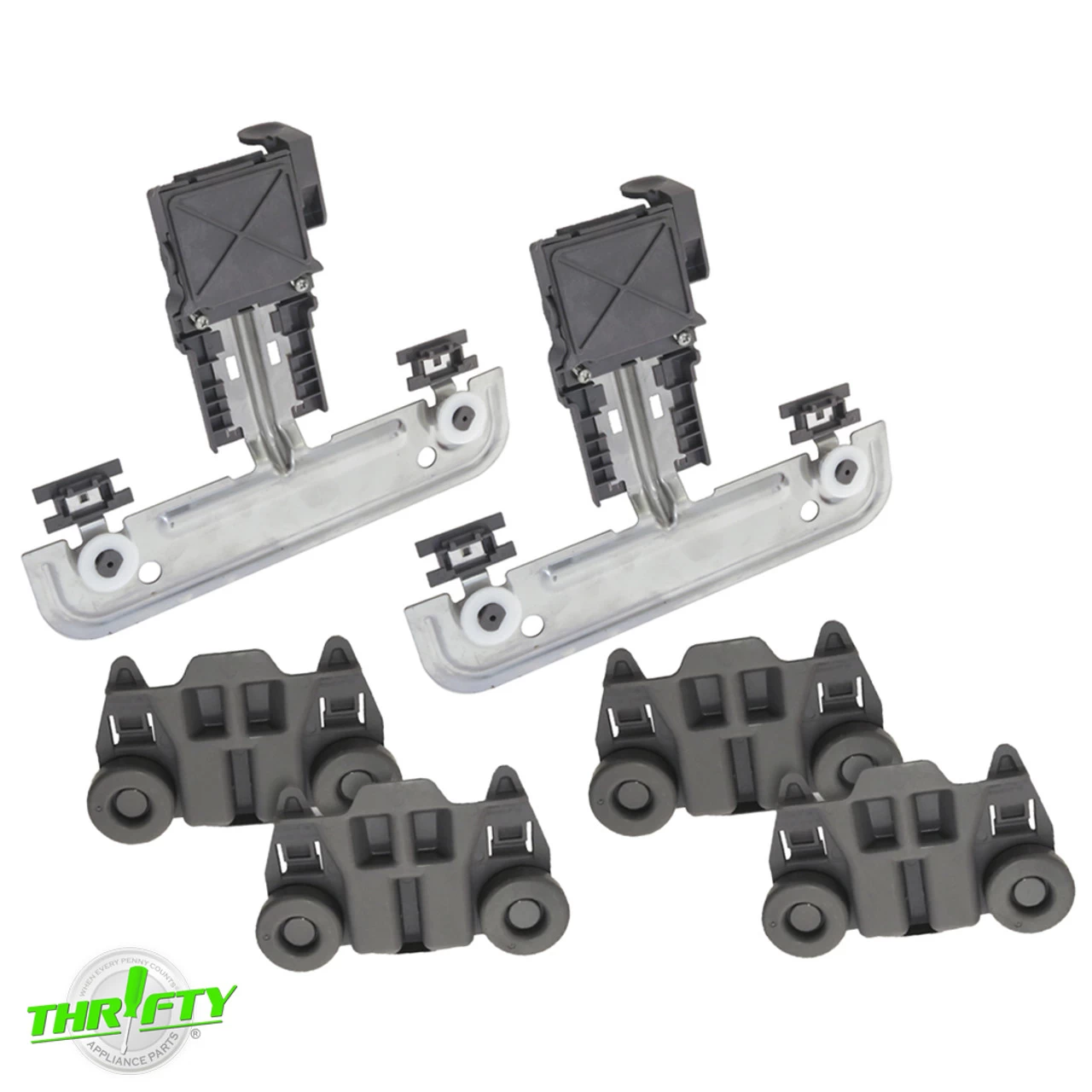

• Includes (4) Lower Dish Rack Roller Assembly, (2) Adjuster Wheel Brackets, (2) Adjuster Actuators with Thumb Pads, (2) Adjuster Arm Housings, (2) Adjuster Housing Covers, (4) Positioner Clips, (4) Screws.

APNW10195416 Lower Wheel Specifications:

• Color: Gray
• Material: Plastic.
• Finish: Glossy.
• Overall Dimensions: 5-1/2″L x 1″W x 2-7/8″H.

APNW10712395 Adjuster Wheel Specifications:

• Color: Gray.
• Material: Plastic / Metal.
• Finish: Semi-Gloss.
• Dimensions: Wheel Bracket measures 11-5/8″L x 1-1/8″W x 6-1/4″H; Housing measures 5-7/8″H x 3-1/8″W x 1-1/2″Deep; Actuator with thumb press measures approx. 3-1/2″W x 2-5/5″H x 1-1/2″Deep; Housing covers measure approx. 3-1/8″W x 3-1/8″H x 7/8″Deep; Positioner Clips measure approx. 1-7/8″W x 7/8″H x 3/8″Deep.
• Additional Dimensions: Each wheel measures approx. 1-1/4″ diameter.
