Replacement air diffuser used for some Ikea, Kenmore, KitchenAid, Maytag, and Whirlpool refrigerator models.
Directly Replaces:Â W11164593, W10837808, W10362947, W10749835, W10699904, W10750143, W10837808VP, W10869522, 4591183, AP6285040, EA12347986, PD00038794, PS12347986.
Features:
-
Controls a small door that opens/closes to allow cold air to flow from the freezer to the refrigerator section.
- Commonly used on some side by side refrigerators.

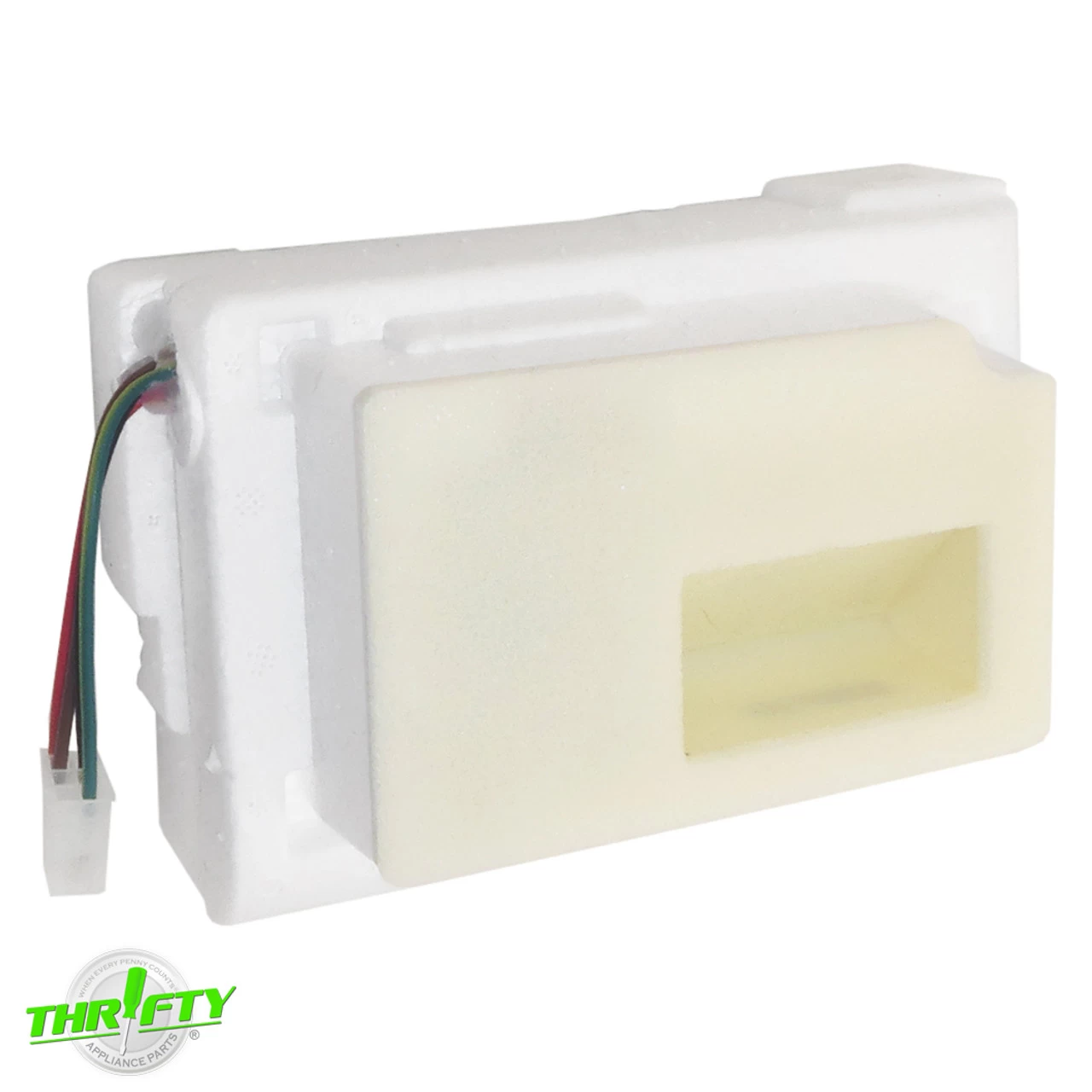

- Includes (1) Diffuser & Motor Assembly with 4-Wire Harness and Styrofoam Housing.
Specifications:
- Color: White with Multi Colored Harness.
- Material: Plastic / Metal / Styrofoam.
- Electronic Specs: 120V, 60Hz, 3.5W.
- Dimensions:Â 7″H x 4-3/4″W x 3-1/8″H.
- Additional Dimensions:Â Harness & plug measure approx. 3-3/4″L.
Compatible Models:
How do I find my model number?
