W11212745 W10721967 Washer Shift Actuator & Cam Kit For Whirlpool / Maytag

Replacement pulley, cam and shift actuator kit used for some Kenmore, Maytag, and Whirlpool washer models.

Directly Replaces: W11212745, W10389471, WPW10389471, W11112160, 4591111, AP6327693, EAP12349319, PD00043276, PS12349319,  W10721967, W10315818, W10006356, W10006352, W10006353, W10006354, W10006382, W10326374, W10536113, W10239973, W10818965, W11396423, W10721967VP, B00H3G7FR0, B00DM8LT2U, B00TYZYINC, B008DJM5CQ, B0156NFAGO, B00DZU8JPU, B008DJSB8I, B00TYZYHN8, B008DJM9JU, B008DJM4W2, B008DJM5X0, B00TYZYJSQ, LP1967, 3319979, AP5951296, EAP10057144, PD00005593, PS10057144.

Features:

• Work together to operate the washplate and spin the inner basket
• Shift actuator with reverse plug.
• Typically used on top-loading commercial washers.

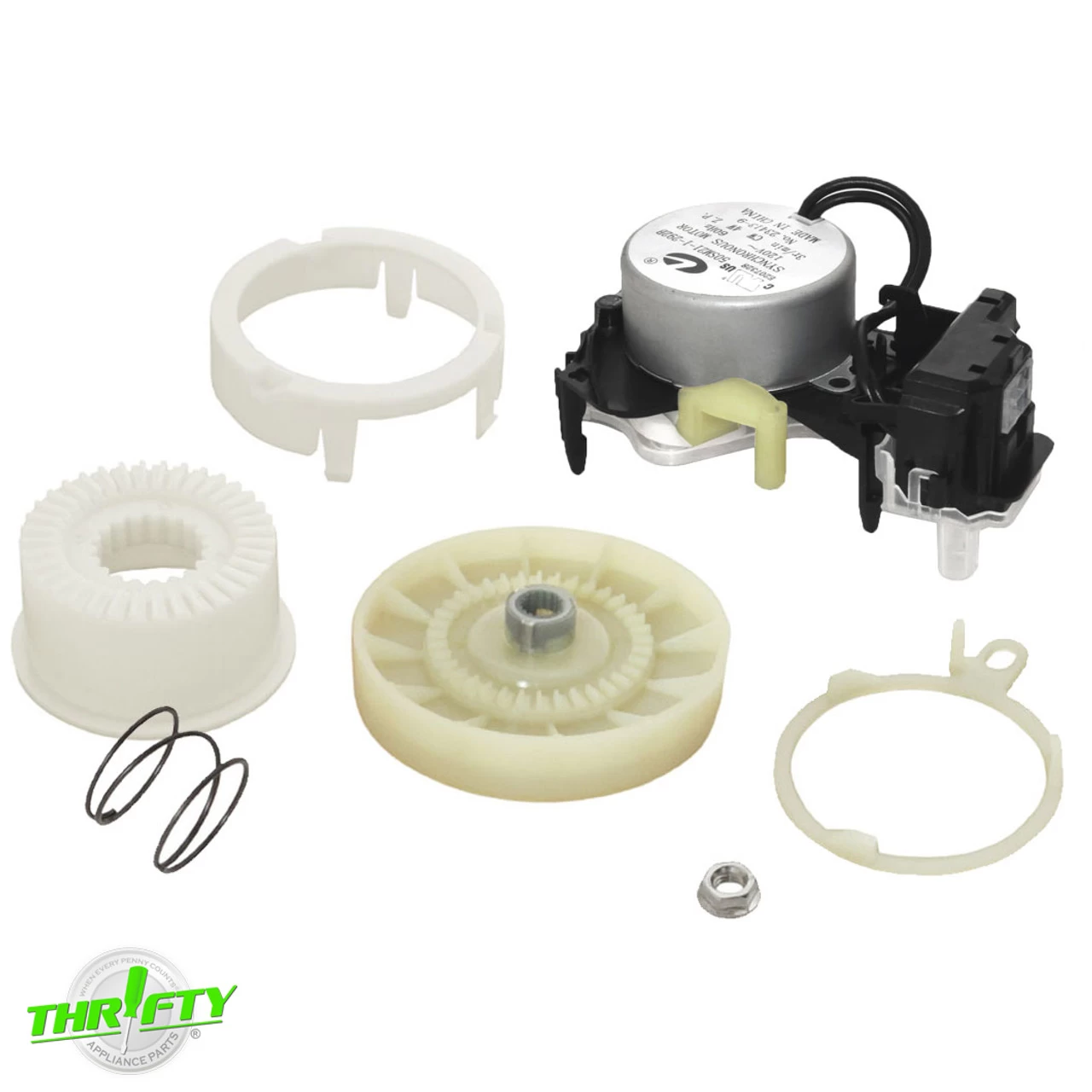

• Includes (1) Mode Shift Actuator with 6-Pin Plug, (1) Drive Pulley, (1) Basket Drive Gear, (1) Splutch Housing, (1) Cam Ring, (1) Spring, (1) Nut.

APNW11212745 Shift Actuator Specifications:

• Color: White / Black / Gray.
• Material: Plastic / Metal.
• Electrical Specs: Synchronous Motor, 120V, 60Hs, 4W, 3 Rotations/Min, CW Rotation.
• Dimensions: 4-1/4″L x 2-3/4″W x 1-7/8″H.

APNW10721967 Pulley & Cam Kit Specifications:

• Color: White / Gray.
• Material: Plastic / Metal.
• Pulley Dimensions: 4-3/8″L x 4-3/8″W x 1-3/16″H.
• Additional Dimensions: Drive gear measures 3-1/16″ diameter x 1-9/16″H; Splutch housing measures 3-3/8″ diameter x 1 3/16″H.
• View Instructions.
