WD19X10032 Dishwasher Drain Pump Impeller For GE / Hotpoint

Replacement impeller set used on some GE, Hotpoint, and Kenmore dishwasher models.

Directly Replaces: WD19X10032 DW105, WD01X1341, WD01X1487, WD12X0004, WD12X0005, WD12X0106, WD12X0354, WD12X354, WD12X4, WD12X5, WD16X0216, WD16X216, WD17X0039, WD17X0049, WD17X0055, WD17X0056, WD17X0057, WD17X0058, WD17X39, WD17X49, WD17X55, WD17X56, WD17X57, WD17X58, WD19X0038, WD19X0039, WD19X0043, WD19X0045, WD19X0050, WD19X0053, WD19X0054, WD19X0056, WD19X0058, WD19X0060, WD19X0062, WD19X10001, WD19X10002, WD19X10014, WD19X10036, WD19X38, WD19X39, WD19X43, WD19X45, WD19X50, WD19X53, WD19X54, WD19X56, WD19X58, WD19X60, WD19X62, WD1X1341, WD1X1487, 907946, AH259598, AP631386, EA259598, EAP259598, PD00022838, PS259598.

Features:

• Pushes water through the dishwasher.
• Used on WD26X10013 pumps.

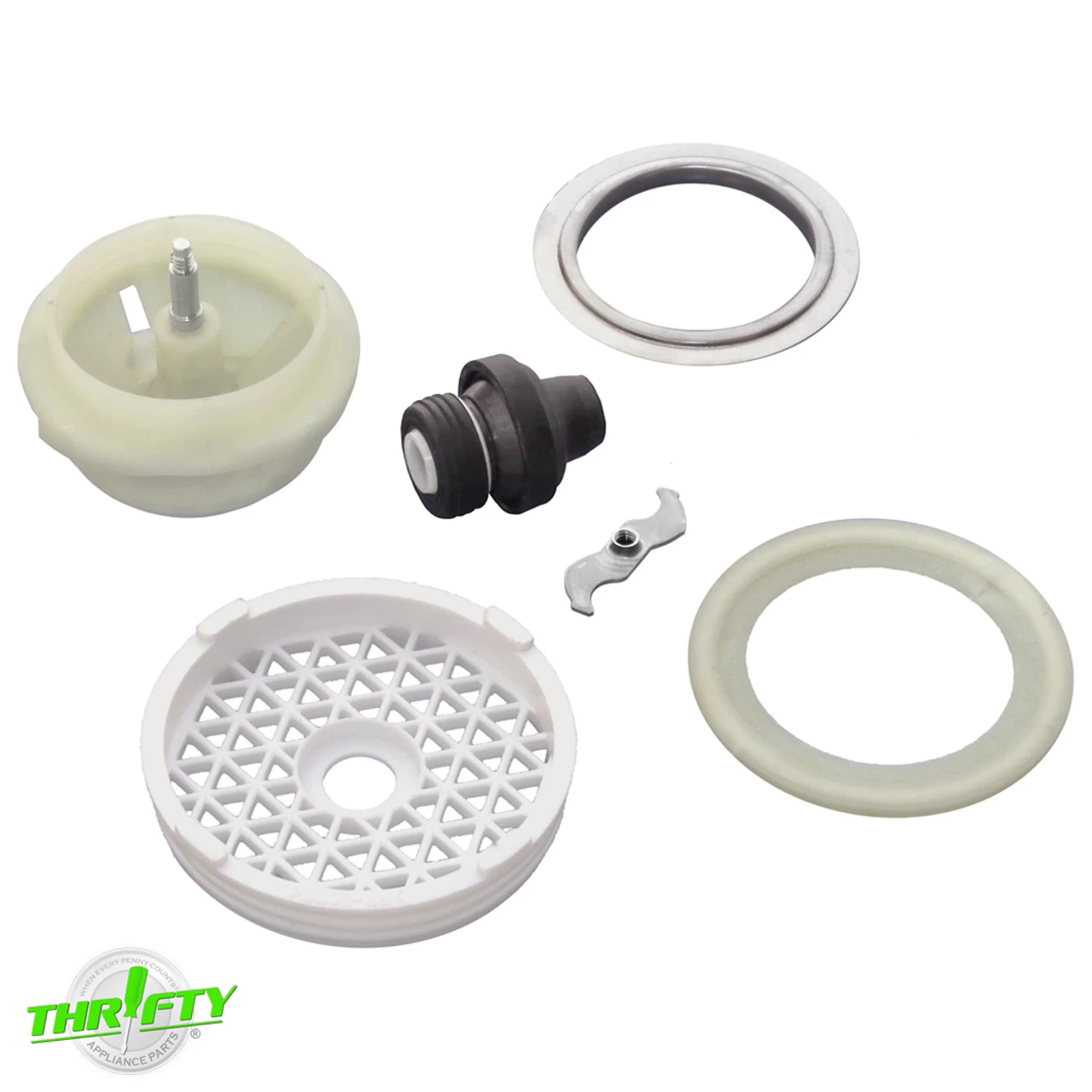

• Includes (1) Cutter Blade, (1) Grader, (1) Impeller, (1) Wear Ring (Metal), (1) Wear Ring Retainer,  (1) Pump Seal.

Specifications:

• Color: White / Gray / Black.
• Material: Plastic / Metal.
• Dimensions:
  • Cutter Blade: 1-1/2″L;
  • Grader: 2-13/16″ Diameter;
  • Impeller: 2-1/2″ Diameter x 1-5/8″W;
  • Wear Ring (Metal): 2-1/2″ Diameter;
  • Wear Ring Retainer: 2-11/16″ Diameter;
  • Pump Seal: 1-3/8″L x 1-1/8″ Diameter.

Compatible Models:

How do I find my model number?
