WH03X30517 Washer Shift Actuator For GE / Hotpoint

Original price was: $33.75.Current price is: $23.63.

Free Shipping, Quality Goods

Protecting Your Payment Information

High quality products, low prices.

Online assistance, always at your service.

Replacement shift actuator used for some GE and Hotpoint washer models.

Directly Replaces: WH03X30517, WH05X25036, WH05X24435, 290D1056G001, 4961069, AP7014559, AP16554752, PD00068062, PS16554752.

Features:

Responsible for shifting the transmission from agitate to spin.
Typically used on top-loading washers.

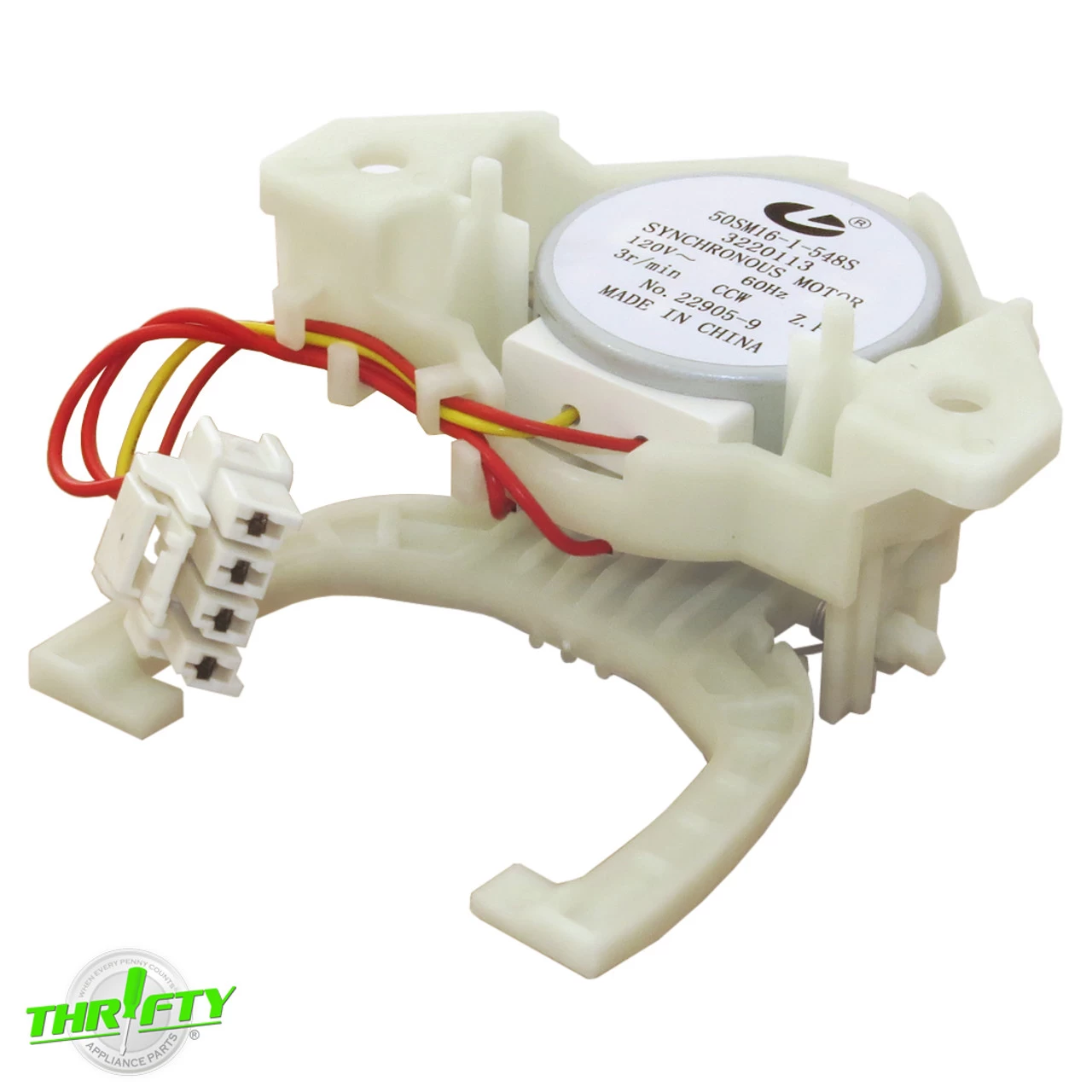

Includes (1) Mode Shift Actuator Assembly with Synchronous Motor, and 4-Wire Harness.

Specifications:

Color: Off-White / Blue / Gray / Multi Colored Harness.
Material: Plastic / Metal.
Finish: Matte.
Electrical Specs: 120V, 60Hz, 4W, 3r/min.
Actuator Dimensions: 4-3/8″L x 4-3/16″W x 2″H.
Additional Dimensions: Harness and plug extends approx. 3″ from actuator while clipped in and 4-3/4″ from actuator when unclipped.
