WH03X30517 WH05X24185 Washer Shift Actuator & Clutch For GE / Hotpoint

Replacement shift actuator and clutch used for some GE and Hotpoint washer models.

Directly Replaces: WH03X30517, WH05X25036, WH05X24435, 290D1056G001, 4961069, AP7014559, AP16554752, PD00068062, PS16554752, WH05X24185, 4588013, AP5993402, EAP11729473, PD00043605, PS11729473.

Features:

• Responsible for shifting the transmission from agitate to spin and the movement of the inner tub, as well as the agitator.
• Typically used on top-loading washers.

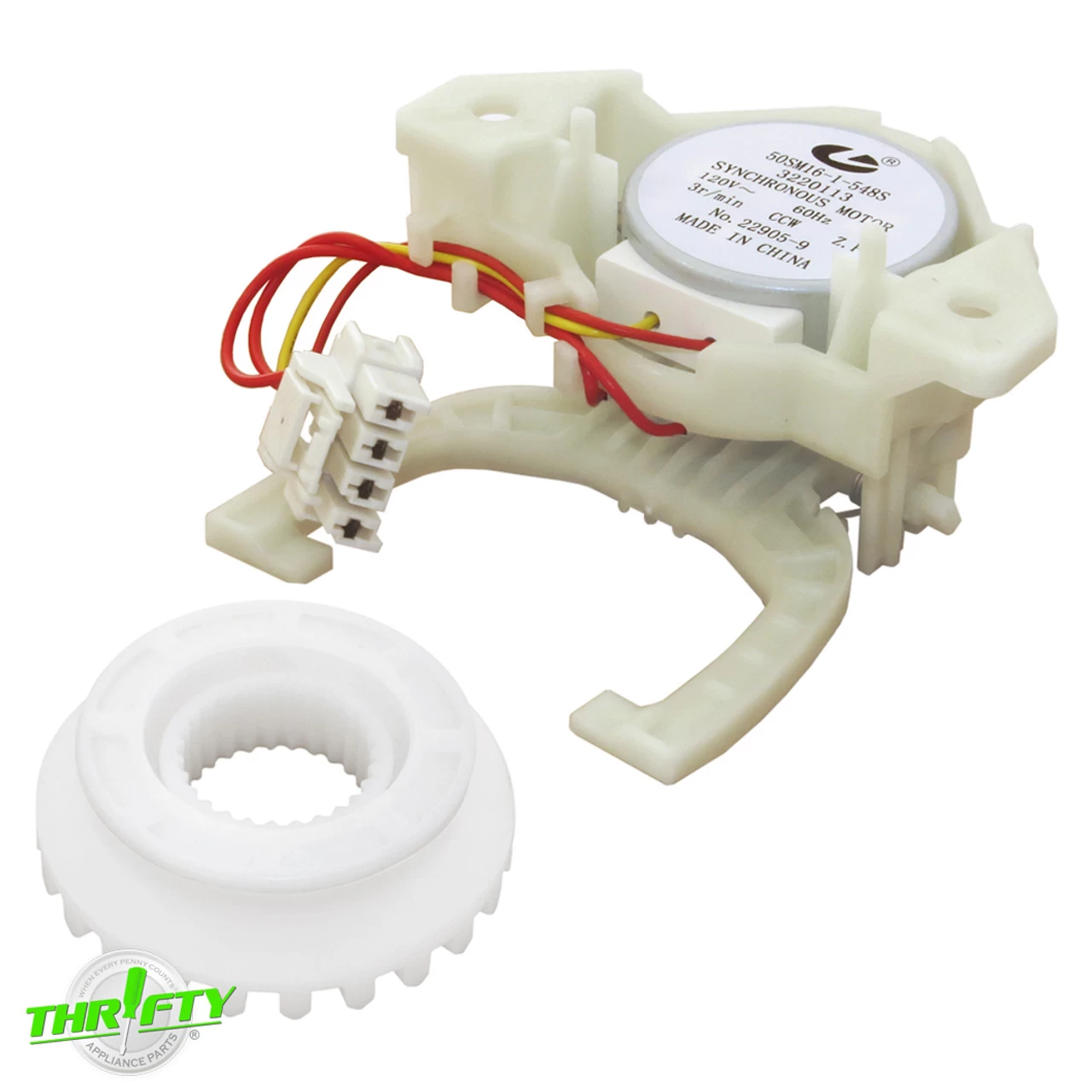

• Includes (1) Shift Clutch, (1) Mode Shift Actuator Assembly with Synchronous Motor, and 4-Wire Harness.

APNWH03X30517 Shift Actuator Specifications:

• Color: Off-White / Blue / Gray / Multi Colored Harness.
• Material: Plastic / Metal.
• Finish: Matte.
• Electrical Specs: 120V, 60Hz, 4W, 3r/min.
• Actuator Dimensions: 4-3/8″L x 4-3/16″W x 2″H.
• Additional Dimensions: Harness and plug extends approx. 3″ from actuator while clipped in and 4-3/4″ from actuator when unclipped.

APNWH05X24185 Shift Clutch Specifications:

• Color: White.
• Material: Plastic.
• Finish: Glossy.
• Dimensions: 3″L x 3″W x 1″H.
