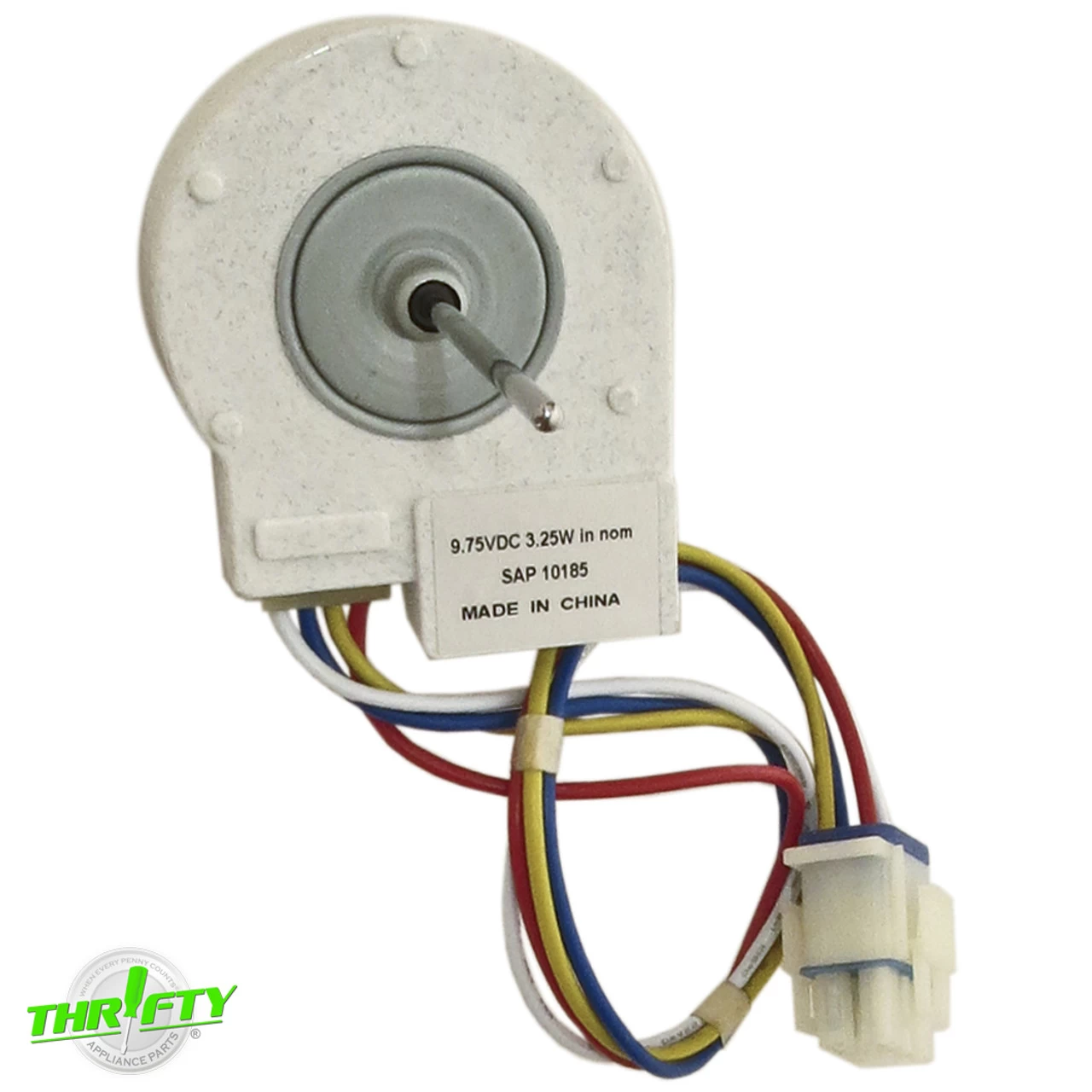

WR60X10185 Refrigerator Evap. Fan Motor For GE / Hotpoint / Americana

Replacement evaporator fan motor used for some Americana, GE, and Hotpoint refrigerator models.

Directly Replaces: WR60X10185, WR60X10154, WR60X10043, WR23X10346, WR23X10350, WR23X10353, WR23X10355, WR23X10364, WR23X10404, WR23X10405, WR23X10406, WR60X10043, WR60X10059, WR60X10068, WR60X10083, WR60X10084, WR60X10099, WR60X10149, WR60X10152, WR60X10154, WR60X10157, SM10185, 197D2039P007, 197D2039P008, 197D2039P013, UDQT26GE4, 1170107, AH1019114, AP3875639, EA1019114, EAP1019114, PD00000986, PS1019114.

Features:

• Pulls air through the evaporator coils to remove heat from the circulating air within the unit.
• DC evaporator fan motor.
• Located in the freezer compartment.
• Includes (1) Evap. Fan Motor and 4-Wire Harness Assembly (has two empty slots in the 6 pin wire connector).

Does not include 2-wire thermistor in the harness assembly. The 6-wire assembly that includes the thermistor requires a different replacement motor assembly.

Specifications:

• Color: Marbled White and Gray.
• Material: Plastic / Metal.
• Electrical Specs: 9.75DC, 3.25W.
• Dimensions: 3″L x 2-3/8″W x 3-3/8″H.
• Additional Dimensions: Harness and plug measure 13 3/4″L.
