WR62X10055 WR17X11653 Refrigerator Dispenser Solenoid & Door For GE / Hotpoint

Replacement ice dispenser solenoid and door used on some GE and Hotpoint refrigerator models.

Directly Replaces: WR62X10055, WR62X10020, WR01F01784, 203C6017G001, 203C6017G003, 1194707, AH1483583, AP3963333, EA1483583, EAP1483583, PD00001143, PS1483583, WR17X11653, WR17X3093, WR17X3492, ERWR17X11653, 1032671, AH964304, AP3672582, EA964304, EAP964304, PD00001157, PS964304.

 Features:

• Controls when the dispenser door opens.

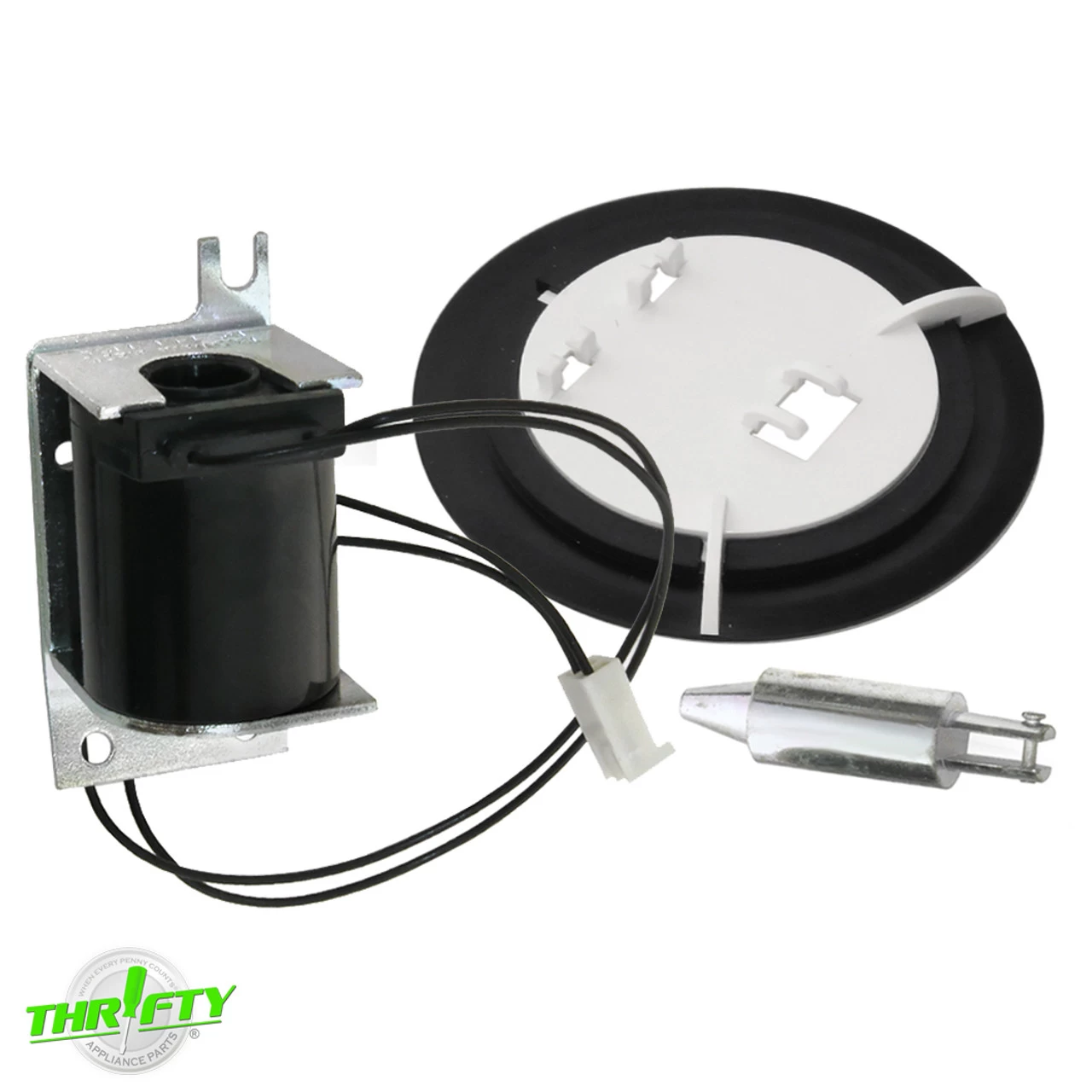

• Includes (1) Dispenser Solenoid Coil with Harness and Bracket, (1) Actuator.; (1) Dispenser Door.

APNWR62X10055 Solenoid Specifications:

• Color: Black / White / Gray.
• Material: Plastic / Metal.
• Electrical Specs: 115V, 1.15A, 60Hz, 13.5W.
• Solenoid & Bracket Dimensions: 1-5/8″L x 1-3/8″W x 2-15/16″H.
• Additional Dimensions: Harness and plug measure 12-3/4″L. Actuator measures 2″L x 1/2″ Diameter.

APNWR17X11653 Dispenser Door Specifications:

• Color: Black / White.
• Material: Plastic / Rubber.
• Dimensions: Approx. 3-3/8″ diameter.

Compatible Models:

How do I find my model number?
